Datasheet ADG1634-KGD (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | 4.5 Ω RON, Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switch |
| 页数 / 页 | 13 / 8 — ADG1634-KGD. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 6. Parameter. … |
| 文件格式/大小 | PDF / 368 Kb |
| 文件语言 | 英语 |

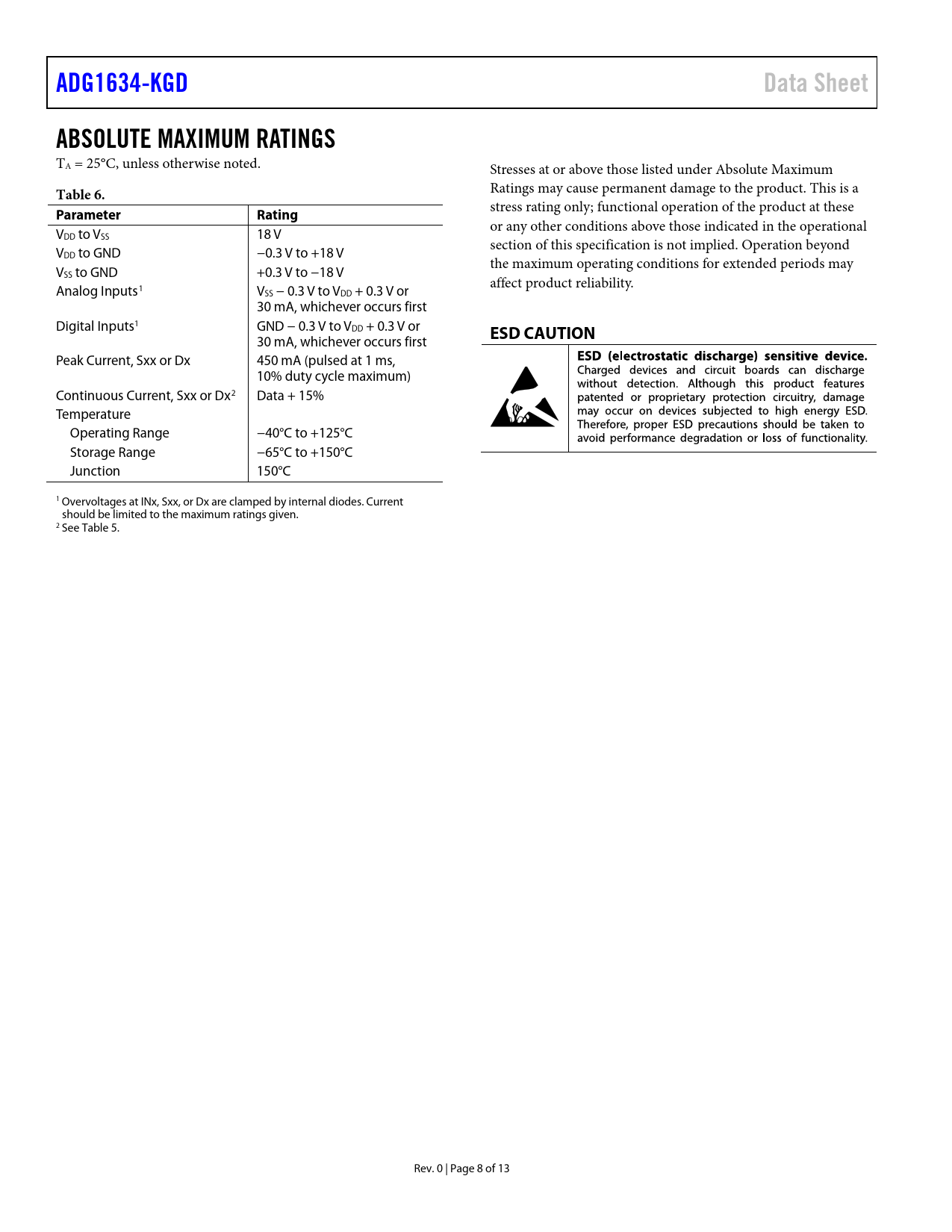

ADG1634-KGD. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 6. Parameter. Rating. ESD CAUTION
该数据表的模型线
文件文字版本
link to page 7
ADG1634-KGD Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 6.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to VSS 18 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +18 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −18 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or
ESD CAUTION
30 mA, whichever occurs first Peak Current, Sxx or Dx 450 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current, Sxx or Dx2 Data + 15% Temperature Operating Range −40°C to +125°C Storage Range −65°C to +150°C Junction 150°C 1 Overvoltages at INx, Sxx, or Dx are clamped by internal diodes. Current should be limited to the maximum ratings given. 2 See Table 5. Rev. 0 | Page 8 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
