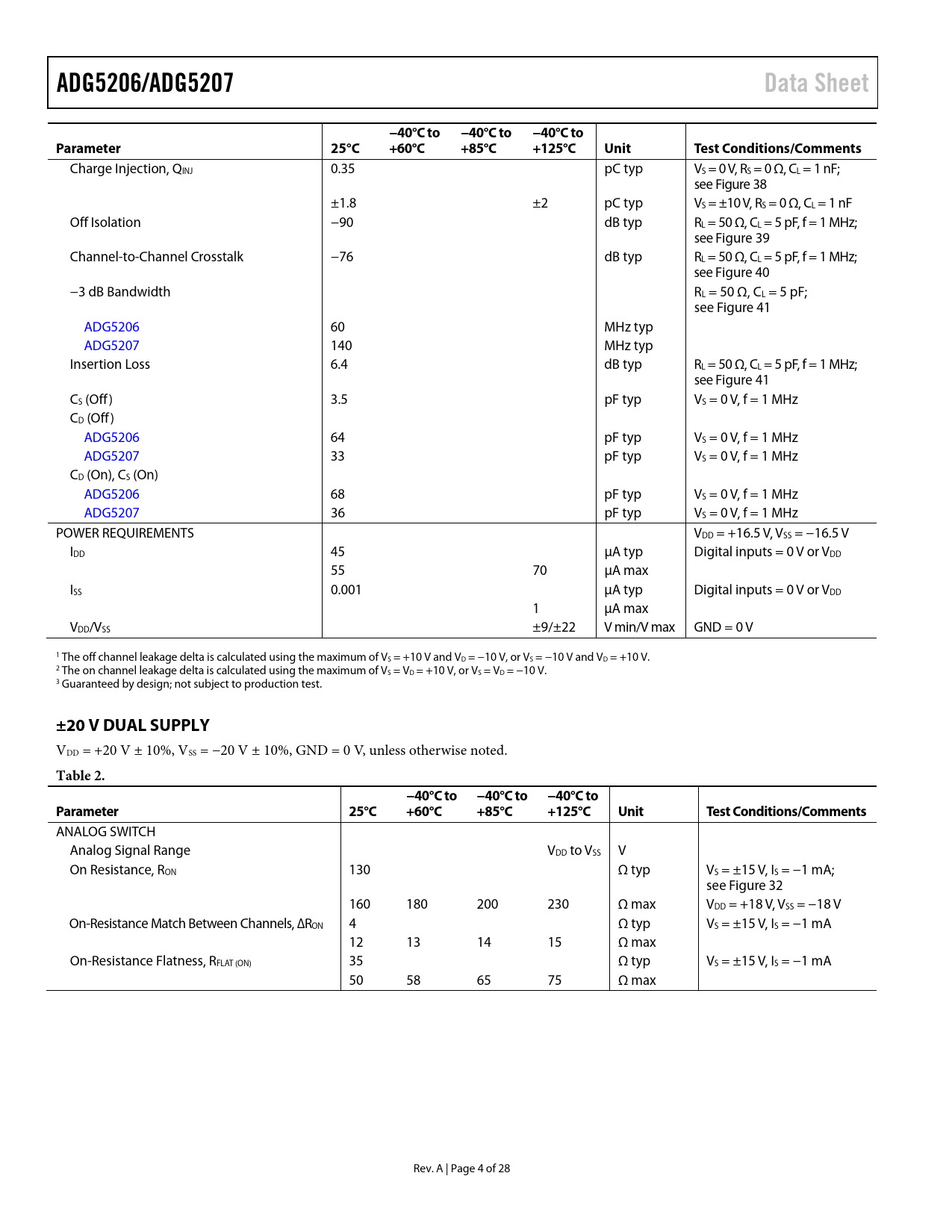

ADG5206/ADG5207 Data Sheet −40°C to −40°C to −40°C to Parameter 25°C +60°C +85°C +125°C Unit Test Conditions/Comments
Charge Injection, QINJ 0.35 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 38 ±1.8 ±2 pC typ VS = ±10 V, RS = 0 Ω, CL = 1 nF Off Isolation −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 39 Channel-to-Channel Crosstalk −76 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 40 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 41 ADG5206 60 MHz typ ADG5207 140 MHz typ Insertion Loss 6.4 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 41 CS (Off) 3.5 pF typ VS = 0 V, f = 1 MHz CD (Off) ADG5206 64 pF typ VS = 0 V, f = 1 MHz ADG5207 33 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) ADG5206 68 pF typ VS = 0 V, f = 1 MHz ADG5207 36 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 45 µA typ Digital inputs = 0 V or VDD 55 70 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 The off channel leakage delta is calculated using the maximum of VS = +10 V and VD = −10 V, or VS = −10 V and VD = +10 V. 2 The on channel leakage delta is calculated using the maximum of VS = VD = +10 V, or VS = VD = −10 V. 3 Guaranteed by design; not subject to production test.
±20 V DUAL SUPPLY
VDD = +20 V ± 10%, VSS = −20 V ± 10%, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to −40°C to Parameter 25°C +60°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 130 Ω typ VS = ±15 V, IS = −1 mA; see Figure 32 160 180 200 230 Ω max VDD = +18 V, VSS = −18 V On-Resistance Match Between Channels, ∆RON 4 Ω typ VS = ±15 V, IS = −1 mA 12 13 14 15 Ω max On-Resistance Flatness, RFLAT (ON) 35 Ω typ VS = ±15 V, IS = −1 mA 50 58 65 75 Ω max Rev. A | Page 4 of 28 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Trench Isolation Outline Dimensions Ordering Guide
