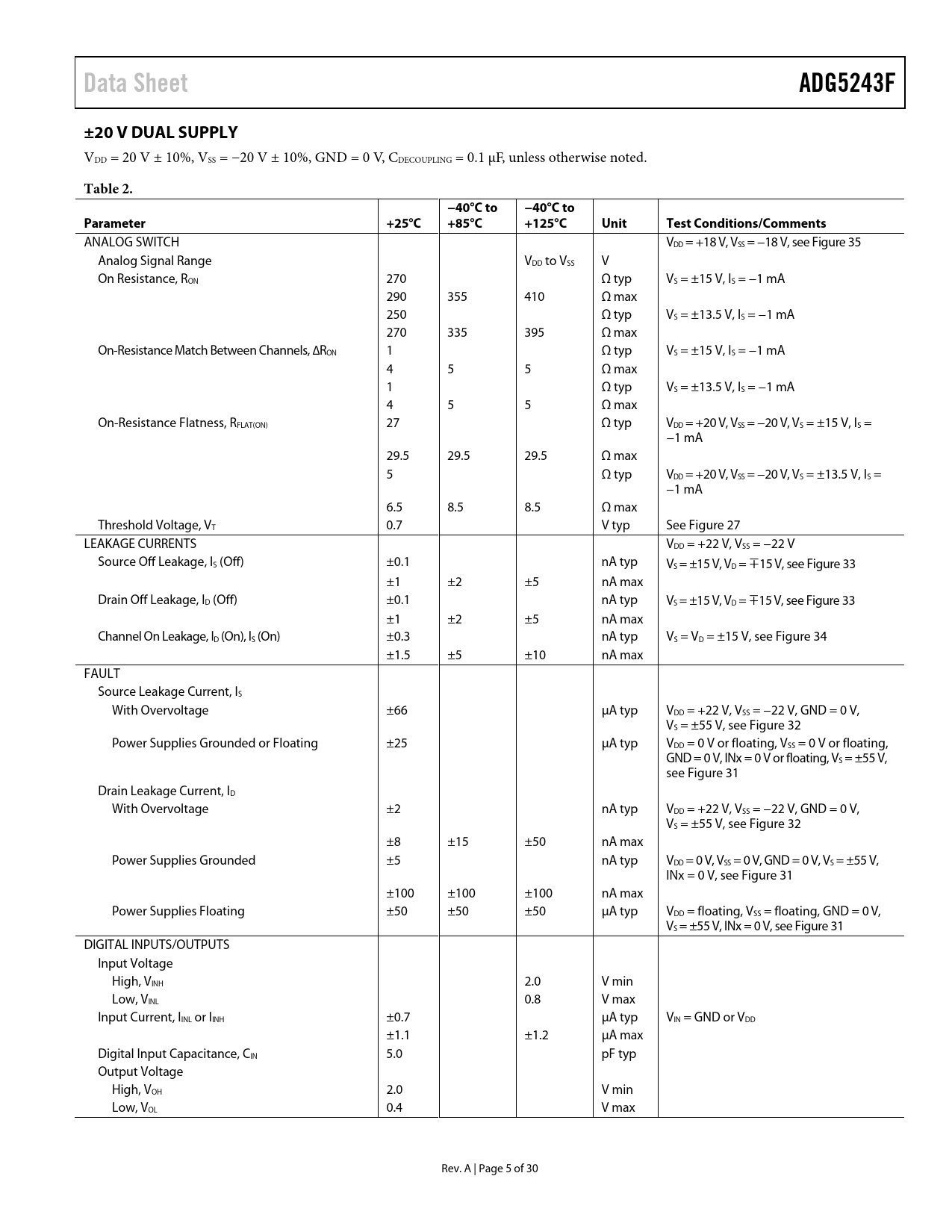

Data Sheet ADG5243F ±20 V DUAL SUPPLY
VDD = 20 V ± 10%, VSS = −20 V ± 10%, GND = 0 V, CDECOUPLING = 0.1 µF, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = +18 V, VSS = −18 V, see Figure 35 Analog Signal Range VDD to VSS V On Resistance, RON 270 Ω typ VS = ±15 V, IS = −1 mA 290 355 410 Ω max 250 Ω typ VS = ±13.5 V, IS = −1 mA 270 335 395 Ω max On-Resistance Match Between Channels, ∆RON 1 Ω typ VS = ±15 V, IS = −1 mA 4 5 5 Ω max 1 Ω typ VS = ±13.5 V, IS = −1 mA 4 5 5 Ω max On-Resistance Flatness, RFLAT(ON) 27 Ω typ VDD = +20 V, VSS = −20 V, VS = ±15 V, IS = −1 mA 29.5 29.5 29.5 Ω max 5 Ω typ VDD = +20 V, VSS = −20 V, VS = ±13.5 V, IS = −1 mA 6.5 8.5 8.5 Ω max Threshold Voltage, VT 0.7 V typ See Figure 27 LEAKAGE CURRENTS VDD = +22 V, VSS = −22 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±15 V, VD = ∓15 V, see Figure 33 ±1 ±2 ±5 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = ±15 V, VD = ∓15 V, see Figure 33 ±1 ±2 ±5 nA max Channel On Leakage, ID (On), IS (On) ±0.3 nA typ VS = VD = ±15 V, see Figure 34 ±1.5 ±5 ±10 nA max FAULT Source Leakage Current, IS With Overvoltage ±66 µA typ VDD = +22 V, VSS = −22 V, GND = 0 V, VS = ±55 V, see Figure 32 Power Supplies Grounded or Floating ±25 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V, INx = 0 V or floating, VS = ±55 V, see Figure 31 Drain Leakage Current, ID With Overvoltage ±2 nA typ VDD = +22 V, VSS = −22 V, GND = 0 V, VS = ±55 V, see Figure 32 ±8 ±15 ±50 nA max Power Supplies Grounded ±5 nA typ VDD = 0 V, VSS = 0 V, GND = 0 V, VS = ±55 V, INx = 0 V, see Figure 31 ±100 ±100 ±100 nA max Power Supplies Floating ±50 ±50 ±50 µA typ VDD = floating, VSS = floating, GND = 0 V, VS = ±55 V, INx = 0 V, see Figure 31 DIGITAL INPUTS/OUTPUTS Input Voltage High, VINH 2.0 V min Low, VINL 0.8 V max Input Current, IINL or IINH ±0.7 µA typ VIN = GND or VDD ±1.1 ±1.2 µA max Digital Input Capacitance, CIN 5.0 pF typ Output Voltage High, VOH 2.0 V min Low, VOL 0.4 V max Rev. A | Page 5 of 30 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation USER DEFINED FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE POWER SUPPLY RECOMMENDATIONS HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
