S1A~S1M. Part No_packing code_Version. S1A_R1_00001. S1A_R2_00001 For example :. RB500V-40_R2_00001. Serial number
该数据表的模型线
文件文字版本

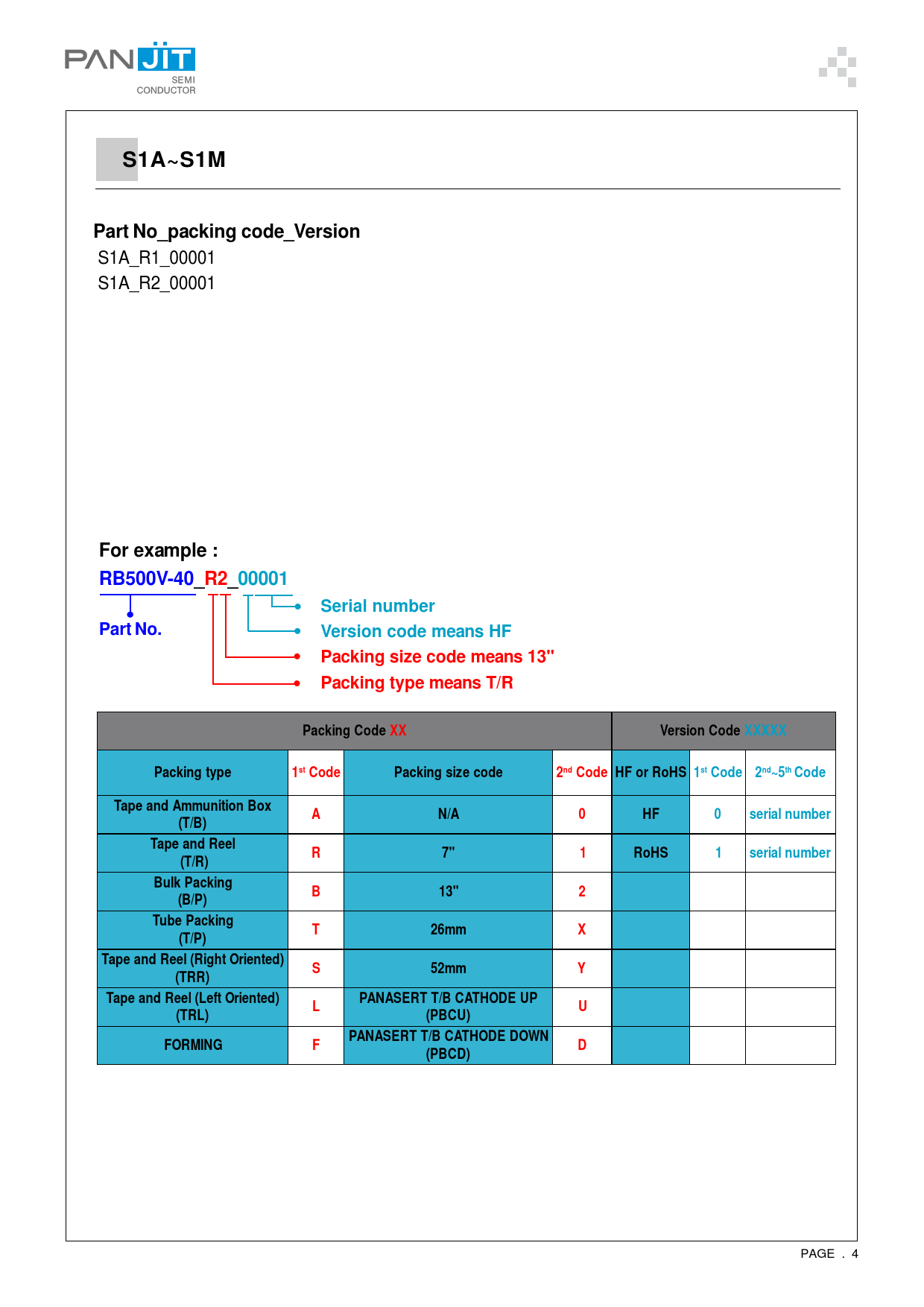

S1A~S1M
Part No_packing code_Version
S1A_R1_00001
S1A_R2_00001 For example :
RB500V-40_R2_00001
Serial number
Version code means HF Part No. Packing size code means 13"
Packing type means T/R
Packing Code XX
Packing type
Tape and Ammunition Box
(T/B)
Tape and Reel
(T/R)
Bulk Packing
(B/P)
Tube Packing
(T/P)
Tape and Reel (Right Oriented)
(TRR)
Tape and Reel (Left Oriented)
(TRL)
FORMING May 2,2018REV.07 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L
F PANASERT T/B CATHODE UP
(PBCU)
PANASERT T/B CATHODE DOWN
(PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U
D PAGE . 4
