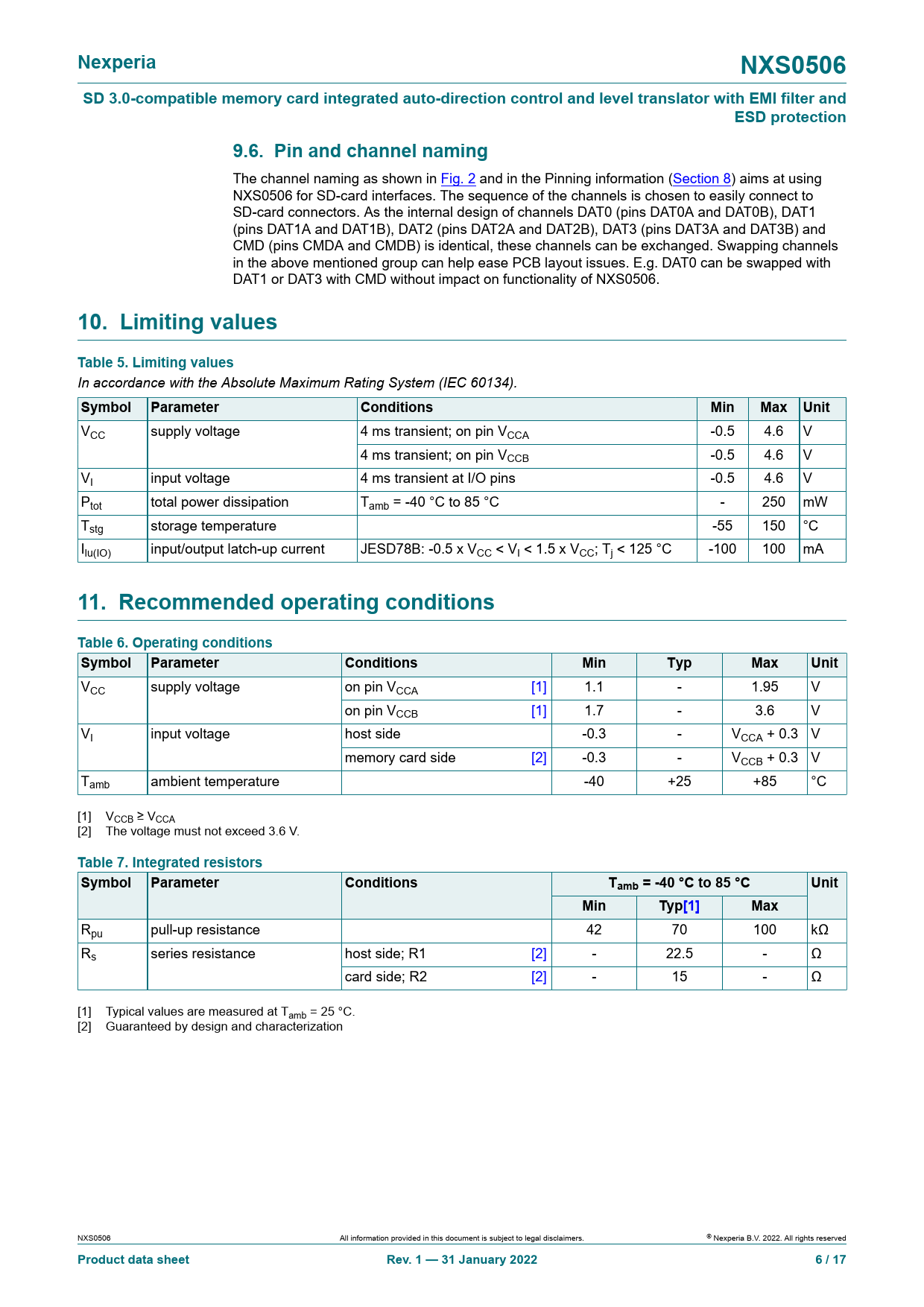

Nexperia NXS0506 SD 3.0-compatible memory card integrated auto-direction control and level translator with EMI filter and ESD protection 9.6. Pin and channel naming
The channel naming as shown in Fig. 2 and in the Pinning information (Section 8) aims at using NXS0506 for SD-card interfaces. The sequence of the channels is chosen to easily connect to SD-card connectors. As the internal design of channels DAT0 (pins DAT0A and DAT0B), DAT1 (pins DAT1A and DAT1B), DAT2 (pins DAT2A and DAT2B), DAT3 (pins DAT3A and DAT3B) and CMD (pins CMDA and CMDB) is identical, these channels can be exchanged. Swapping channels in the above mentioned group can help ease PCB layout issues. E.g. DAT0 can be swapped with DAT1 or DAT3 with CMD without impact on functionality of NXS0506.
10. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VCC supply voltage 4 ms transient; on pin VCCA -0.5 4.6 V 4 ms transient; on pin VCCB -0.5 4.6 V VI input voltage 4 ms transient at I/O pins -0.5 4.6 V Ptot total power dissipation Tamb = -40 °C to 85 °C - 250 mW Tstg storage temperature -55 150 °C Ilu(IO) input/output latch-up current JESD78B: -0.5 x VCC < VI < 1.5 x VCC; Tj < 125 °C -100 100 mA
11. Recommended operating conditions Table 6. Operating conditions Symbol Parameter Conditions Min Typ Max Unit
VCC supply voltage on pin VCCA [1] 1.1 - 1.95 V on pin VCCB [1] 1.7 - 3.6 V VI input voltage host side -0.3 - VCCA + 0.3 V memory card side [2] -0.3 - VCCB + 0.3 V Tamb ambient temperature -40 +25 +85 °C [1] VCCB ≥ VCCA [2] The voltage must not exceed 3.6 V.
Table 7. Integrated resistors Symbol Parameter Conditions Tamb = -40 °C to 85 °C Unit Min Typ[1] Max
Rpu pull-up resistance 42 70 100 kΩ Rs series resistance host side; R1 [2] - 22.5 - Ω card side; R2 [2] - 15 - Ω [1] Typical values are measured at Tamb = 25 °C. [2] Guaranteed by design and characterization NXS0506 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 1 — 31 January 2022 6 / 17
