Datasheet TIP140, TIP141, TIP142, TIP145, TIP146, TIP147 (STMicroelectronics)
| 制造商 | STMicroelectronics |
| 描述 | COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS |
| 页数 / 页 | 4 / 1 — TIP140/141/142. TIP145/146/147. APPLICATIONS. TO-218. DESCRIPTION. … |
| 文件格式/大小 | PDF / 56 Kb |
| 文件语言 | 英语 |
TIP140/141/142. TIP145/146/147. APPLICATIONS. TO-218. DESCRIPTION. INTERNAL SCHEMATIC DIAGRAM. ABSOLUTE MAXIMUM RATINGS. Symbol
该数据表的模型线
文件文字版本

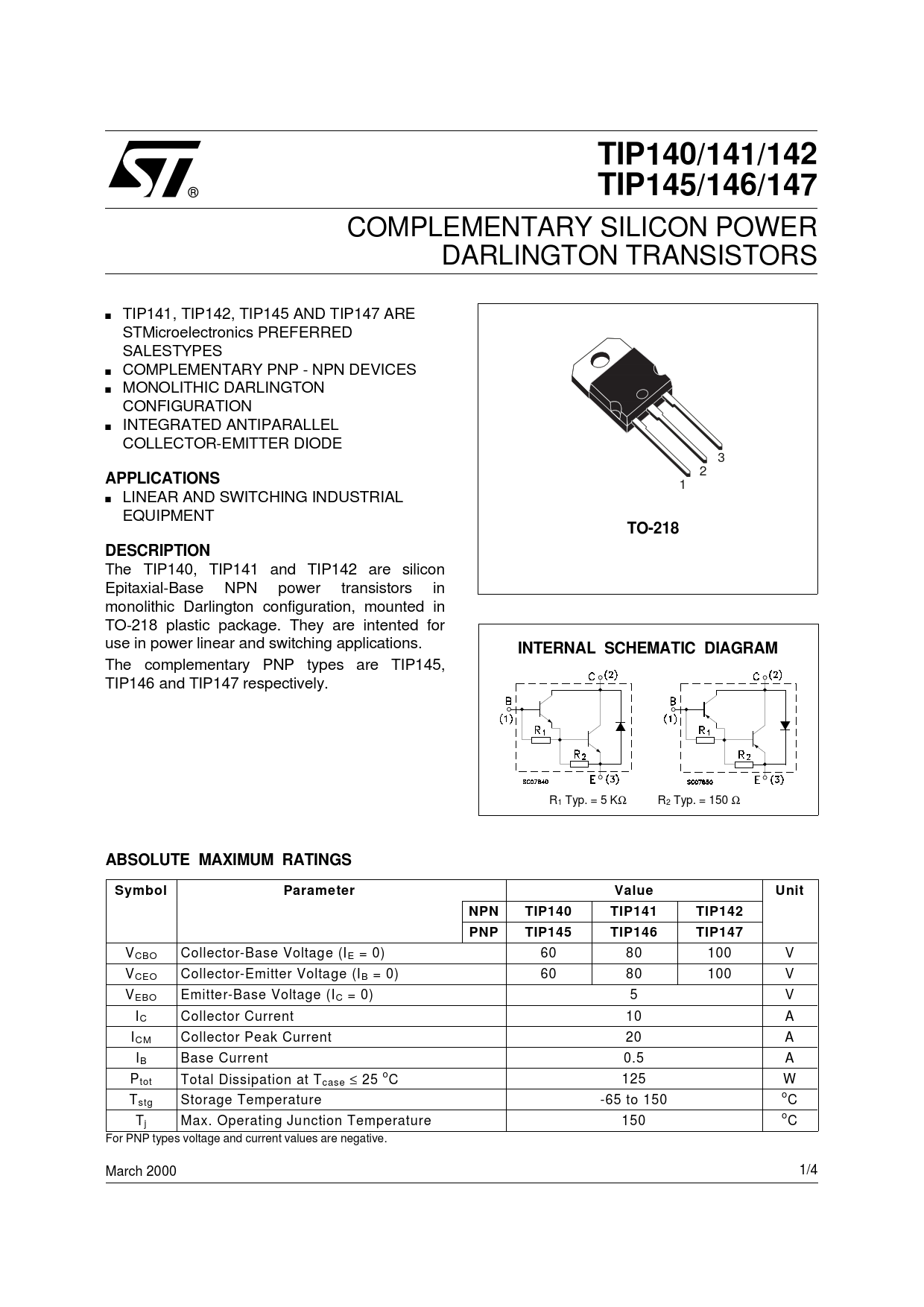

TIP140/141/142
®
TIP145/146/147
COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS ■ TIP141, TIP142, TIP145 AND TIP147 ARE STMicroelectronics PREFERRED SALESTYPES ■ COMPLEMENTARY PNP - NPN DEVICES ■ MONOLITHIC DARLINGTON CONFIGURATION ■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE 3 2
APPLICATIONS
1 ■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT
TO-218 DESCRIPTION
The TIP140, TIP141 and TIP142 are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration, mounted in TO-218 plastic package. They are intented for use in power linear and switching applications.
INTERNAL SCHEMATIC DIAGRAM
The complementary PNP types are TIP145, TIP146 and TIP147 respectively. R1 Typ. = 5 KΩ R2 Typ. = 150 Ω
ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit NPN TIP140 TIP141 TIP142 PNP TIP145 TIP146 TIP147
VCBO Collector-Base Voltage (IE = 0) 60 80 100 V VCEO Collector-Emitter Voltage (IB = 0) 60 80 100 V VEBO Emitter-Base Voltage (IC = 0) 5 V IC Collector Current 10 A ICM Collector Peak Current 20 A IB Base Current 0.5 A Ptot Total Dissipation at Tcase ≤ 25 oC 125 W Tstg Storage Temperature -65 to 150 oC Tj Max. Operating Junction Temperature 150 oC For PNP types voltage and current values are negative. March 2000 1/4
®
TIP145/146/147
COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS ■ TIP141, TIP142, TIP145 AND TIP147 ARE STMicroelectronics PREFERRED SALESTYPES ■ COMPLEMENTARY PNP - NPN DEVICES ■ MONOLITHIC DARLINGTON CONFIGURATION ■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE 3 2
APPLICATIONS
1 ■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT
TO-218 DESCRIPTION
The TIP140, TIP141 and TIP142 are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration, mounted in TO-218 plastic package. They are intented for use in power linear and switching applications.
INTERNAL SCHEMATIC DIAGRAM
The complementary PNP types are TIP145, TIP146 and TIP147 respectively. R1 Typ. = 5 KΩ R2 Typ. = 150 Ω
ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit NPN TIP140 TIP141 TIP142 PNP TIP145 TIP146 TIP147
VCBO Collector-Base Voltage (IE = 0) 60 80 100 V VCEO Collector-Emitter Voltage (IB = 0) 60 80 100 V VEBO Emitter-Base Voltage (IC = 0) 5 V IC Collector Current 10 A ICM Collector Peak Current 20 A IB Base Current 0.5 A Ptot Total Dissipation at Tcase ≤ 25 oC 125 W Tstg Storage Temperature -65 to 150 oC Tj Max. Operating Junction Temperature 150 oC For PNP types voltage and current values are negative. March 2000 1/4
