Datasheet CBR4F, CBR4MF, CBR6F, CBR6MF, CBR8MF (Central Semiconductor)

制造商Central Semiconductor
描述Bridge Rectifiers, Fast Recovery
页数 / 页4 / 1 — Bridge. Rectifiers,. Fast. Recovery. (Continued). IO. (AMPS). 4.0. 6.0. …
文件格式/大小PDF / 287 Kb
文件语言英语

Bridge. Rectifiers,. Fast. Recovery. (Continued). IO. (AMPS). 4.0. 6.0. 8.0. @TA. (oC). 50. 4.0. @. 25. 50. 50. 50. @TC. (oC). 8.0. @. 100. 100. 50. 100. IFSM. (AMPS). 200. 300. 150

Datasheet CBR4F, CBR4MF, CBR6F, CBR6MF, CBR8MF Central Semiconductor

该数据表的模型线

文件文字版本

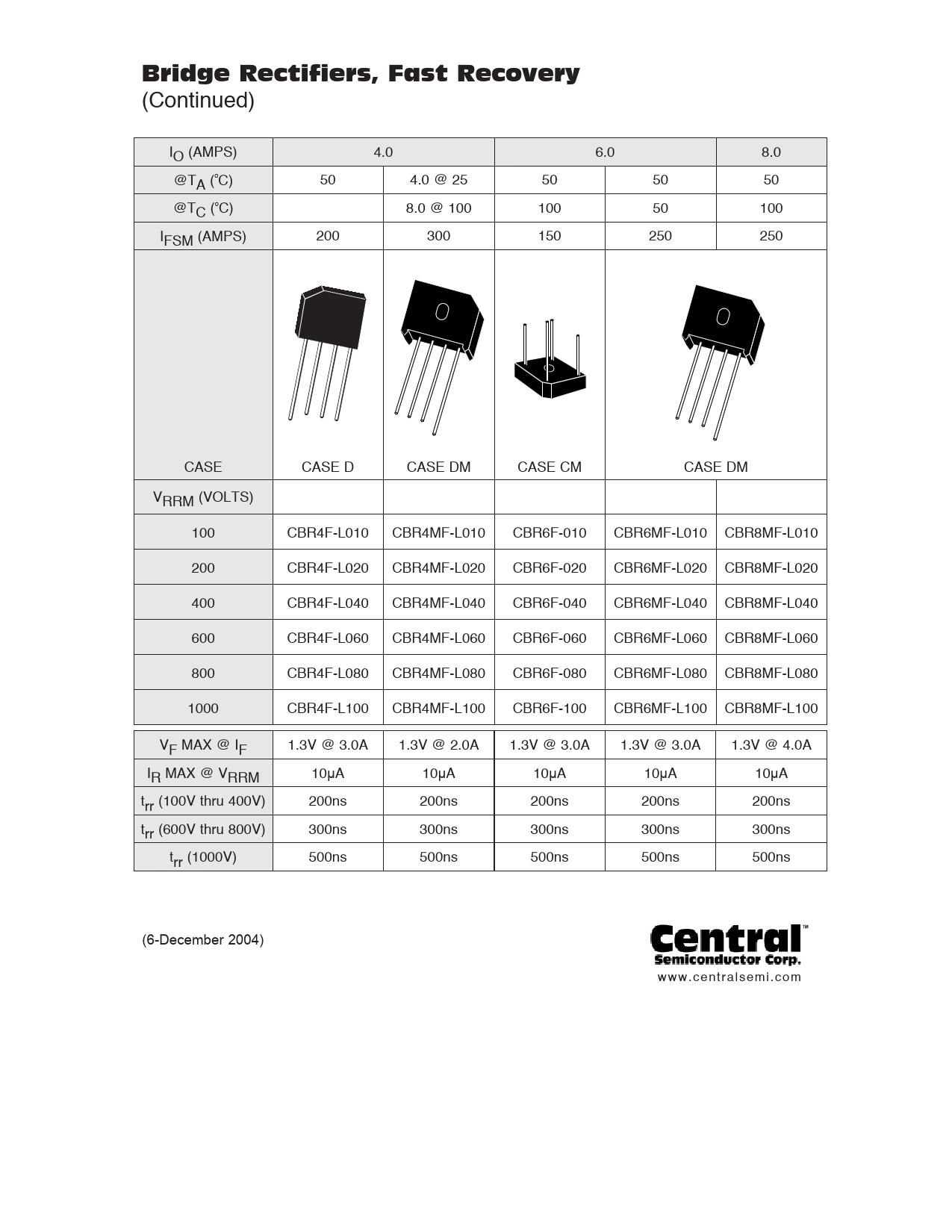

Bridge Rectifiers, Fast Recovery (Continued) IO (AMPS) 4.0 6.0 8.0 @TA (oC) 50 4.0 @ 25 50 50 50 @TC (oC) 8.0 @ 100 100 50 100 IFSM (AMPS) 200 300 150 250 250 CASE CASE D CASE DM CASE CM CASE DM VRRM (VOLTS) 100 CBR4F-L010 CBR4MF-L010 CBR6F-010 CBR6MF-L010 CBR8MF-L010 200 CBR4F-L020 CBR4MF-L020 CBR6F-020 CBR6MF-L020 CBR8MF-L020 400 CBR4F-L040 CBR4MF-L040 CBR6F-040 CBR6MF-L040 CBR8MF-L040 600 CBR4F-L060 CBR4MF-L060 CBR6F-060 CBR6MF-L060 CBR8MF-L060 800 CBR4F-L080 CBR4MF-L080 CBR6F-080 CBR6MF-L080 CBR8MF-L080 1000 CBR4F-L100 CBR4MF-L100 CBR6F-100 CBR6MF-L100 CBR8MF-L100 VF MAX @ IF 1.3V @ 3.0A 1.3V @ 2.0A 1.3V @ 3.0A 1.3V @ 3.0A 1.3V @ 4.0A IR MAX @ VRRM 10μA 10μA 10μA 10μA 10μA trr (100V thru 400V) 200ns 200ns 200ns 200ns 200ns trr (600V thru 800V) 300ns 300ns 300ns 300ns 300ns trr (1000V) 500ns 500ns 500ns 500ns 500ns (6-December 2004) w w w . c e n t r a l s e m i . c o m
