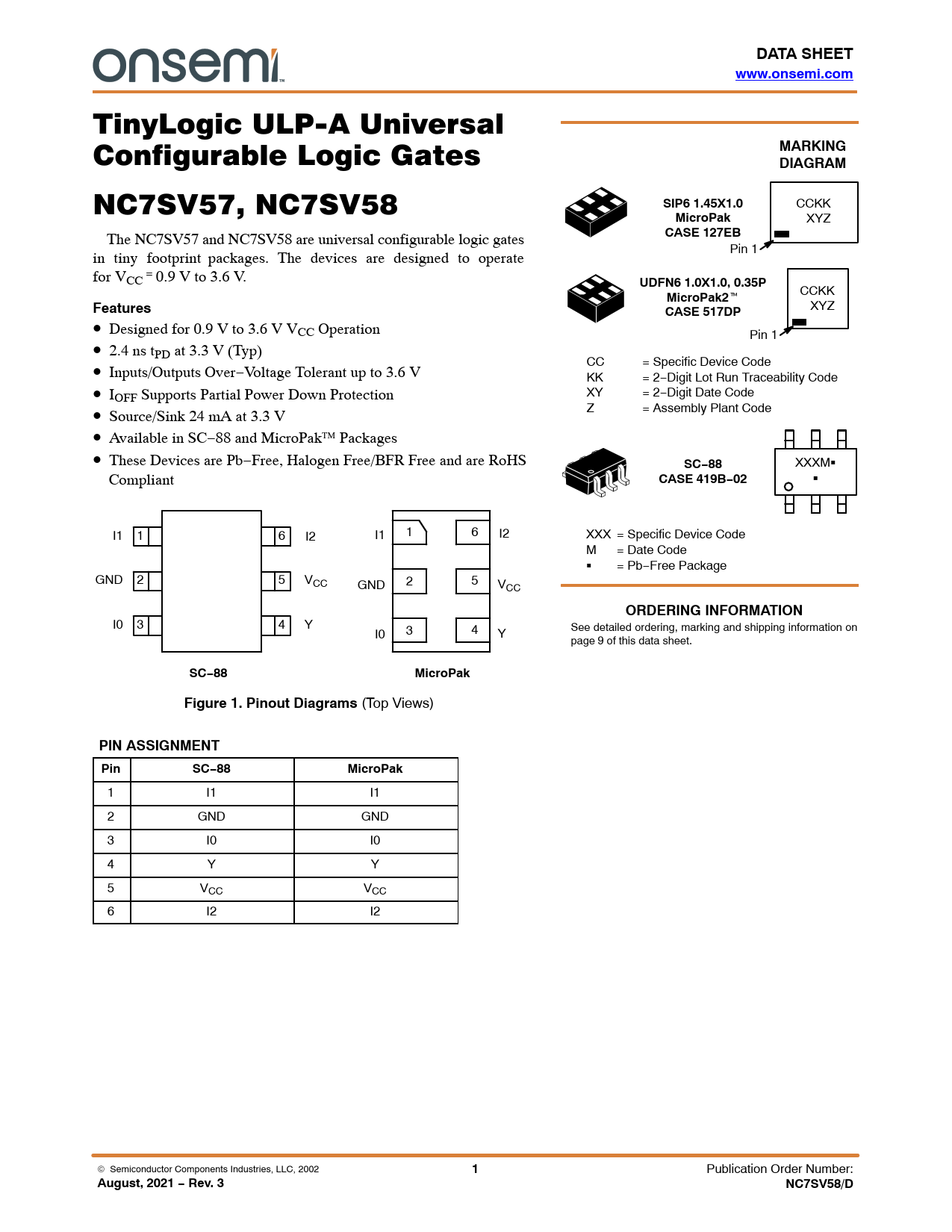

DATA SHEET www.onsemi.com
TinyLogic ULP-A Universal Configurable Logic Gates
MARKING DIAGRAM
NC7SV57, NC7SV58
SIP6 1.45X1.0
CCKK
MicroPak
XYZ The NC7SV57 and NC7SV58 are universal configurable logic gates
CASE 127EB
in tiny footprint Pin 1 packages. The devices are designed to operate for V = CC 0.9 V to 3.6 V.
UDFN6 1.0X1.0, 0.35P MicroPak2
t CCKK
Features CASE 517DP
XYZ • Designed for 0.9 V to 3.6 V VCC Operation Pin 1 • 2.4 ns tPD at 3.3 V (Typ) • CC = Specific Device Code Inputs/Outputs Over−Voltage Tolerant up to 3.6 V KK = 2−Digit Lot Run Traceability Code • IOFF Supports Partial Power Down Protection XY = 2−Digit Date Code • Source/Sink 24 mA at 3.3 V Z = Assembly Plant Code • Available in SC−88 and MicroPak™ Packages • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
SC−88
XXXMG Compliant
CASE 419B−02
G I1 1 6 I2 I1 1 6 I2 XXX = Specific Device Code M = Date Code G = Pb−Free Package GND 2 5 VCC 2 5 GND VCC
ORDERING INFORMATION
I0 3 4 Y 3 4 I0 Y See detailed ordering, marking and shipping information on page 9 of this data sheet.
SC−88 MicroPak Figure 1. Pinout Diagrams
(Top Views)
PIN ASSIGNMENT Pin SC−88 MicroPak
1 I1 I1 2 GND GND 3 I0 I0 4 Y Y 5 VCC VCC 6 I2 I2 © Semiconductor Components Industries, LLC, 2002
1
Publication Order Number:
August, 2021 − Rev. 3 NC7SV58/D
