Datasheet MC10EL16, MC100EL16 (ON Semiconductor) - 8
| 制造商 | ON Semiconductor |
| 描述 | 5.0 V ECL Differential Receiver |
| 页数 / 页 | 9 / 8 — PACKAGE DIMENSIONS. TSSOP 8. CASE 948R−02. ISSUE A. DATE 04/07/2000. … |
| 修订版 | 10 |
| 文件格式/大小 | PDF / 258 Kb |
| 文件语言 | 英语 |
PACKAGE DIMENSIONS. TSSOP 8. CASE 948R−02. ISSUE A. DATE 04/07/2000. SCALE 2:1. 8x REF. 2X L/2. −U−. PIN 1. IDENT. −V−. DETAIL E. MILLIMETERS
该数据表的模型线
文件文字版本

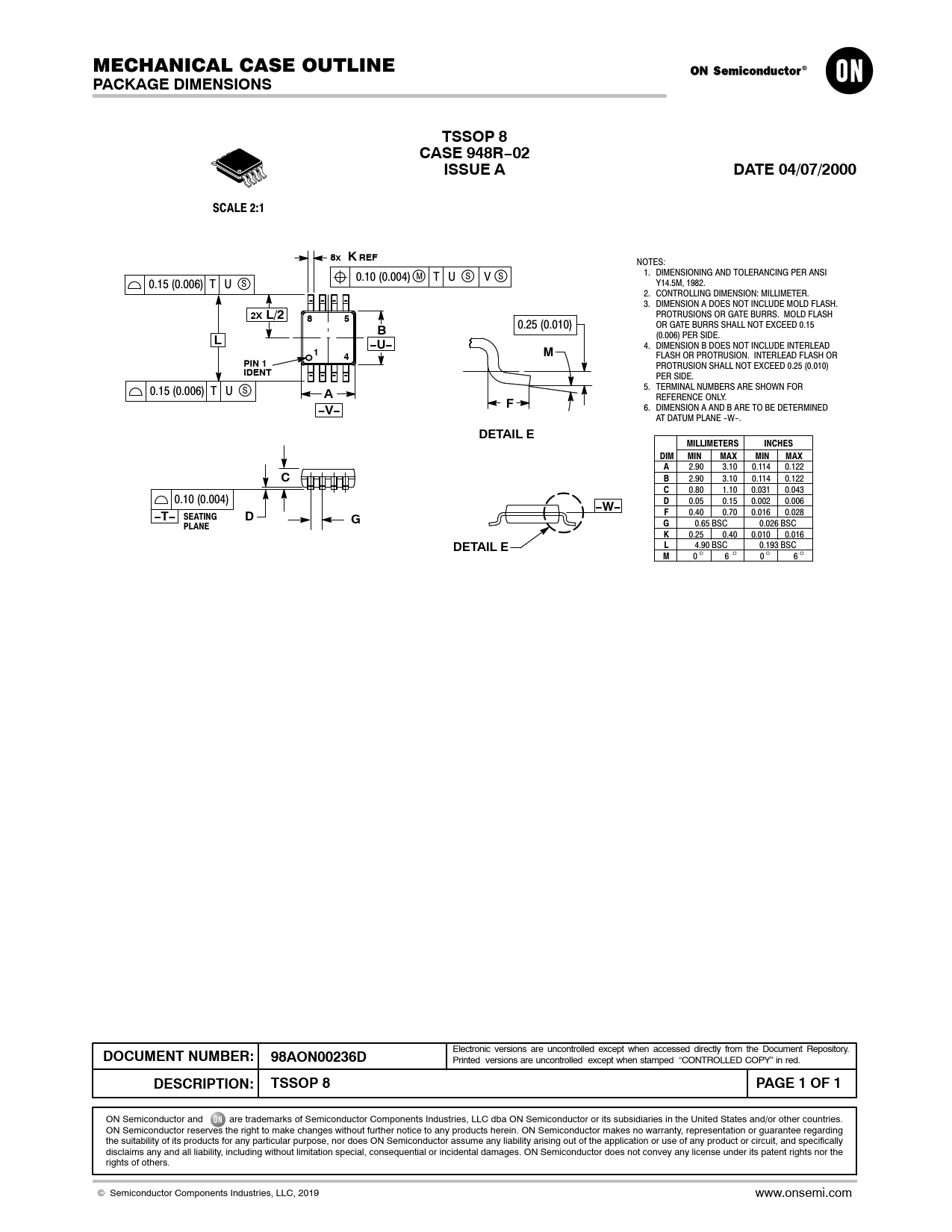

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS TSSOP 8 CASE 948R−02 ISSUE A DATE 04/07/2000 SCALE 2:1 8x REF K
NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI 0.10 (0.004) M T U S V S 0.15 (0.006) T U S Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSION A DOES NOT INCLUDE MOLD FLASH.
2X L/2
PROTRUSIONS OR GATE BURRS. MOLD FLASH
8 5
0.25 (0.010) OR GATE BURRS SHALL NOT EXCEED 0.15
B
(0.006) PER SIDE.
L −U−
4. DIMENSION B DOES NOT INCLUDE INTERLEAD
1 4 M
FLASH OR PROTRUSION. INTERLEAD FLASH OR
PIN 1
PROTRUSION SHALL NOT EXCEED 0.25 (0.010)
IDENT
PER SIDE. 5. TERMINAL NUMBERS ARE SHOWN FOR 0.15 (0.006) T U S
A
REFERENCE ONLY.
F
6. DIMENSION A AND B ARE TO BE DETERMINED
−V−
AT DATUM PLANE -W-.
DETAIL E MILLIMETERS INCHES DIM MIN MAX MIN MAX A
2.90 3.10 0.114 0.122
C B
2.90 3.10 0.114 0.122
C
0.80 1.10 0.031 0.043 0.10 (0.004)
D
0.05 0.15 0.002 0.006
−W− F
0.40 0.70 0.016 0.028
−T− SEATING D G G
0.65 BSC 0.026 BSC
PLANE K
0.25 0.40 0.010 0.016
L
4.90 BSC 0.193 BSC
DETAIL E M
0 6 0 6 _ _ _ _
DOCUMENT NUMBER: 98AON00236D
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: TSSOP 8 PAGE 1 OF 1
ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com
