| 制造商 | Diodes |
| 描述 | 40V Surface Mount Schottky Barrier Diode |
| 页数 / 页 | 6 / 2 — ZHCS400. Maximum Ratings. Characteristic Symbol. Value. Units. Thermal … |
| 文件格式/大小 | PDF / 164 Kb |
| 文件语言 | 英语 |

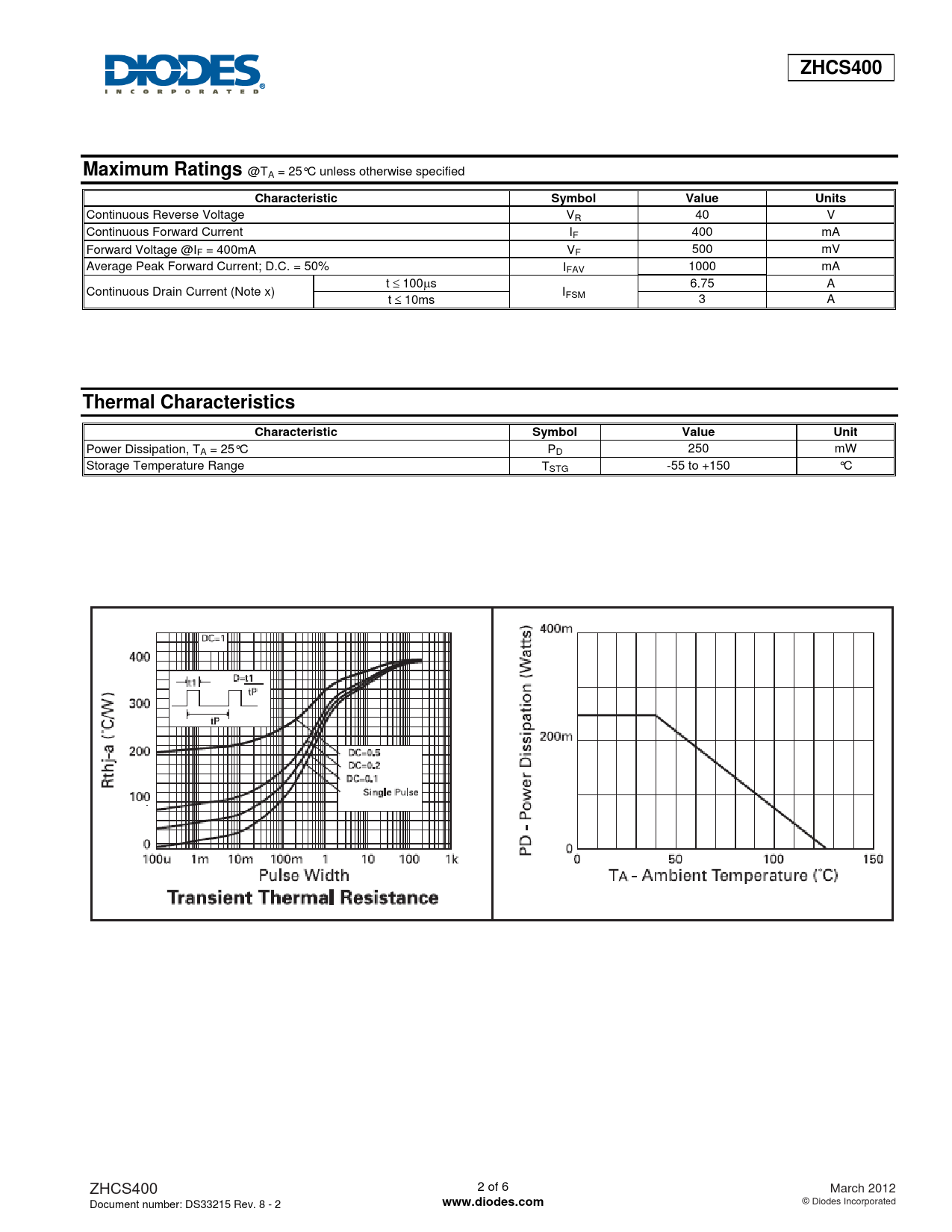

ZHCS400. Maximum Ratings. Characteristic Symbol. Value. Units. Thermal Characteristics. Unit. www.diodes.com
该数据表的模型线
文件文字版本
ZHCS400 Maximum Ratings
@TA = 25°C unless otherwise specified
Characteristic Symbol Value Units
Continuous Reverse Voltage VR 40 V Continuous Forward Current IF 400 mA Forward Voltage @IF = 400mA VF 500 mV Average Peak Forward Current; D.C. = 50% IFAV 1000 mA t ≤ 100μs 6.75 A Continuous Drain Current (Note x) IFSM t ≤ 10ms 3 A
Thermal Characteristics Characteristic Symbol Value Unit
Power Dissipation, TA = 25°C PD 250 mW Storage Temperature Range TSTG -55 to +150 °C ZHCS400 2 of 6 March 2012 Document number: DS33215 Rev. 8 - 2
www.diodes.com
© Diodes Incorporated
@TA = 25°C unless otherwise specified
Characteristic Symbol Value Units
Continuous Reverse Voltage VR 40 V Continuous Forward Current IF 400 mA Forward Voltage @IF = 400mA VF 500 mV Average Peak Forward Current; D.C. = 50% IFAV 1000 mA t ≤ 100μs 6.75 A Continuous Drain Current (Note x) IFSM t ≤ 10ms 3 A
Thermal Characteristics Characteristic Symbol Value Unit
Power Dissipation, TA = 25°C PD 250 mW Storage Temperature Range TSTG -55 to +150 °C ZHCS400 2 of 6 March 2012 Document number: DS33215 Rev. 8 - 2
