Datasheet STL200N45LF7 (STMicroelectronics) - 7
| 制造商 | STMicroelectronics |
| 描述 | N-channel 45 V, 1.4 mOhm typ., 120 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package |
| 页数 / 页 | 14 / 7 — STL200N45LF7. Electrical characteristics. Figure 9: Normalized gate … |
| 文件格式/大小 | PDF / 910 Kb |
| 文件语言 | 英语 |

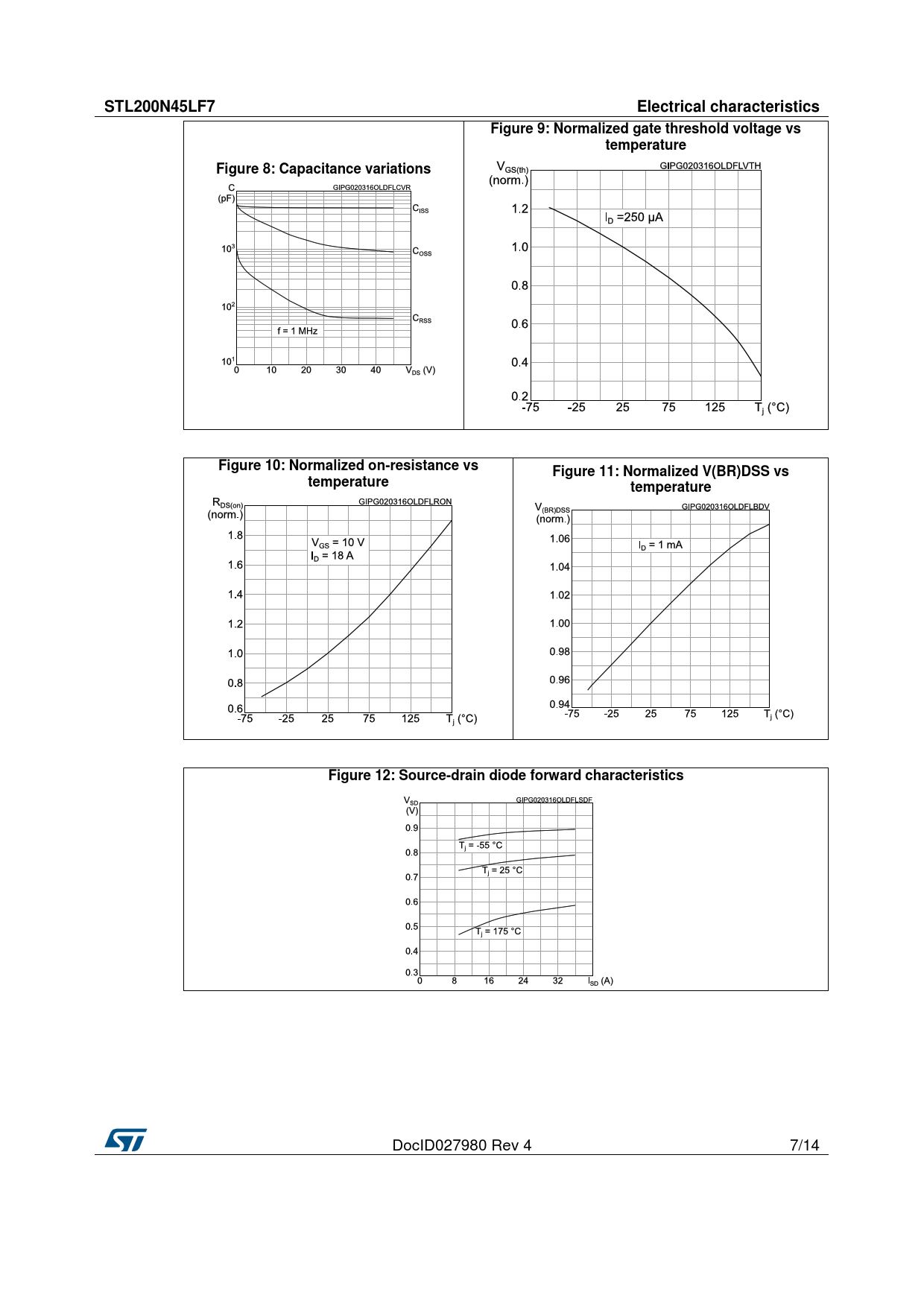

STL200N45LF7. Electrical characteristics. Figure 9: Normalized gate threshold voltage vs. temperature
该数据表的模型线
文件文字版本
STL200N45LF7 Electrical characteristics Figure 9: Normalized gate threshold voltage vs temperature Figure 8: Capacitance variations Figure 10: Normalized on-resistance vs Figure 11: Normalized V(BR)DSS vs temperature temperature Figure 12: Source-drain diode forward characteristics
DocID027980 Rev 4 7/14
DocID027980 Rev 4 7/14
