Datasheet L99VR01 (STMicroelectronics) - 5
| 制造商 | STMicroelectronics |
| 描述 | Automotive Linear Voltage Regulator with Configurable Output Voltage having 200mA current capability |
| 页数 / 页 | 47 / 5 — L99VR01. Block diagram and pins description. PowerSSO-12. Pin name. SO-8 … |
| 文件格式/大小 | PDF / 3.9 Mb |
| 文件语言 | 英语 |

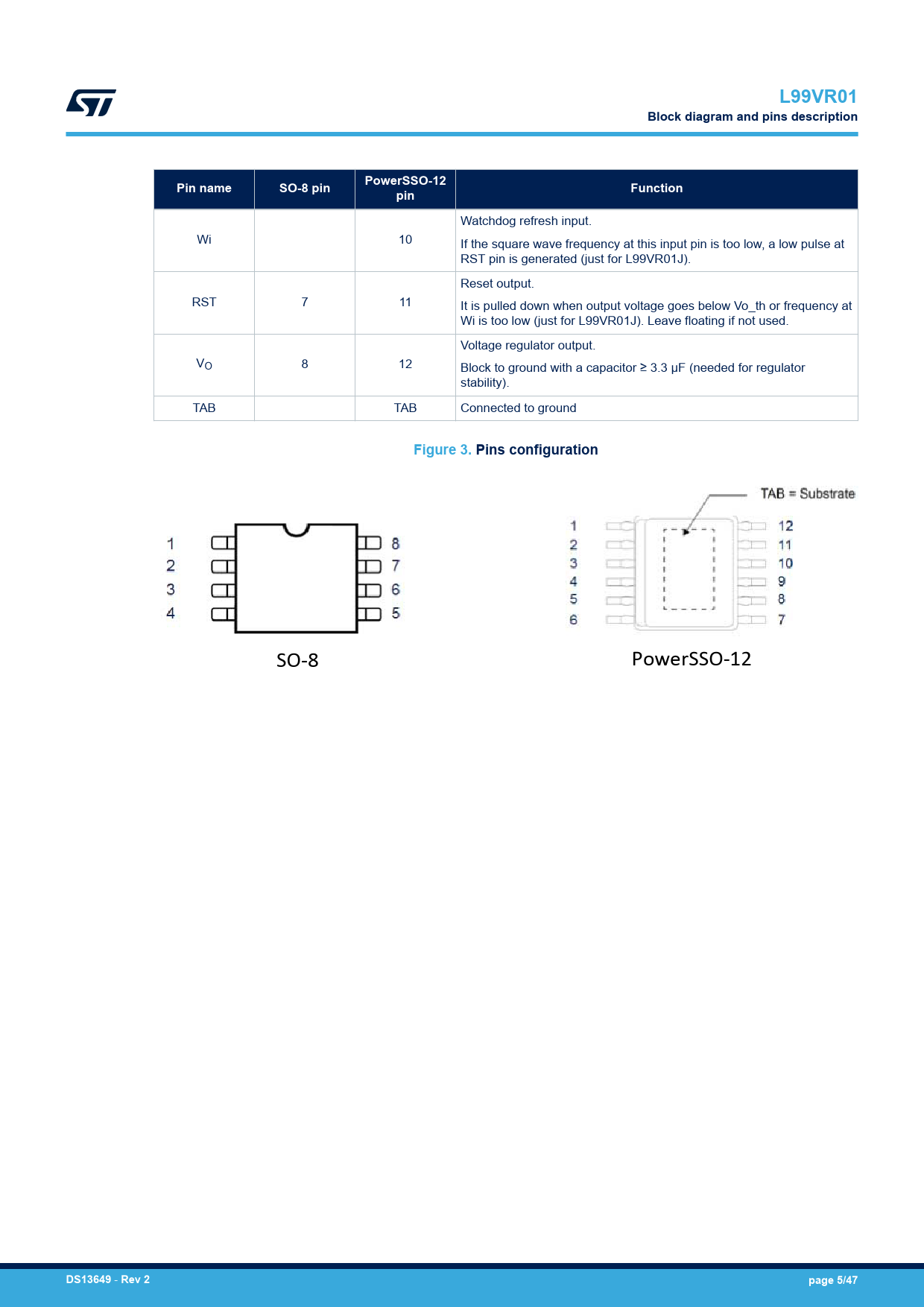

L99VR01. Block diagram and pins description. PowerSSO-12. Pin name. SO-8 pin. Function. pin. Figure 3. Pins configuration. DS13649. Rev 2
该数据表的模型线
文件文字版本
L99VR01 Block diagram and pins description PowerSSO-12 Pin name SO-8 pin Function pin
Watchdog refresh input. Wi 10 If the square wave frequency at this input pin is too low, a low pulse at RST pin is generated (just for L99VR01J). Reset output. RST 7 11 It is pulled down when output voltage goes below Vo_th or frequency at Wi is too low (just for L99VR01J). Leave floating if not used. Voltage regulator output. VO 8 12 Block to ground with a capacitor ≥ 3.3 µF (needed for regulator stability). TAB TAB Connected to ground
Figure 3. Pins configuration
SO-8 PowerSSO-12
DS13649
-
Rev 2 page 5/47
