Datasheet TEC1-12706 (HB Corporation)
| 制造商 | HB Corporation |
| 描述 | Thermoelectric Cooler |
| 页数 / 页 | 3 / 1 — Thermoelectric. Cooler. TEC1-12706. Performance Specifications. Hot Side … |
| 文件格式/大小 | PDF / 62 Kb |
| 文件语言 | 英语 |
Thermoelectric. Cooler. TEC1-12706. Performance Specifications. Hot Side Temperature (ºC). 25ºC. 50ºC. Qmax (Watts) 50 57
该数据表的模型线
文件文字版本

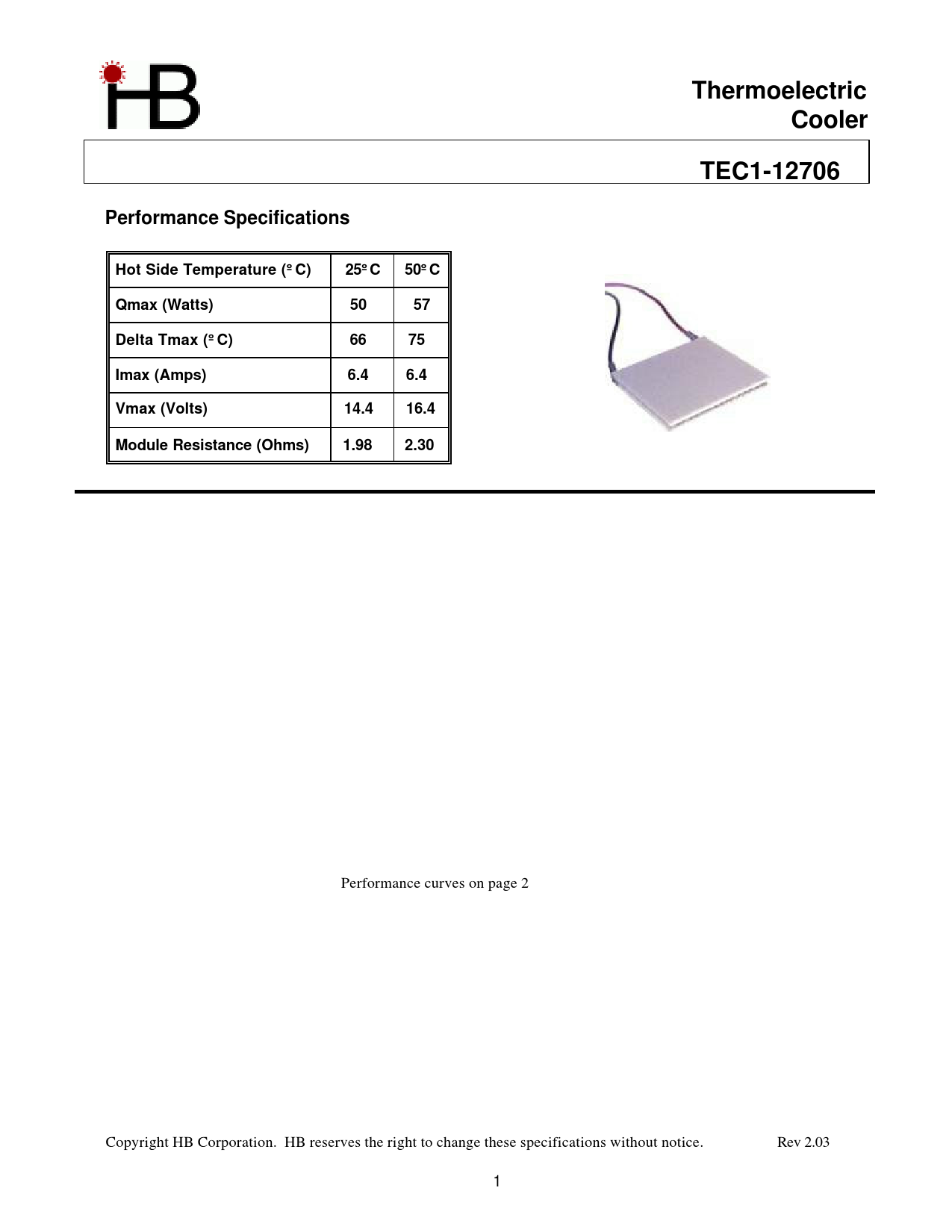

Thermoelectric Cooler TEC1-12706 Performance Specifications Hot Side Temperature (ºC) 25ºC 50ºC Qmax (Watts) 50 57 Delta Tmax (ºC) 66 75 Imax (Amps) 6.4 6.4 Vmax (Volts) 14.4 16.4 Module Resistance (Ohms) 1.98 2.30
Performance curves on page 2 Copyright HB Corporation. HB reserves the right to change these specifications without notice. Rev 2.03 1
