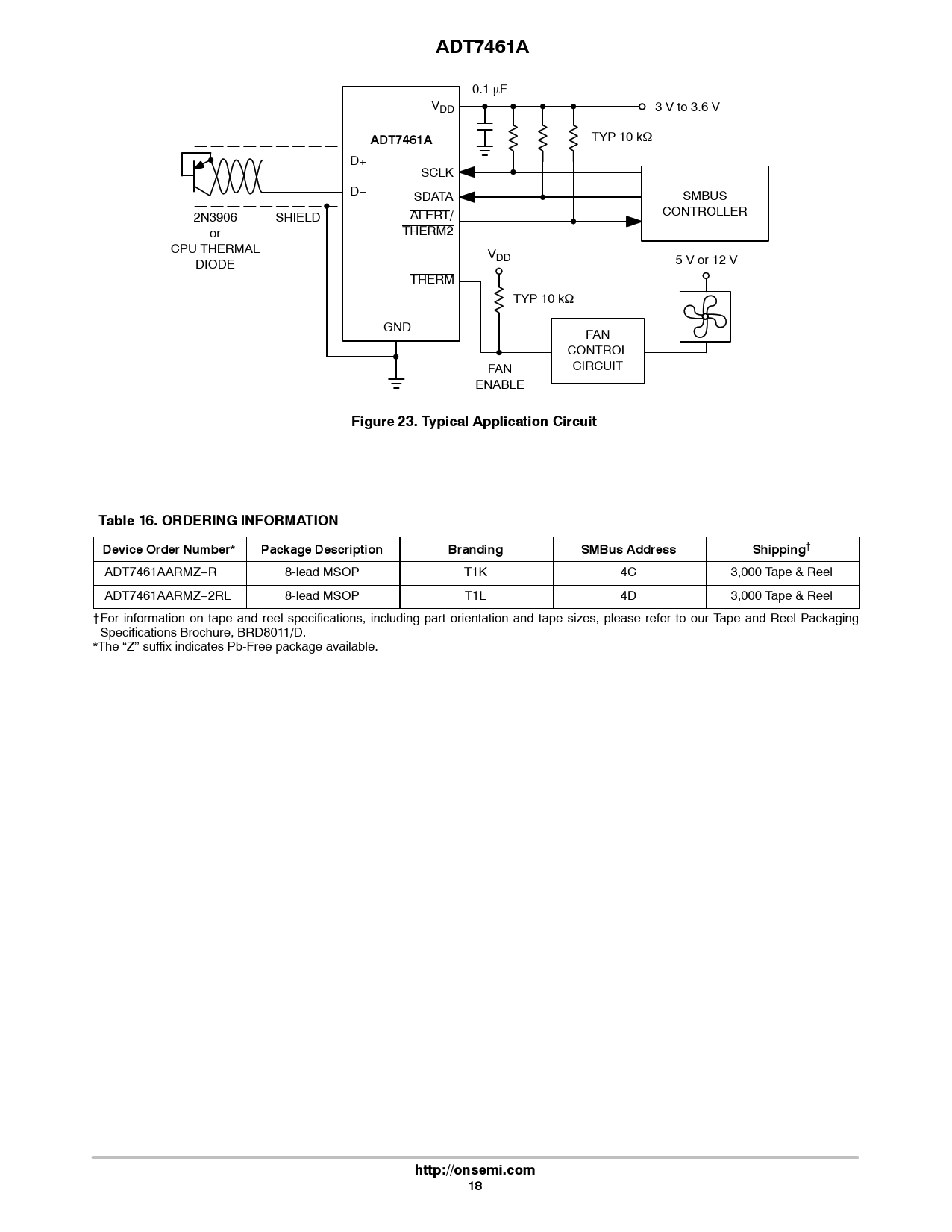

ADT7461A. Figure 23. Typical Application Circuit. Table 16. ORDERING INFORMATION. Device Order Number. Package Description
该数据表的模型线
文件文字版本
ADT7461A
0.1 mF VDD 3 V to 3.6 V TYP 10 k
ADT7461A
W D+ SCLK D− SDATA SMBUS CONTROLLER 2N3906 SHIELD ALERT/ or THERM2 CPU THERMAL VDD 5 V or 12 V DIODE THERM TYP 10 kW GND FAN CONTROL FAN CIRCUIT ENABLE
Figure 23. Typical Application Circuit Table 16. ORDERING INFORMATION Device Order Number
*
Package Description Branding SMBus Address Shipping
† ADT7461AARMZ−R 8-lead MSOP T1K 4C 3,000 Tape & Reel ADT7461AARMZ−2RL 8-lead MSOP T1L 4D 3,000 Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *The “Z’’ suffix indicates Pb-Free package available.
http://onsemi.com 18
