Datasheet TSV7721, TSV7722, TSV7723 (STMicroelectronics) - 5
| 制造商 | STMicroelectronics |
| 描述 | High bandwidth (22 MHz) low offset (200 μV) 5 V op amp |
| 页数 / 页 | 33 / 5 — TSV7721, TSV7722, TSV7723. Electrical characteristics. Symbol. Parameter. … |
| 文件格式/大小 | PDF / 4.5 Mb |
| 文件语言 | 英语 |

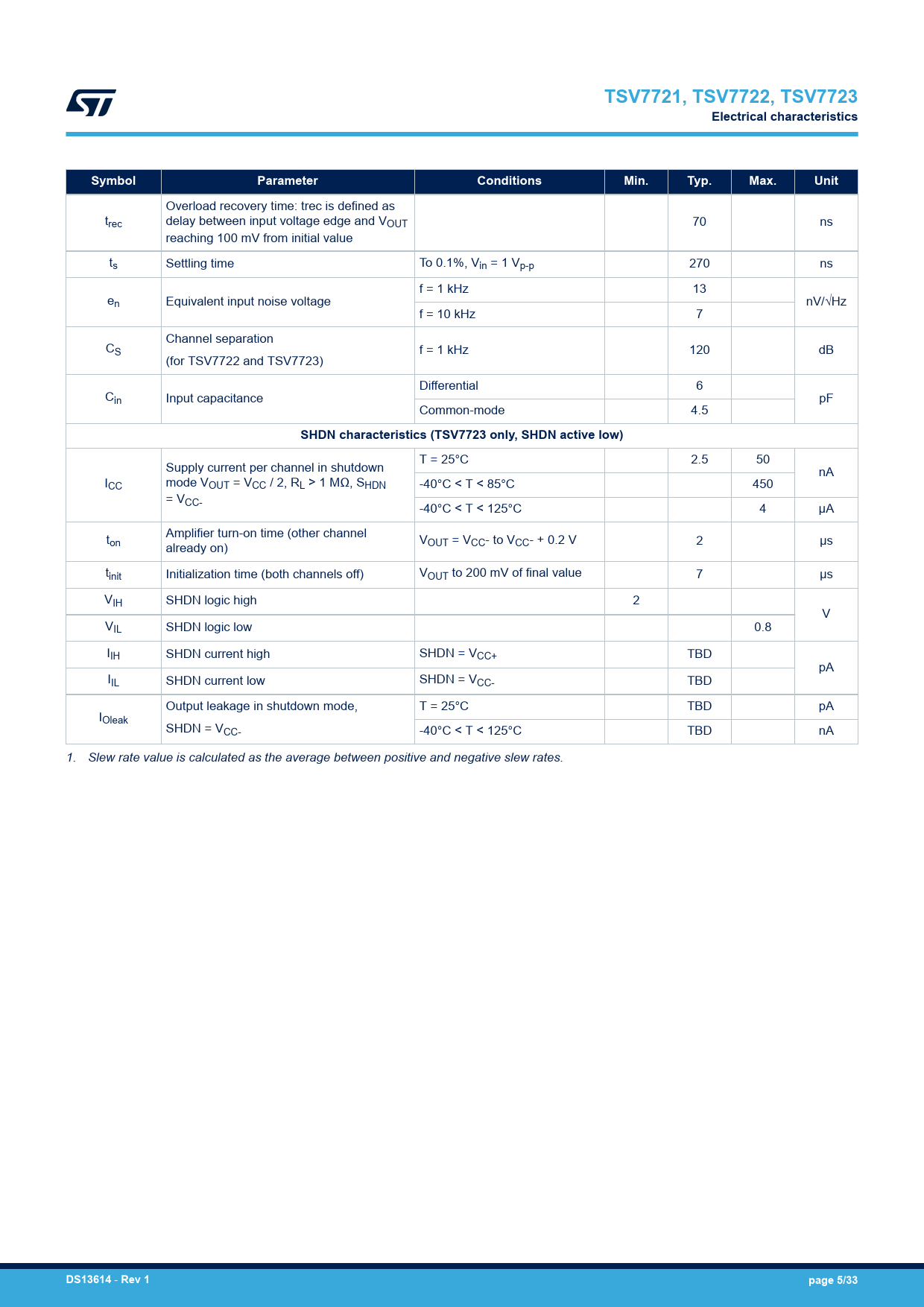

TSV7721, TSV7722, TSV7723. Electrical characteristics. Symbol. Parameter. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
TSV7721, TSV7722, TSV7723 Electrical characteristics Symbol Parameter Conditions Min. Typ. Max. Unit
Overload recovery time: trec is defined as trec delay between input voltage edge and VOUT 70 ns reaching 100 mV from initial value ts Settling time To 0.1%, Vin = 1 Vp-p 270 ns f = 1 kHz 13 en Equivalent input noise voltage nV/√Hz f = 10 kHz 7 Channel separation CS f = 1 kHz 120 dB (for TSV7722 and TSV7723) Differential 6 Cin Input capacitance pF Common-mode 4.5
SHDN characteristics (TSV7723 only, SHDN active low)
T = 25°C 2.5 50 Supply current per channel in shutdown nA ICC mode VOUT = VCC / 2, RL > 1 MΩ, SHDN -40°C < T < 85°C 450 = VCC- -40°C < T < 125°C 4 µA t Amplifier turn-on time (other channel on V already on) OUT = VCC- to VCC- + 0.2 V 2 µs tinit Initialization time (both channels off) VOUT to 200 mV of final value 7 µs VIH SHDN logic high 2 V VIL SHDN logic low 0.8 IIH SHDN current high SHDN = VCC+ TBD pA IIL SHDN current low SHDN = VCC- TBD Output leakage in shutdown mode, T = 25°C TBD pA IOleak SHDN = VCC- -40°C < T < 125°C TBD nA 1. Slew rate value is calculated as the average between positive and negative slew rates.
DS13614
-
Rev 1 page 5/33
