描述GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 15 - 20 GHz
页数 / 页10 / 1 — HMC6981LS6. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 15 - 20 GHz. Typical …
文件格式/大小PDF / 841 Kb
文件语言英语

HMC6981LS6. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 15 - 20 GHz. Typical Applications. Features. Functional Diagram

Datasheet HMC6981LS6 Analog Devices

该数据表的模型线

文件文字版本

HMC6981LS6
v03.1018

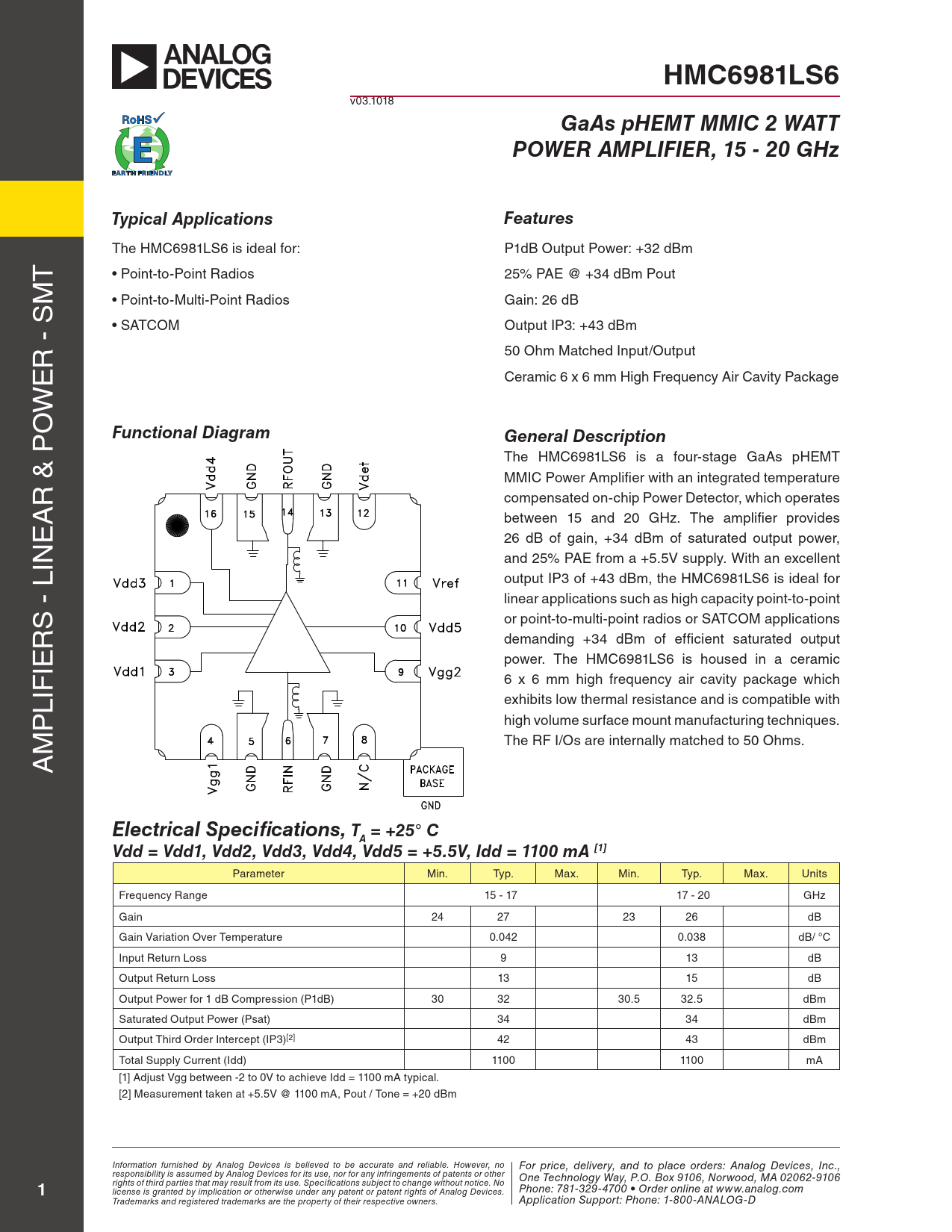

GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 15 - 20 GHz Typical Applications Features
The HmC6981ls6 is ideal for: p1dB output power: +32 dBm T • point-to-point radios 25% pAe @ +34 dBm pout m s • point-to-multi-point radios Gain: 26 dB • sATCom output ip3: +43 dBm r - 50 ohm matched input/output e Ceramic 6 x 6 mm High frequency Air Cavity package w o p
Functional Diagram General Description
The HmC6981ls6 is a four-stage GaAs pHemT mmiC power Amplifier with an integrated temperature r & compensated on-chip power Detector, which operates A between 15 and 20 GHz. The amplifier provides e 26 dB of gain, +34 dBm of saturated output power, and 25% pAe from a +5.5V supply. with an excel ent lin output ip3 of +43 dBm, the HmC6981ls6 is ideal for linear applications such as high capacity point-to-point s - or point-to-multi-point radios or sATCom applications r demanding +34 dBm of efficient saturated output ie power. The HmC6981ls6 is housed in a ceramic 6 x 6 mm high frequency air cavity package which lif exhibits low thermal resistance and is compatible with p high volume surface mount manufacturing techniques. m The rf i/os are internal y matched to 50 ohms. A
Electrical Specifications, T = +25° C A Vdd = Vdd1, Vdd2, Vdd3, Vdd4, Vdd5 = +5.5V, Idd = 1100 mA [1]
parameter min. Typ. max. min. Typ. max. Units frequency range 15 - 17 17 - 20 GHz Gain 24 27 23 26 dB Gain Variation over Temperature 0.042 0.038 dB/ °C input return loss 9 13 dB output return loss 13 15 dB output power for 1 dB Compression (p1dB) 30 32 30.5 32.5 dBm saturated output power (psat) 34 34 dBm output Third order intercept (ip3)[2] 42 43 dBm Total supply Current (idd) 1100 1100 mA [1] Adjust Vgg between -2 to 0V to achieve idd = 1100 mA typical. [2] measurement taken at +5.5V @ 1100 mA, pout / Tone = +20 dBm Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
