Datasheet HMC7229 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 33 GHz to 40 GHz, GaAs, pHEMT, MMIC, 1 W Power Amplifier with Power Detector |
| 页数 / 页 | 16 / 5 — Data Sheet. HMC7229. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. … |
| 修订版 | D |
| 文件格式/大小 | PDF / 310 Kb |
| 文件语言 | 英语 |

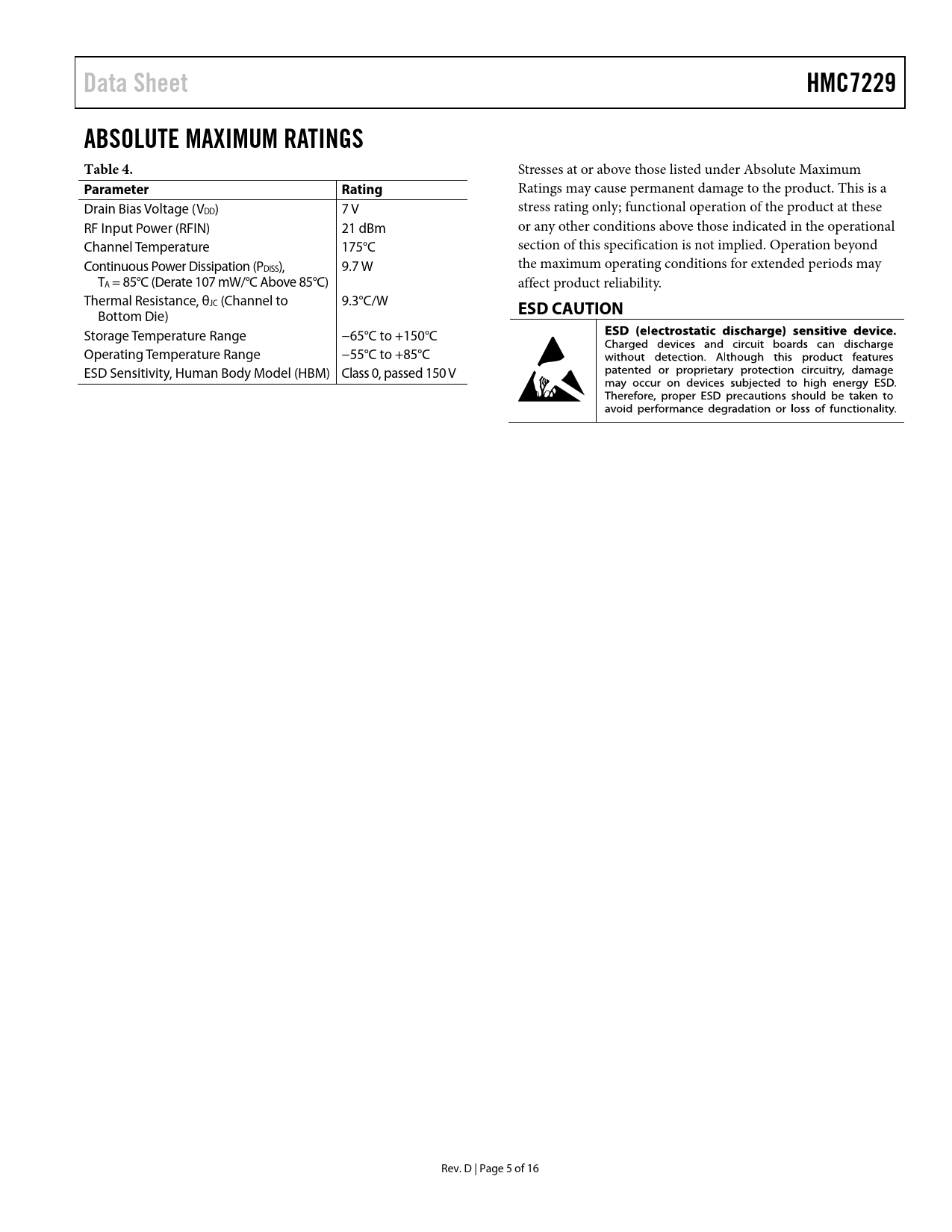

Data Sheet. HMC7229. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
该数据表的模型线
文件文字版本
Data Sheet HMC7229 ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Drain Bias Voltage (VDD) 7 V stress rating only; functional operation of the product at these RF Input Power (RFIN) 21 dBm or any other conditions above those indicated in the operational Channel Temperature 175°C section of this specification is not implied. Operation beyond Continuous Power Dissipation (PDISS), 9.7 W the maximum operating conditions for extended periods may TA = 85°C (Derate 107 mW/°C Above 85°C) affect product reliability. Thermal Resistance, θJC (Channel to 9.3°C/W
