Datasheet AD8051, AD8052, AD8054 (Analog Devices)

制造商Analog Devices
描述Low Cost, High Speed, Rail-to-Rail Amplifiers
页数 / 页24 / 1 — Low Cost, High Speed,. Rail-to-Rail Amplifiers. Data Sheet. AD8051/. …
修订版K
文件格式/大小PDF / 751 Kb
文件语言英语

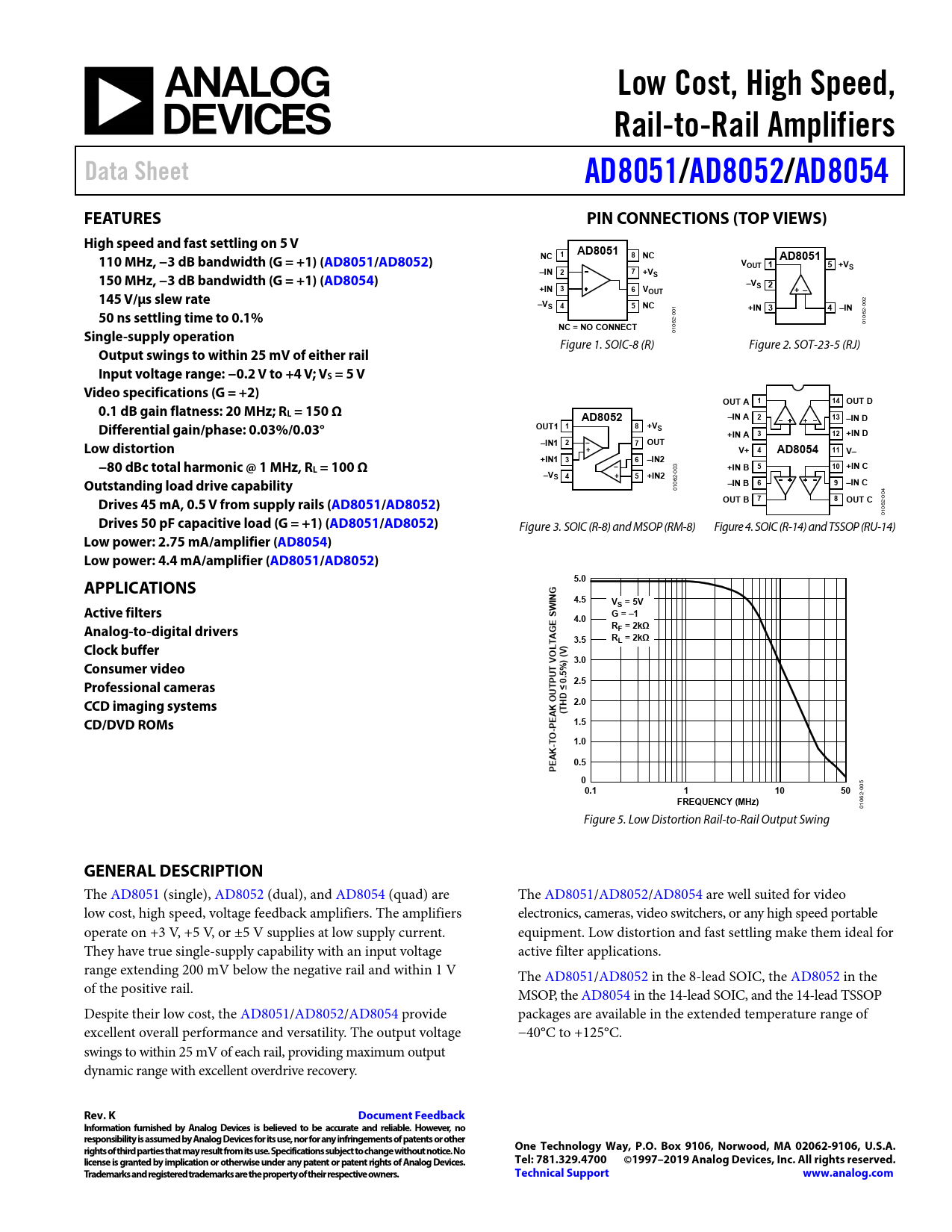

Low Cost, High Speed,. Rail-to-Rail Amplifiers. Data Sheet. AD8051/. AD8052/. AD8054. FEATURES. PIN CONNECTIONS (TOP VIEWS)

Datasheet AD8051, AD8052, AD8054 Analog Devices, 修订版: K

该数据表的模型线

文件文字版本

Low Cost, High Speed, Rail-to-Rail Amplifiers Data Sheet AD8051/ AD8052/ AD8054 FEATURES PIN CONNECTIONS (TOP VIEWS) High speed and fast settling on 5 V AD8051 1 NC 8 NC AD8051 110 MHz, −3 dB bandwidth (G = +1) (AD8051/ AD8052) VOUT 1 5 +VS –IN 2 7 +VS 150 MHz, −3 dB bandwidth (G = +1) (AD8054) –V +IN S 2 3 6 VOUT + – 145 V/μs slew rate –VS 4 5 NC +IN 3 4 –IN
002
50 ns settling time to 0.1%
001
NC = NO CONNECT
01062- 1062-
Single-supply operation
0 Figure 1. SOIC-8 (R) Figure 2. SOT-23-5 (RJ)
Output swings to within 25 mV of either rail Input voltage range: −0.2 V to +4 V; VS = 5 V Video specifications (G = +2) OUT A 1 14 OUT D 0.1 dB gain flatness: 20 MHz; RL = 150 Ω AD8052 –IN A 2 13 –IN D Differential gain/phase: 0.03%/0.03° OUT1 1 8 +VS +IN A 3 12 +IN D –IN1 2 7 OUT Low distortion + V+ 4 AD8054 11 V– +IN1 3 6 –IN2 −80 dBc total harmonic @ 1 MHz, R 5 10 +IN C L = 100 Ω +IN B –V
003
S 4 + 5 +IN2 Outstanding load drive capability
062-
–IN B 6 9 –IN C
01
7 8 OUT C
004
Drives 45 mA, 0.5 V from supply rails (AD8051/ AD8052) OUT B
1062- 0
Drives 50 pF capacitive load (G = +1) (AD8051/ AD8052)
Figure 3. SOIC (R-8) and MSOP (RM-8) Figure 4. SOIC (R-14) and TSSOP (RU-14)
Low power: 2.75 mA/amplifier (AD8054) Low power: 4.4 mA/amplifier (AD8051/ AD8052) 5.0 APPLICATIONS G IN 4.5 VS = 5V Active filters 4.0 G = –1 E SW R Analog-to-digital drivers G F = 2kΩ A T 3.5 RL = 2kΩ Clock buffer L ) V ) ( 3.0 VO Consumer video UT 5% P 2.5 Professional cameras T U ≤ 0. CCD imaging systems O HD 2.0 K (T CD/DVD ROMs EA 1.5 -P O 1.0 -T K A 0.5 PE 0
05
0.1 1 10 50
0 2-
FREQUENCY (MHz)
106 0 Figure 5. Low Distortion Rail-to-Rail Output Swing
GENERAL DESCRIPTION
The AD8051 (single), AD8052 (dual), and AD8054 (quad) are The AD8051/AD8052/AD8054 are well suited for video low cost, high speed, voltage feedback amplifiers. The amplifiers electronics, cameras, video switchers, or any high speed portable operate on +3 V, +5 V, or ±5 V supplies at low supply current. equipment. Low distortion and fast settling make them ideal for They have true single-supply capability with an input voltage active filter applications. range extending 200 mV below the negative rail and within 1 V The AD8051/AD8052 in the 8-lead SOIC, the AD8052 in the of the positive rail. MSOP, the AD8054 in the 14-lead SOIC, and the 14-lead TSSOP Despite their low cost, the AD8051/AD8052/AD8054 provide packages are available in the extended temperature range of excellent overall performance and versatility. The output voltage −40°C to +125°C. swings to within 25 mV of each rail, providing maximum output dynamic range with excellent overdrive recovery.
Rev. K Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©1997–2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS PIN CONNECTIONS (TOP VIEWS) GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT DESCRIPTION APPLICATION INFORMATION OVERDRIVE RECOVERY DRIVING CAPACITIVE LOADS LAYOUT CONSIDERATIONS ACTIVE FILTERS ANALOG-TO-DIGITAL AND DIGITAL-TO-ANALOG APPLICATIONS SYNC STRIPPER SINGLE-SUPPLY COMPOSITE VIDEO LINE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
