Datasheet 74LVC2T45 (Diodes) - 12
| 制造商 | Diodes |
| 描述 | DUAL BIT DUAL POWER SUPPLY TRANSLATING TRANSCEIVER WITH 3 STATE OUTPUTS |
| 页数 / 页 | 15 / 12 — 74LVC2T45. Ordering Information. 74 LVC 2T 45 X - 7. 7” Tape and Reel … |
| 文件格式/大小 | PDF / 857 Kb |
| 文件语言 | 英语 |
74LVC2T45. Ordering Information. 74 LVC 2T 45 X - 7. 7” Tape and Reel (Note 7). Part Number. Package Code. Packaging. Quantity
该数据表的模型线
文件文字版本

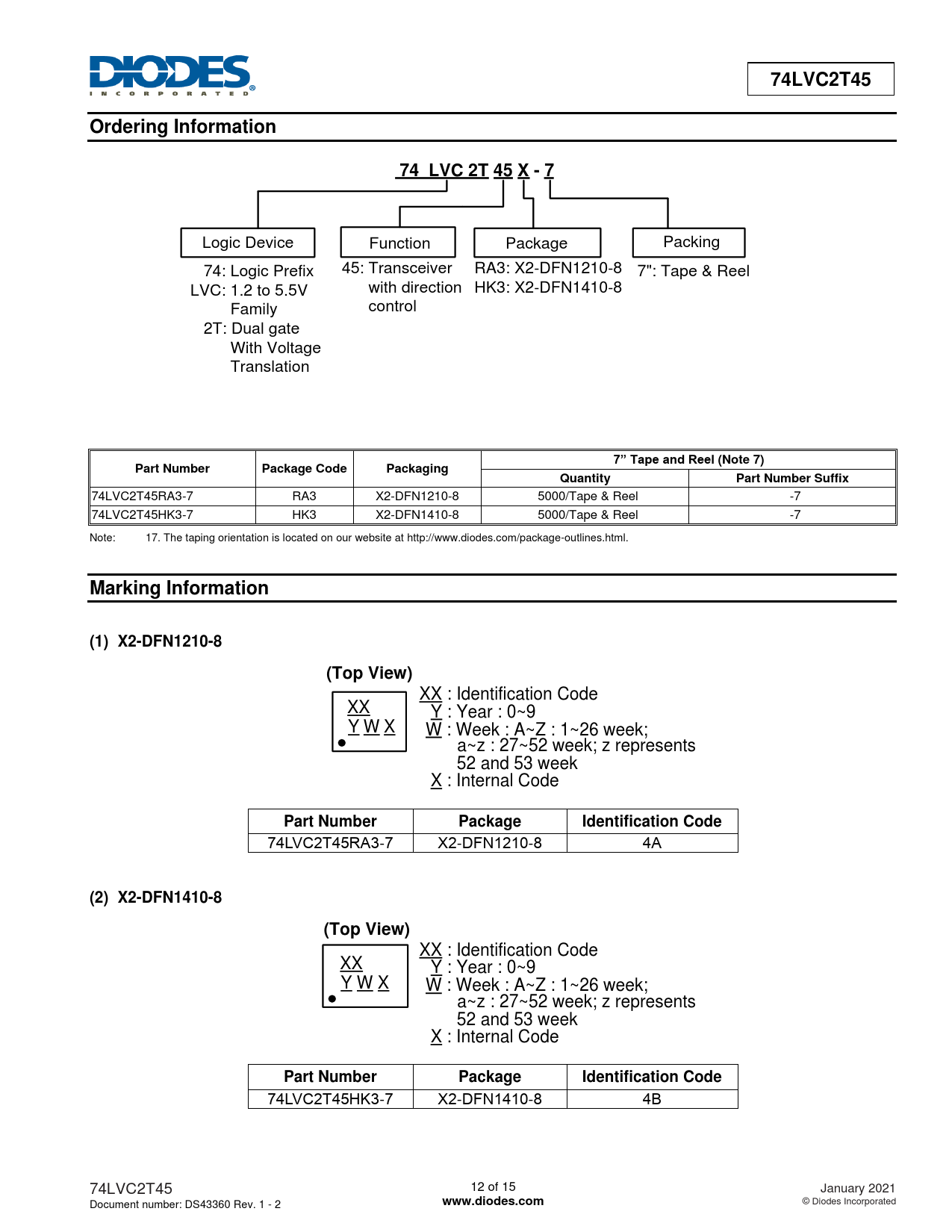

74LVC2T45 Ordering Information 74 LVC 2T 45 X - 7
Logic Device Function Package Packing 45: Transceiver RA3: X2-DFN1210-8 74: Logic Prefix 7": Tape & Reel with direction HK3: X2-DFN1410-8 LVC: 1.2 to 5.5V Family control 2T: Dual gate With Voltage Translation
7” Tape and Reel (Note 7) Part Number Package Code Packaging Quantity Part Number Suffix
74LVC2T45RA3-7 RA3 X2-DFN1210-8 5000/Tape & Reel -7 74LVC2T45HK3-7 HK3 X2-DFN1410-8 5000/Tape & Reel -7 Note: 17. The taping orientation is located on our website at http://www.diodes.com/package-outlines.html.
Marking Information (1) X2-DFN1210-8 (Top View)
XX : Identification Code XX Y : Year : 0~9 Y W X W : Week : A~Z : 1~26 week; a~z : 27~52 week; z represents 52 and 53 week X : Internal Code
Part Number Package Identification Code
74LVC2T45RA3-7 X2-DFN1210-8 4A
(2) X2-DFN1410-8 (Top View)
XX : Identification Code XX Y : Year : 0~9 Y W X W : Week : A~Z : 1~26 week; a~z : 27~52 week; z represents 52 and 53 week X : Internal Code
Part Number Package Identification Code
74LVC2T45HK3-7 X2-DFN1410-8 4B 74LVC2T45 12 of 15 January 2021 Document number: DS43360 Rev. 1 - 2
