PRODUCT SPECIFICATION. Description. Document No. Date. Rev. 5. Cautions and Prohibitions in Handling

PRODUCT SPECIFICATION Description Document No Date Rev 5 Cautions and Prohibitions in Handling

该数据表的模型线

文件文字版本

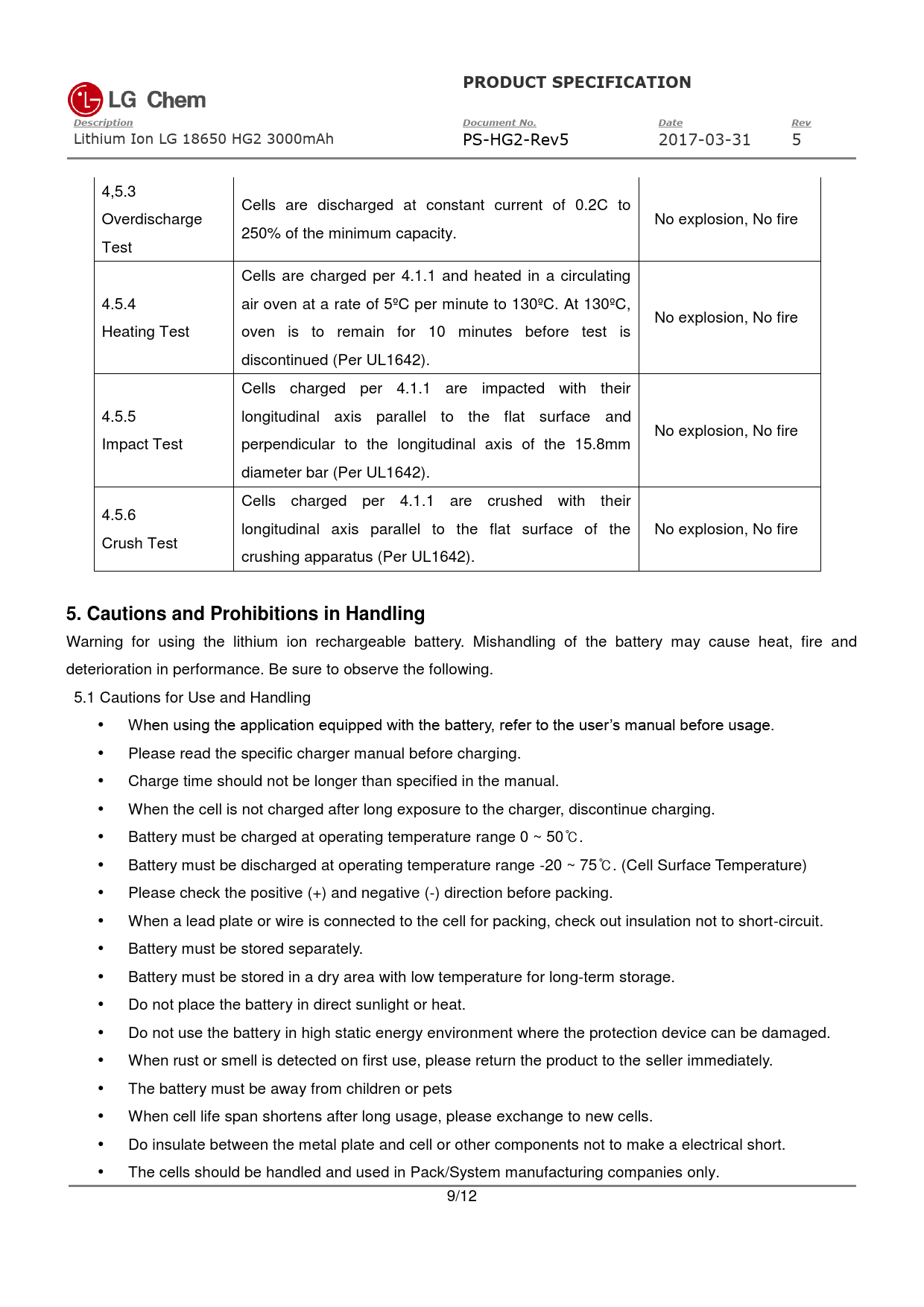

PRODUCT SPECIFICATION Description Document No. Date Rev
Lithium Ion LG 18650 HG2 3000mAh PS-HG2-Rev5 2017-03-31 5 4,5.3 Cells are discharged at constant current of 0.2C to Overdischarge No explosion, No fire 250% of the minimum capacity. Test Cells are charged per 4.1.1 and heated in a circulating 4.5.4 air oven at a rate of 5ºC per minute to 130ºC. At 130ºC, No explosion, No fire Heating Test oven is to remain for 10 minutes before test is discontinued (Per UL1642). Cells charged per 4.1.1 are impacted with their 4.5.5 longitudinal axis parallel to the flat surface and No explosion, No fire Impact Test perpendicular to the longitudinal axis of the 15.8mm diameter bar (Per UL1642). Cells charged per 4.1.1 are crushed with their 4.5.6 longitudinal axis parallel to the flat surface of the No explosion, No fire Crush Test crushing apparatus (Per UL1642).
5. Cautions and Prohibitions in Handling
Warning for using the lithium ion rechargeable battery. Mishandling of the battery may cause heat, fire and deterioration in performance. Be sure to observe the following. 5.1 Cautions for Use and Handling  When using the application equipped with the battery, refer to the user’s manual before usage.  Please read the specific charger manual before charging.  Charge time should not be longer than specified in the manual.  When the cell is not charged after long exposure to the charger, discontinue charging.  Battery must be charged at operating temperature range 0 ~ 50℃.  Battery must be discharged at operating temperature range -20 ~ 75℃. (Cell Surface Temperature)  Please check the positive (+) and negative (-) direction before packing.  When a lead plate or wire is connected to the cell for packing, check out insulation not to short-circuit.  Battery must be stored separately.  Battery must be stored in a dry area with low temperature for long-term storage.  Do not place the battery in direct sunlight or heat.  Do not use the battery in high static energy environment where the protection device can be damaged.  When rust or smell is detected on first use, please return the product to the seller immediately.  The battery must be away from children or pets  When cell life span shortens after long usage, please exchange to new cells.  Do insulate between the metal plate and cell or other components not to make a electrical short.  The cells should be handled and used in Pack/System manufacturing companies only. 9/12
