Datasheet 18650HG2 (LG) - 4
| 制造商 | LG |
| 描述 | Rechargeable Lithium Ion Battery 3000 mAh |
| 页数 / 页 | 12 / 4 — PRODUCT SPECIFICATION. Description. Document No. Date. Rev. 1. General … |
| 文件格式/大小 | PDF / 447 Kb |
| 文件语言 | 英语 |
PRODUCT SPECIFICATION. Description. Document No. Date. Rev. 1. General Information. 2. Nominal Specification
该数据表的模型线
文件文字版本

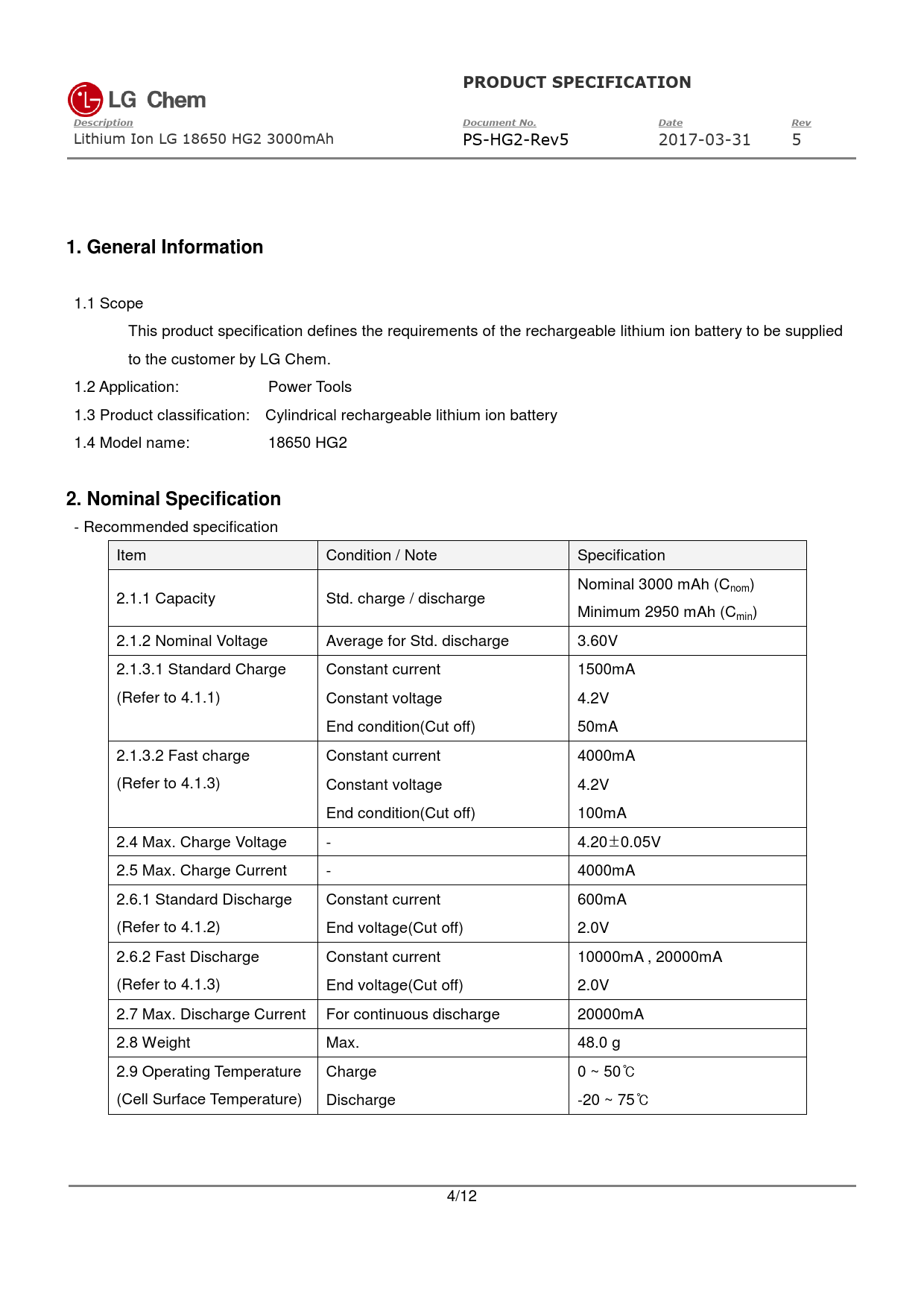

PRODUCT SPECIFICATION Description Document No. Date Rev
Lithium Ion LG 18650 HG2 3000mAh PS-HG2-Rev5 2017-03-31 5
1. General Information
1.1 Scope This product specification defines the requirements of the rechargeable lithium ion battery to be supplied to the customer by LG Chem. 1.2 Application: Power Tools 1.3 Product classification: Cylindrical rechargeable lithium ion battery 1.4 Model name: 18650 HG2
2. Nominal Specification
- Recommended specification
Item Condition / Note Specification Nominal 3000 mAh (Cnom) 2.1.1 Capacity Std. charge / discharge Minimum 2950 mAh (Cmin) 2.1.2 Nominal Voltage Average for Std. discharge 3.60V 2.1.3.1 Standard Charge Constant current 1500mA (Refer to 4.1.1) Constant voltage 4.2V End condition(Cut off) 50mA 2.1.3.2 Fast charge Constant current 4000mA (Refer to 4.1.3) Constant voltage 4.2V End condition(Cut off) 100mA 2.4 Max. Charge Voltage - 4.20±0.05V 2.5 Max. Charge Current - 4000mA 2.6.1 Standard Discharge Constant current 600mA (Refer to 4.1.2) End voltage(Cut off) 2.0V 2.6.2 Fast Discharge Constant current 10000mA , 20000mA (Refer to 4.1.3) End voltage(Cut off) 2.0V 2.7 Max. Discharge Current For continuous discharge 20000mA 2.8 Weight Max. 48.0 g 2.9 Operating Temperature Charge 0 ~ 50℃ (Cell Surface Temperature) Discharge -20 ~ 75℃ 4/12
