Datasheet PESD4V0Z2BCDF (Nexperia) - 6

制造商Nexperia
描述Extremely low clamping low capacitance ESD protection
页数 / 页12 / 6 — Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD …
修订版17082020
文件格式/大小PDF / 292 Kb
文件语言英语

Nexperia. PESD4V0Z2BCDF. Extremely low clamping low capacitance ESD protection

Nexperia PESD4V0Z2BCDF Extremely low clamping low capacitance ESD protection

该数据表的模型线

文件文字版本

Nexperia PESD4V0Z2BCDF Extremely low clamping low capacitance ESD protection
aaa-031925 12 aaa-031926 0 IPP IPP (A) (A) 8 -4 4 -8 0 -12 0 2 4 6 8 -8 -6 -4 -2 0 VCL (V) VCL (V) IEC 61000-4-5; tp = 8/20 μs; positive pulse IEC 61000-4-5; tp = 8/20 μs; negative pulse

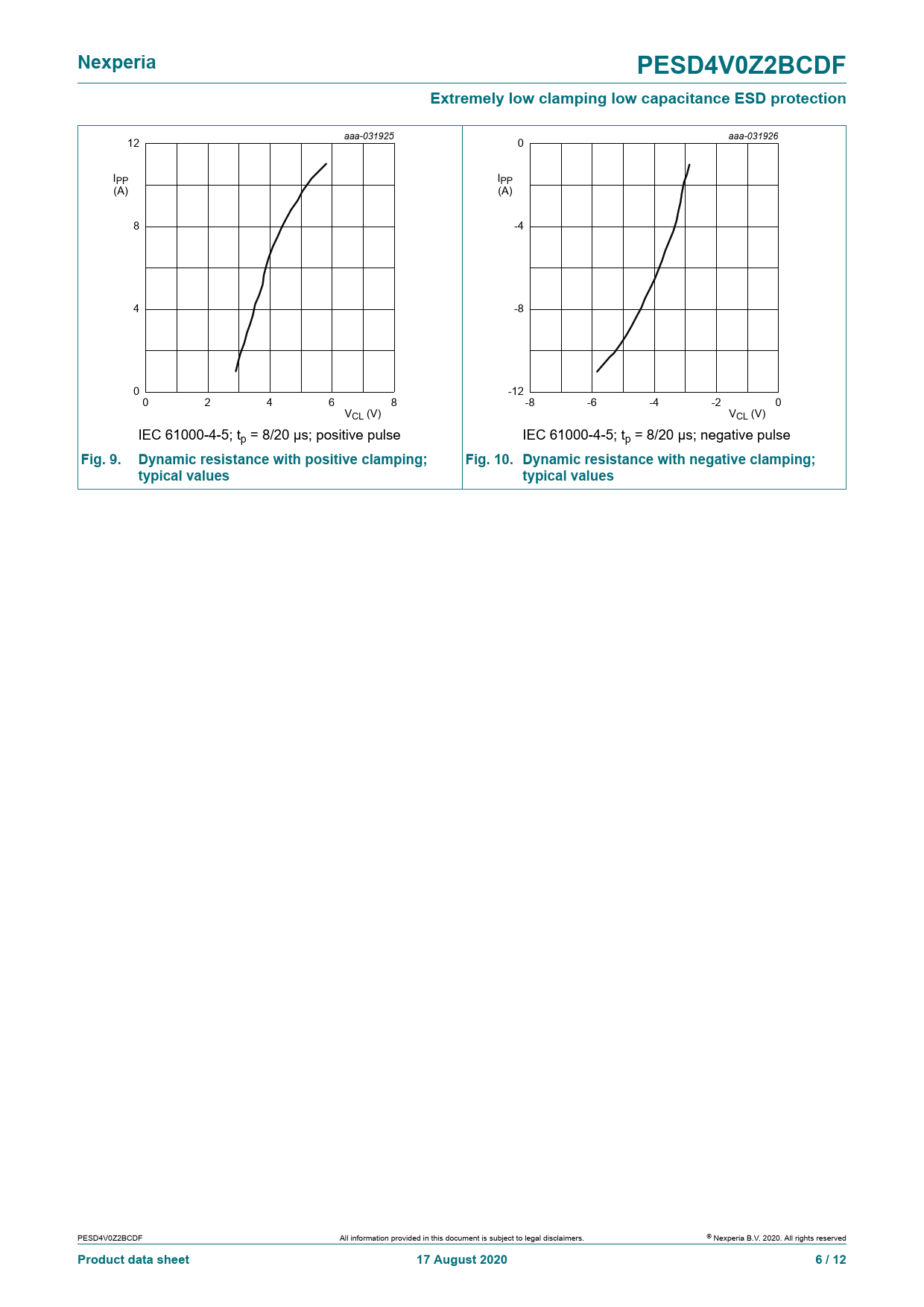

Fig. 9. Dynamic resistance with positive clamping; Fig. 10. Dynamic resistance with negative clamping; typical values typical values
PESD4V0Z2BCDF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 17 August 2020 6 / 12
