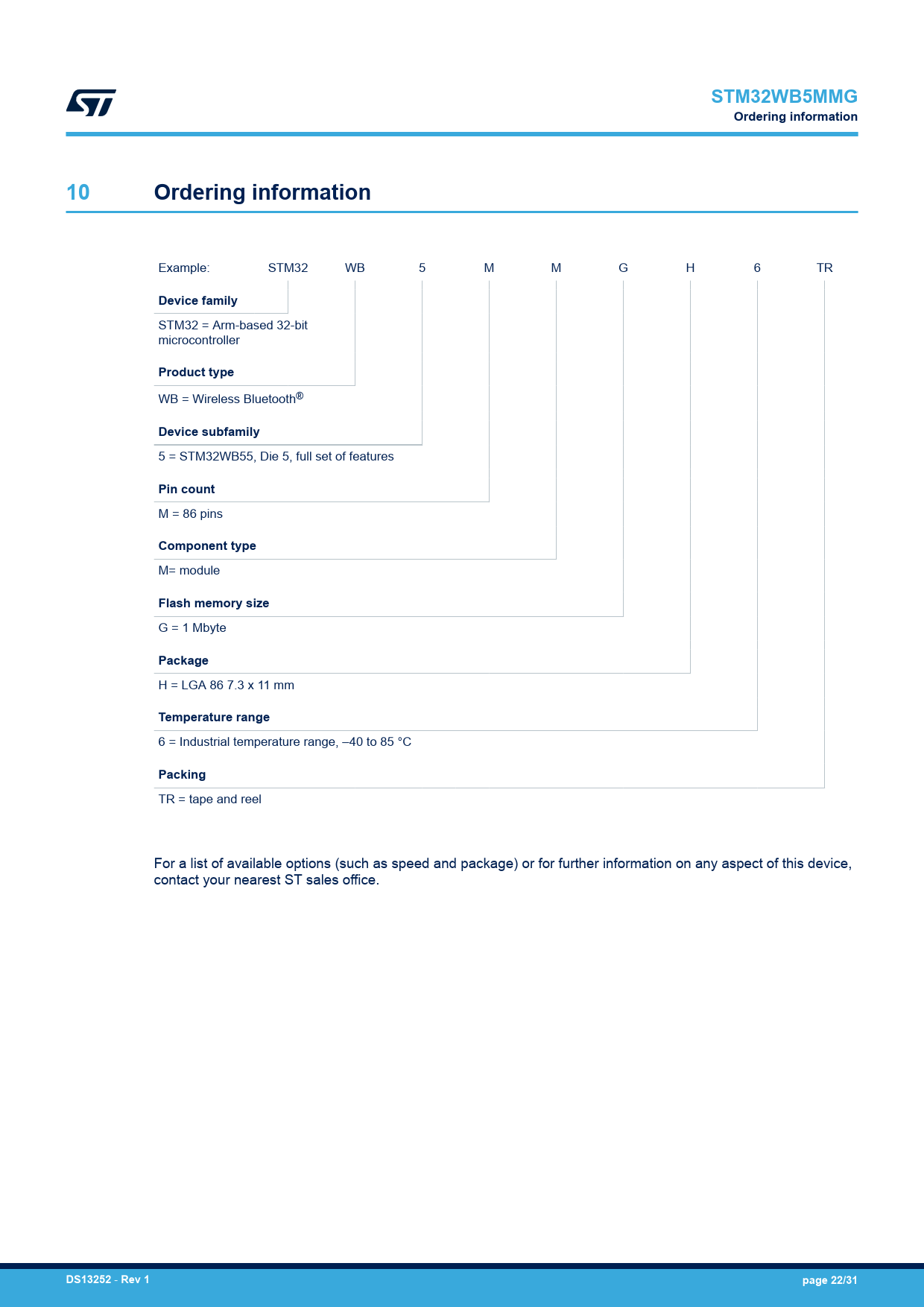

STM32WB5MMG Ordering information 10 Ordering information
Example: STM32 WB 5 M M G H 6 TR
Device family
STM32 = Arm-based 32-bit microcontroller
Product type
WB = Wireless Bluetooth®
Device subfamily
5 = STM32WB55, Die 5, full set of features
Pin count
M = 86 pins
Component type
M= module
Flash memory size
G = 1 Mbyte
Package
H = LGA 86 7.3 x 11 mm
Temperature range
6 = Industrial temperature range, –40 to 85 °C
Packing
TR = tape and reel For a list of available options (such as speed and package) or for further information on any aspect of this device, contact your nearest ST sales office.
DS13252
-
Rev 1 page 22/31
