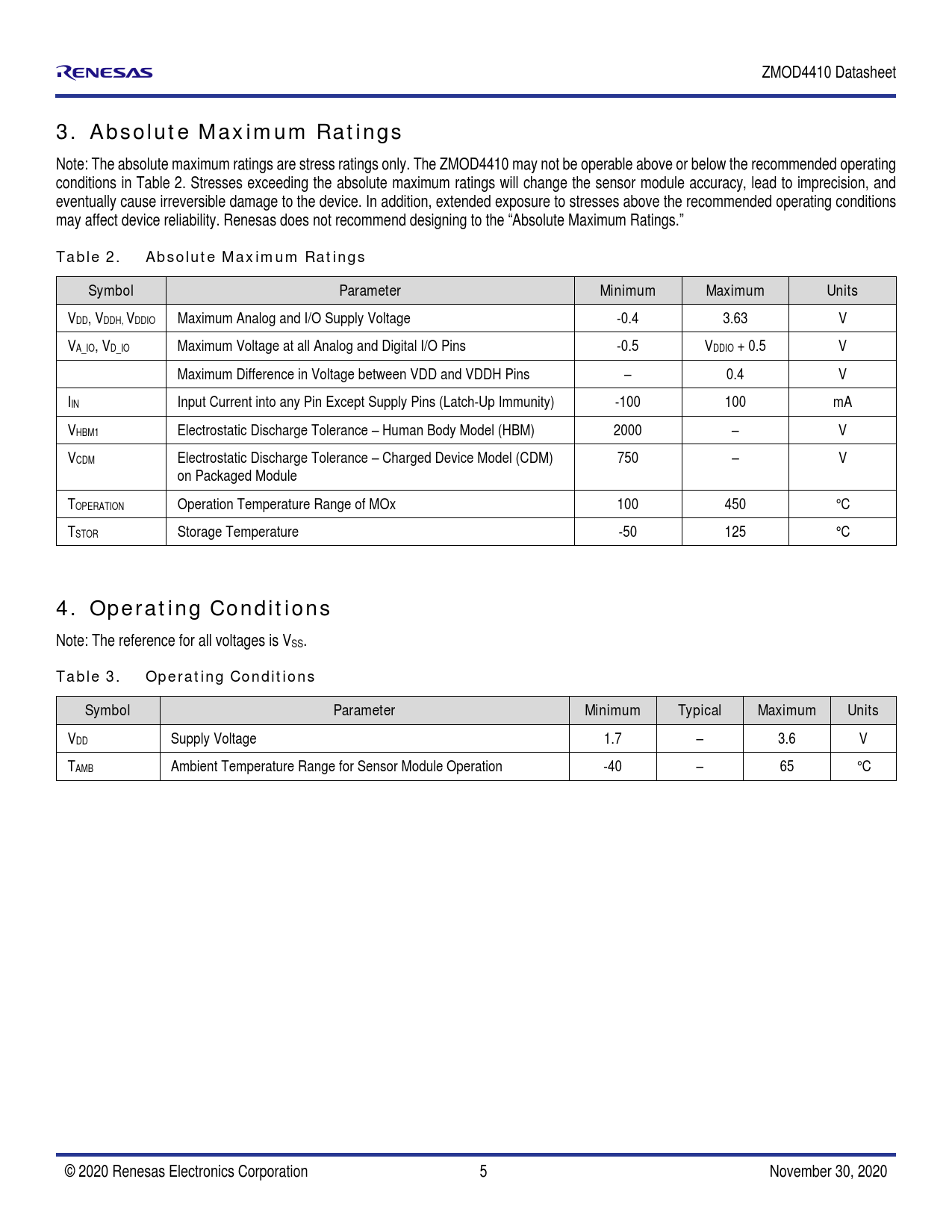

ZMOD4410 Datasheet
3. Absolute Maximum Ratings
Note: The absolute maximum ratings are stress ratings only. The ZMOD4410 may not be operable above or below the recommended operating conditions in Table 2. Stresses exceeding the absolute maximum ratings wil change the sensor module accuracy, lead to imprecision, and eventual y cause irreversible damage to the device. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. Renesas does not recommend designing to the “Absolute Maximum Ratings.”
Table 2. Absolute Maximum Ratings Symbol Parameter Minimum Maximum Units
VDD, VDDH, VDDIO Maximum Analog and I/O Supply Voltage -0.4 3.63 V VA_IO, VD_IO Maximum Voltage at all Analog and Digital I/O Pins -0.5 VDDIO + 0.5 V Maximum Dif erence in Voltage between VDD and VDDH Pins – 0.4 V IIN Input Current into any Pin Except Supply Pins (Latch-Up Immunity) -100 100 mA VHBM1 Electrostatic Discharge Tolerance – Human Body Model (HBM) 2000 – V VCDM Electrostatic Discharge Tolerance – Charged Device Model (CDM) 750 – V on Packaged Module TOPERATION Operation Temperature Range of MOx 100 450 °C TSTOR Storage Temperature -50 125 °C
4. Operating Conditions
Note: The reference for all voltages is VSS.
Table 3. Operating Conditions Symbol Parameter Minimum Typical Maximum Units
VDD Supply Voltage 1.7 – 3.6 V TAMB Ambient Temperature Range for Sensor Module Operation -40 – 65 °C © 2020 Renesas Electronics Corporation 5 November 30, 2020 Document Outline 1. Pin Assignments 2. Pin Descriptions 3. Absolute Maximum Ratings 4. Operating Conditions 5. Electrical Characteristics 6. Block Diagram 7. Sensor Module Characteristics 7.1 Gas Sensor Module 8. Gas Sensor Module Operation Modes and Characteristics 8.1 Operation Modes 1–3 8.1.1 Air Quality – UBA Levels 8.1.2 Air Quality – Estimated Carbon Dioxide Correlation (eCO2) 8.2 Operation Mode 4: Odor 8.3 Operation Mode 5: Sulfur based Odor Discrimination 8.4 Conditioning and Stability 8.5 Environmental Temperature and Humidity 8.6 Accuracy and Consistency 9. Assembly Restrictions, Operation, Integration Notes, and Storage 10. Test and Calibration 11. I2C Interface and Data Transmission Protocol 12. Related Websites and Software 13. Glossary 14. Package Outline Drawings 15. Ordering Information 16. Revision History
