Datasheet IM828-XCC (Infineon) - 3
| 制造商 | Infineon |
| 描述 | CIPOS Maxi IM828. The CIPOS Maxi IM828 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. |
| 页数 / 页 | 23 / 3 — CIPOS™ Maxi IM828. IM828-XCC. Internal electrical schematic. Figure 1 |
| 修订版 | 02_00 |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |

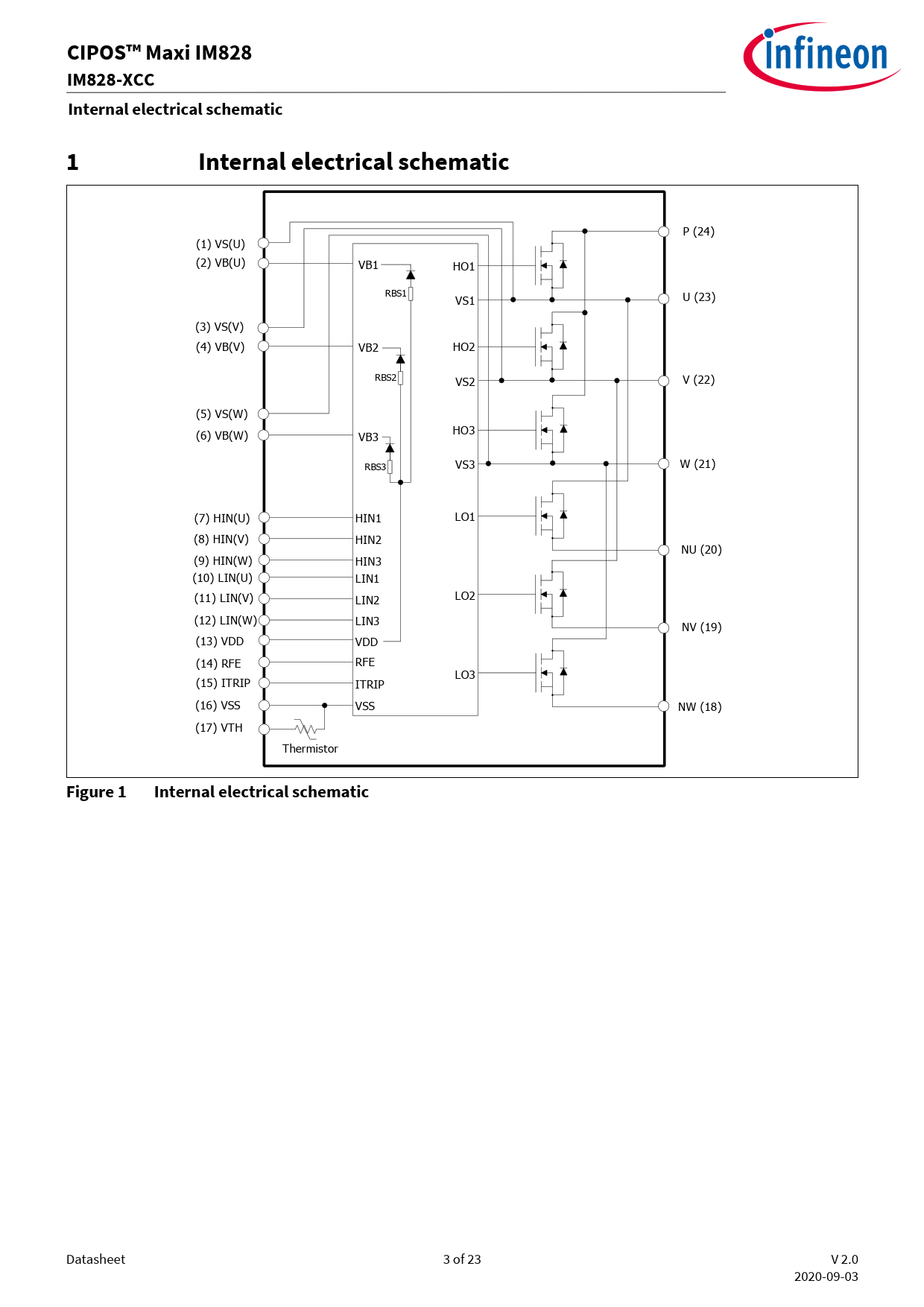

CIPOS™ Maxi IM828. IM828-XCC. Internal electrical schematic. Figure 1
该数据表的模型线
文件文字版本
CIPOS™ Maxi IM828 IM828-XCC Internal electrical schematic 1 Internal electrical schematic
P (24) (1) VS(U) (2) VB(U) VB1 HO1 RBS1 VS1 U (23) (3) VS(V) (4) VB(V) VB2 HO2 RBS2 VS2 V (22) (5) VS(W) HO3 (6) VB(W) VB3 RBS3 VS3 W (21) (7) HIN(U) HIN1 LO1 (8) HIN(V) HIN2 NU (20) (9) HIN(W) HIN3 (10) LIN(U) LIN1 (11) LIN(V) LIN2 LO2 (12) LIN(W) LIN3 NV (19) (13) VDD VDD (14) RFE RFE LO3 (15) ITRIP ITRIP (16) VSS VSS NW (18) (17) VTH Thermistor
Figure 1 Internal electrical schematic
Datasheet 3 of 23 V 2.0 2020-09-03
