Datasheet HT12D, HT12F (Holtek) - 10
| 制造商 | Holtek |
| 描述 | 212 Series of Decoders |
| 页数 / 页 | 12 / 10 — HT12D/HT12F. Product Tape and Reel Specifications. Reel Dimensions. … |
| 文件格式/大小 | PDF / 115 Kb |
| 文件语言 | 英语 |

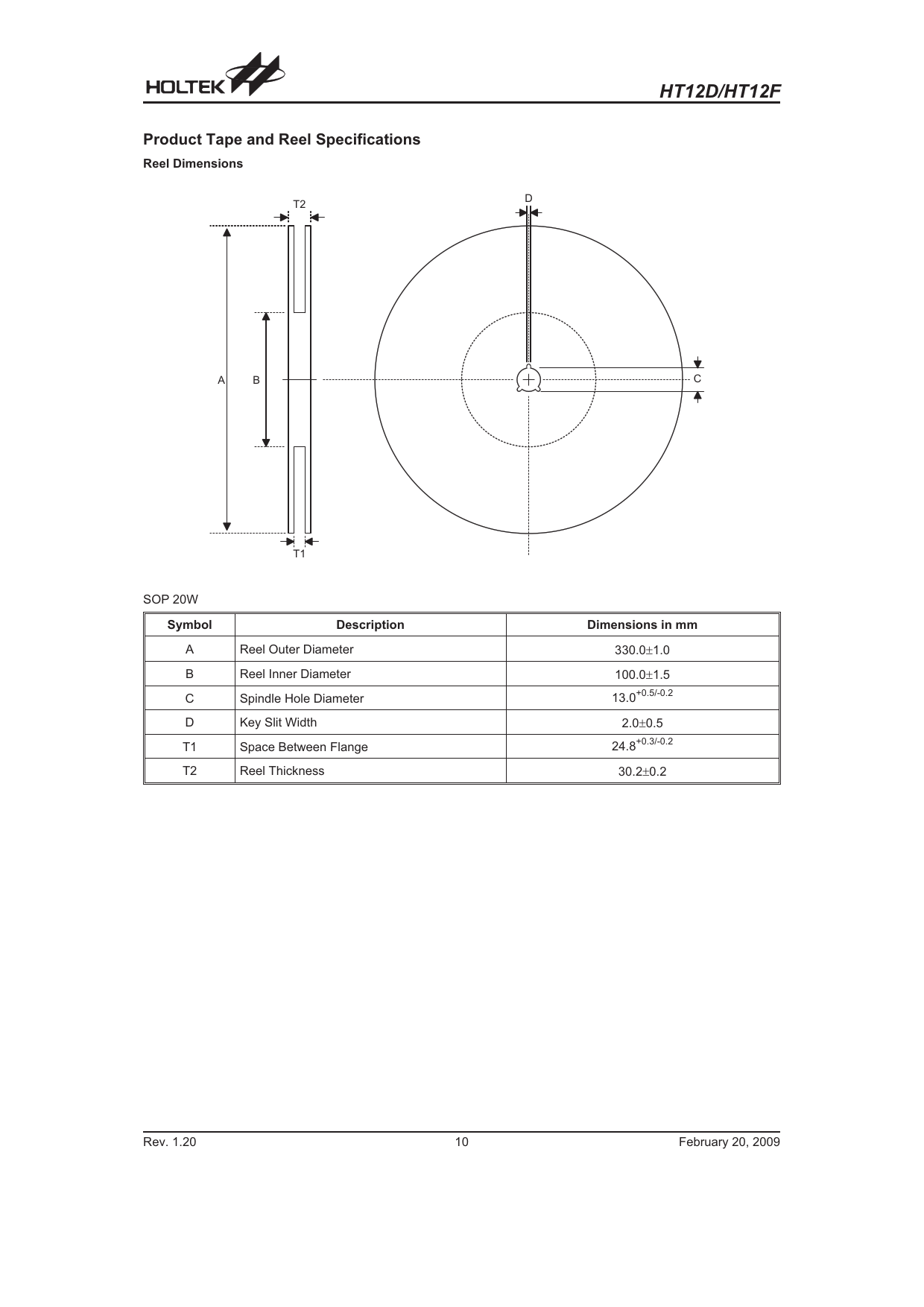

HT12D/HT12F. Product Tape and Reel Specifications. Reel Dimensions. Symbol. Description. Dimensions in mm
该数据表的模型线
文件文字版本
HT12D/HT12F Product Tape and Reel Specifications Reel Dimensions
T 2 D A B C T 1 SOP 20W
Symbol Description Dimensions in mm
A Reel Outer Diameter 330.0±1.0 B Reel Inner Diameter 100.0±1.5 C Spindle Hole Diameter 13.0+0.5/-0.2 D Key Slit Width 2.0±0.5 T1 Space Between Flange 24.8+0.3/-0.2 T2 Reel Thickness 30.2±0.2 Rev. 1.20 10 February 20, 2009 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Electrical Characteristics Functional Description Application Circuits Package Information Product Tape and Reel Specifications
