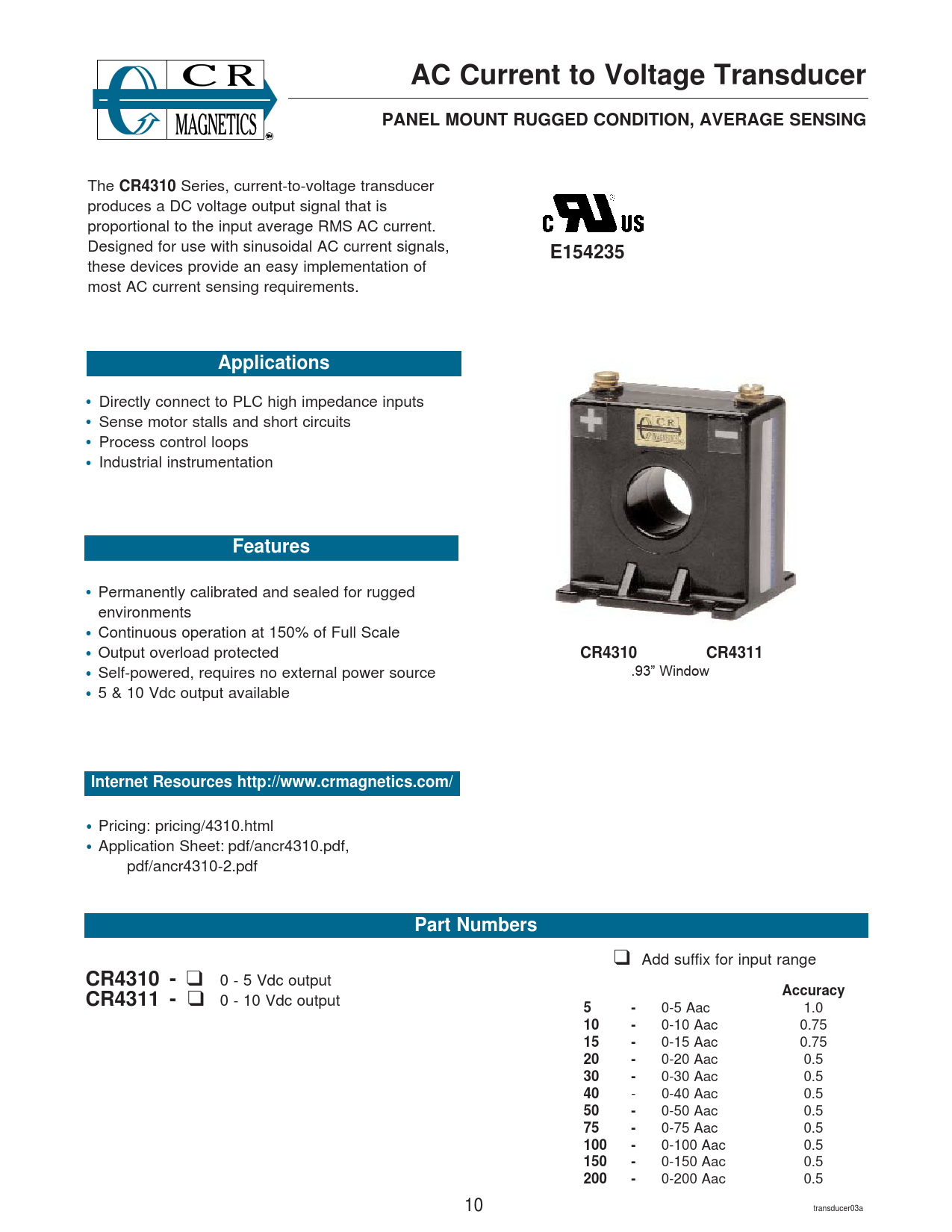

AC Current to Voltage Transducer PANEL MOUNT RUGGED CONDITION, AVERAGE SENSING
The
CR4310
Series, current-to-voltage transducer produces a DC voltage output signal that is proportional to the input average RMS AC current. Designed for use with sinusoidal AC current signals,
E154235
these devices provide an easy implementation of most AC current sensing requirements.
Applications
• Directly connect to PLC high impedance inputs • Sense motor stalls and short circuits • Process control loops • Industrial instrumentation
Features
• Permanently calibrated and sealed for rugged environments • Continuous operation at 150% of Full Scale • Output overload protected
CR4310 CR4311
• Self-powered, requires no external power source .93” Window • 5 & 10 Vdc output available
Internet Resources http://www.crmagnetics.com/
• Pricing: pricing/4310.html • Application Sheet: pdf/ancr4310.pdf, pdf/ancr4310-2.pdf
Part Numbers
❑ Add suffix for input range
CR4310 -
❑ 0 - 5 Vdc output
Accuracy CR4311 -
❑ 0 - 10 Vdc output
5 -
0-5 Aac 1.0
10 -
0-10 Aac 0.75
15 -
0-15 Aac 0.75
20 -
0-20 Aac 0.5
30 -
0-30 Aac 0.5
40
- 0-40 Aac 0.5
50 -
0-50 Aac 0.5
75 -
0-75 Aac 0.5
100 -
0-100 Aac 0.5
150 -
0-150 Aac 0.5
200 -
0-200 Aac 0.5 10 transducer03a
