Datasheet LM3722, LM3723, LM3724 (Texas Instruments) - 18
| 制造商 | Texas Instruments |
| 描述 | 5-Pin Microprocessor Reset Circuits |
| 页数 / 页 | 20 / 18 — EXAMPLE BOARD LAYOUT. DBV0005A. SOT-23 - 1.45 mm max height |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |

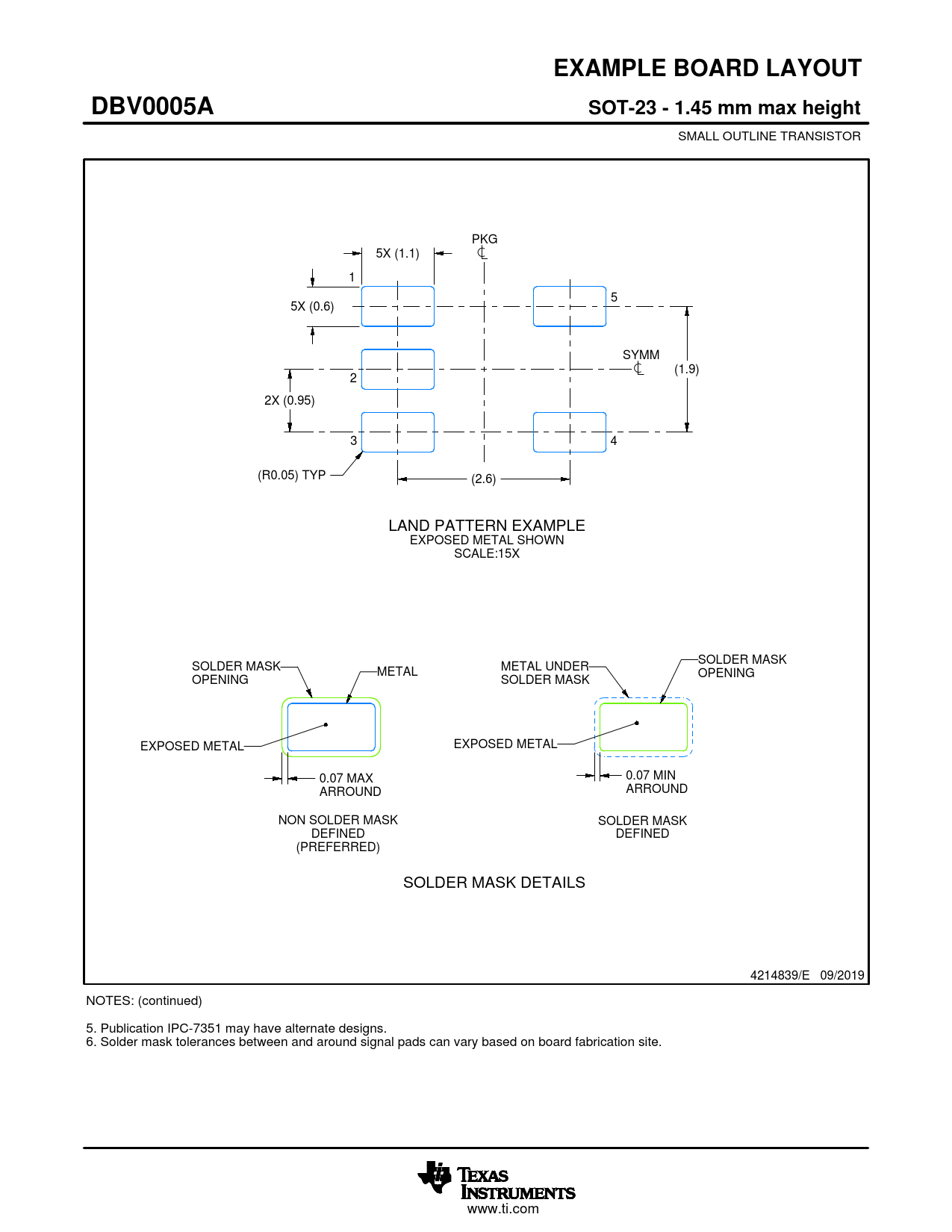

EXAMPLE BOARD LAYOUT. DBV0005A. SOT-23 - 1.45 mm max height
该数据表的模型线
文件文字版本
EXAMPLE BOARD LAYOUT DBV0005A SOT-23 - 1.45 mm max height
SMALL OUTLINE TRANSISTOR PKG 5X (1.1) 1 5 5X (0.6) SYMM (1.9) 2 2X (0.95) 3 4 (R0.05) TYP (2.6) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE:15X SOLDER MASK SOLDER MASK METAL UNDER METAL OPENING OPENING SOLDER MASK EXPOSED METAL EXPOSED METAL 0.07 MAX 0.07 MIN ARROUND ARROUND NON SOLDER MASK SOLDER MASK DEFINED DEFINED (PREFERRED) SOLDER MASK DETAILS 4214839/E 09/2019 NOTES: (continued) 5. Publication IPC-7351 may have alternate designs. 6. Solder mask tolerances between and around signal pads can vary based on board fabrication site. www.ti.com Document Outline FEATURES APPLICATIONS DESCRIPTION Typical Application Circuits Connection Diagram Absolute Maximum Ratings Electrical Characteristics Typical Performance Characteristics Timing Diagram Circuit Information RESET OUTPUT RESET THRESHOLD MANUAL RESET INPUT (MR) Applications Information BENEFITS OF PRECISION RESET THRESHOLDS ENSURING A VALID RESET OUTPUT DOWN TO VCC = 0V OPEN DRAIN OUTPUT (LM3724) NEGATIVE-GOING VCC TRANSIENTS INTERFACING TO µPS WITH BIDIRECTIONAL RESET PINS Typical Application Circuits Revision History
SMALL OUTLINE TRANSISTOR PKG 5X (1.1) 1 5 5X (0.6) SYMM (1.9) 2 2X (0.95) 3 4 (R0.05) TYP (2.6) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE:15X SOLDER MASK SOLDER MASK METAL UNDER METAL OPENING OPENING SOLDER MASK EXPOSED METAL EXPOSED METAL 0.07 MAX 0.07 MIN ARROUND ARROUND NON SOLDER MASK SOLDER MASK DEFINED DEFINED (PREFERRED) SOLDER MASK DETAILS 4214839/E 09/2019 NOTES: (continued) 5. Publication IPC-7351 may have alternate designs. 6. Solder mask tolerances between and around signal pads can vary based on board fabrication site. www.ti.com Document Outline FEATURES APPLICATIONS DESCRIPTION Typical Application Circuits Connection Diagram Absolute Maximum Ratings Electrical Characteristics Typical Performance Characteristics Timing Diagram Circuit Information RESET OUTPUT RESET THRESHOLD MANUAL RESET INPUT (MR) Applications Information BENEFITS OF PRECISION RESET THRESHOLDS ENSURING A VALID RESET OUTPUT DOWN TO VCC = 0V OPEN DRAIN OUTPUT (LM3724) NEGATIVE-GOING VCC TRANSIENTS INTERFACING TO µPS WITH BIDIRECTIONAL RESET PINS Typical Application Circuits Revision History
