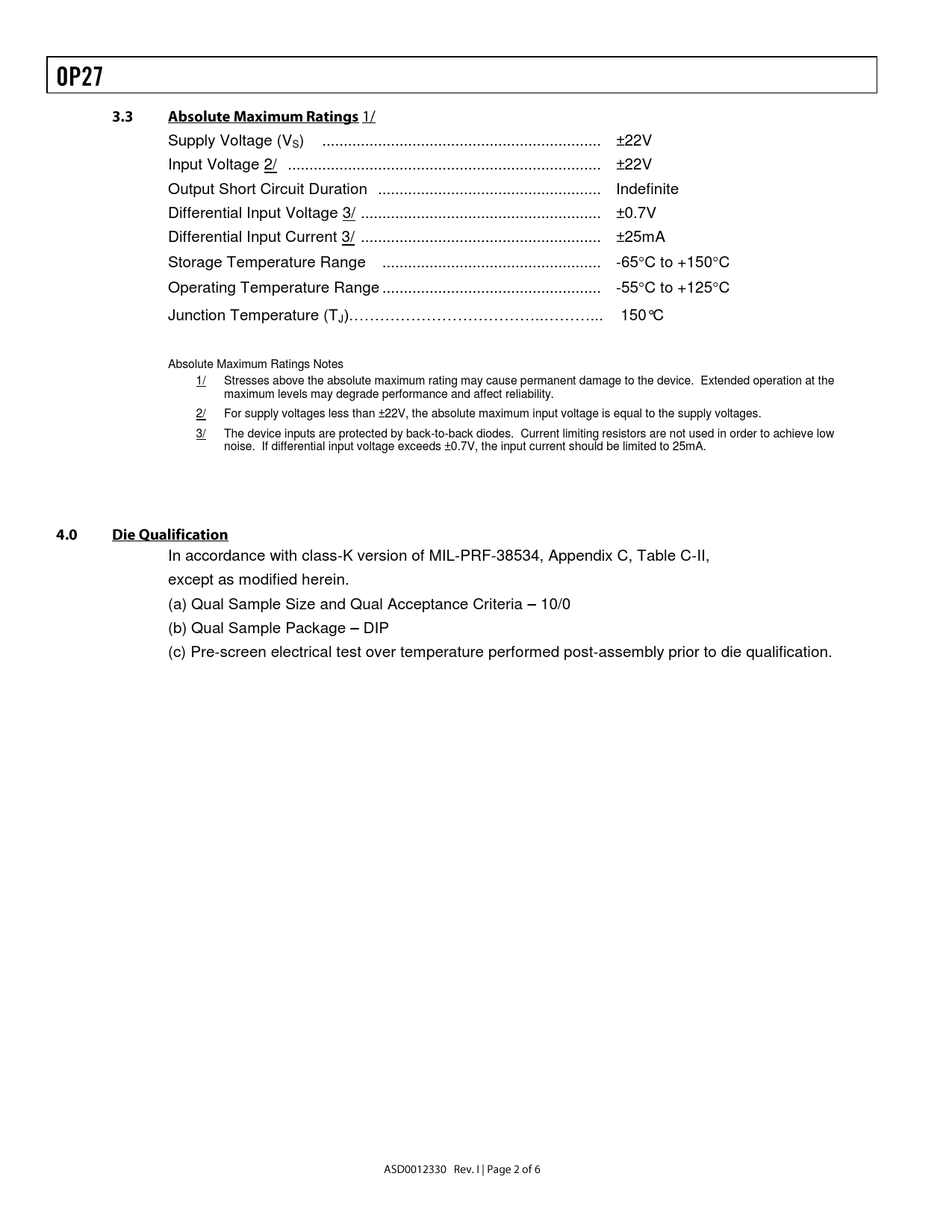

Datasheet OP27S (Analog Devices) - 2

Supply Voltage (VS) ... ±22V Input Voltage 2/ ... ±22V Output Short Circuit Duration .. Indefinite Differential Input Voltage 3/ .. ±0.7V Differential Input Current 3/ .. ±25mA Storage Temperature Range ... -65C to +150C Operating Temperature Range ... -55C to +125C Junction Temperature (T )………………………………..………... J 150°C Absolute Maximum Ratings Notes 1/ Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability. 2/ For supply voltages less than ±22V, the absolute maximum input voltage is equal to the supply voltages. 3/ The device inputs are protected by back-to-back diodes. Current limiting resistors are not used in order to achieve low noise. If differential input voltage exceeds ±0.7V, the input current should be limited to 25mA.

In accordance with class-K version of MIL-PRF-38534, Appendix C, Table C-II, except as modified herein. (a) Qual Sample Size and Qual Acceptance Criteria – 10/0 (b) Qual Sample Package – DIP (c) Pre-screen electrical test over temperature performed post-assembly prior to die qualification.
