Datasheet OP484S (Analog Devices)

制造商Analog Devices
描述Precision, Rail-to-Rail Input and Output, Quad Operational Amplifier
页数 / 页5 / 1 — This. specification. documents. the. detailed. requirements. for. Analog. …
修订版H
文件格式/大小PDF / 665 Kb
文件语言英语

This. specification. documents. the. detailed. requirements. for. Analog. Devices. space. qualified. die. including. die. qualification. as. described

Datasheet OP484S Analog Devices, 修订版: H

该数据表的模型线

文件文字版本

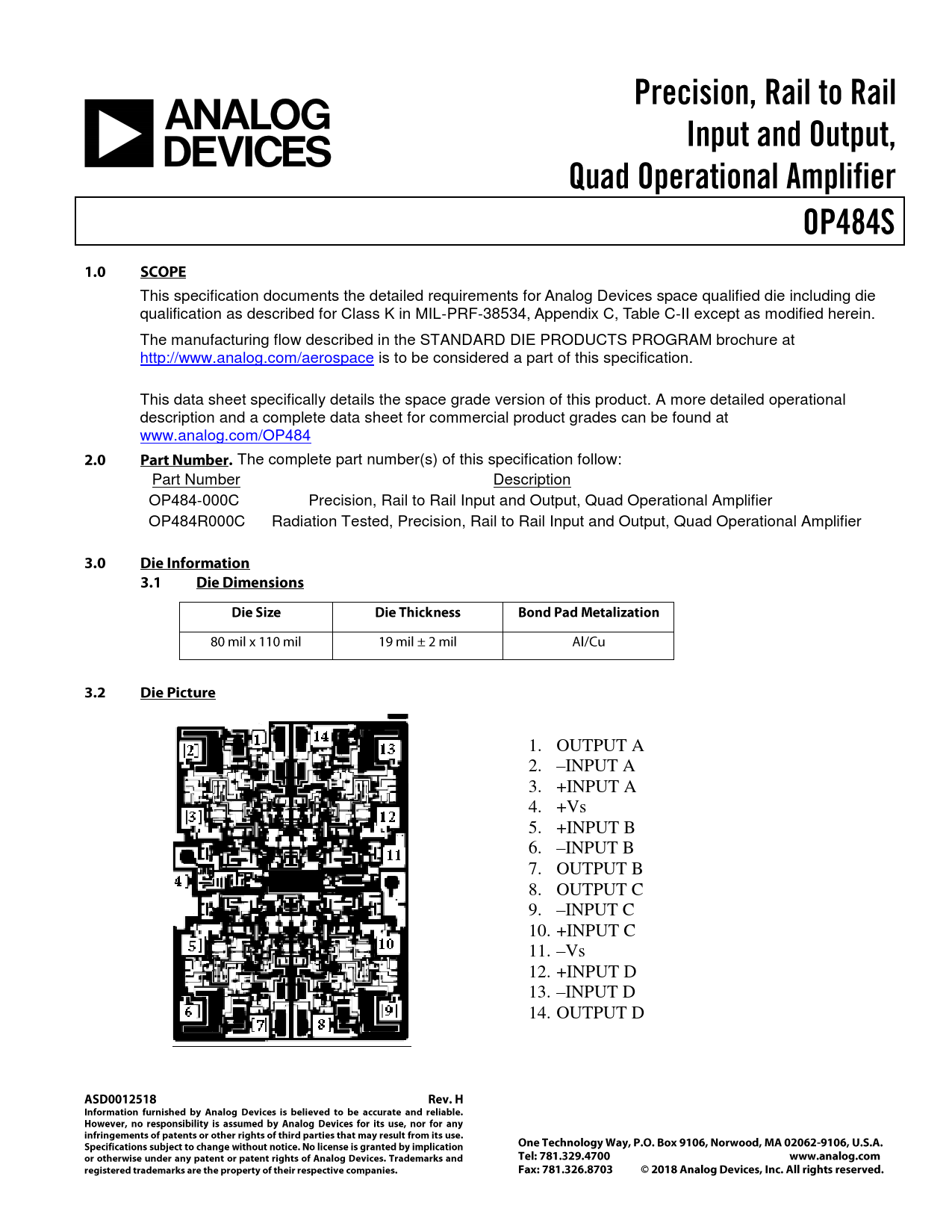

This specification documents the detailed requirements for Analog Devices space qualified die including die qualification as described for Class K in MIL-PRF-38534, Appendix C, Table C-II except as modified herein. The manufacturing flow described in the STANDARD DIE PRODUCTS PROGRAM brochure at http://www.analog.com/aerospace is to be considered a part of this specification. This data sheet specifically details the space grade version of this product. A more detailed operational description and a complete data sheet for commercial product grades can be found at www.analog.com/OP484

The complete part number(s) of this specification follow: Part Number Description OP484-000C Precision, Rail to Rail Input and Output, Quad Operational Amplifier OP484R000C

Radiation Tested, Precision, Rail to Rail Input and Output, Quad Operational Amplifier

1. OUTPUT A 2. –INPUT A 3. +INPUT A 4. +Vs 5. +INPUT B 6. –INPUT B 7. OUTPUT B 8. OUTPUT C 9. –INPUT C 10. +INPUT C 11. –Vs 12. +INPUT D 13. –INPUT D 14. OUTPUT D
