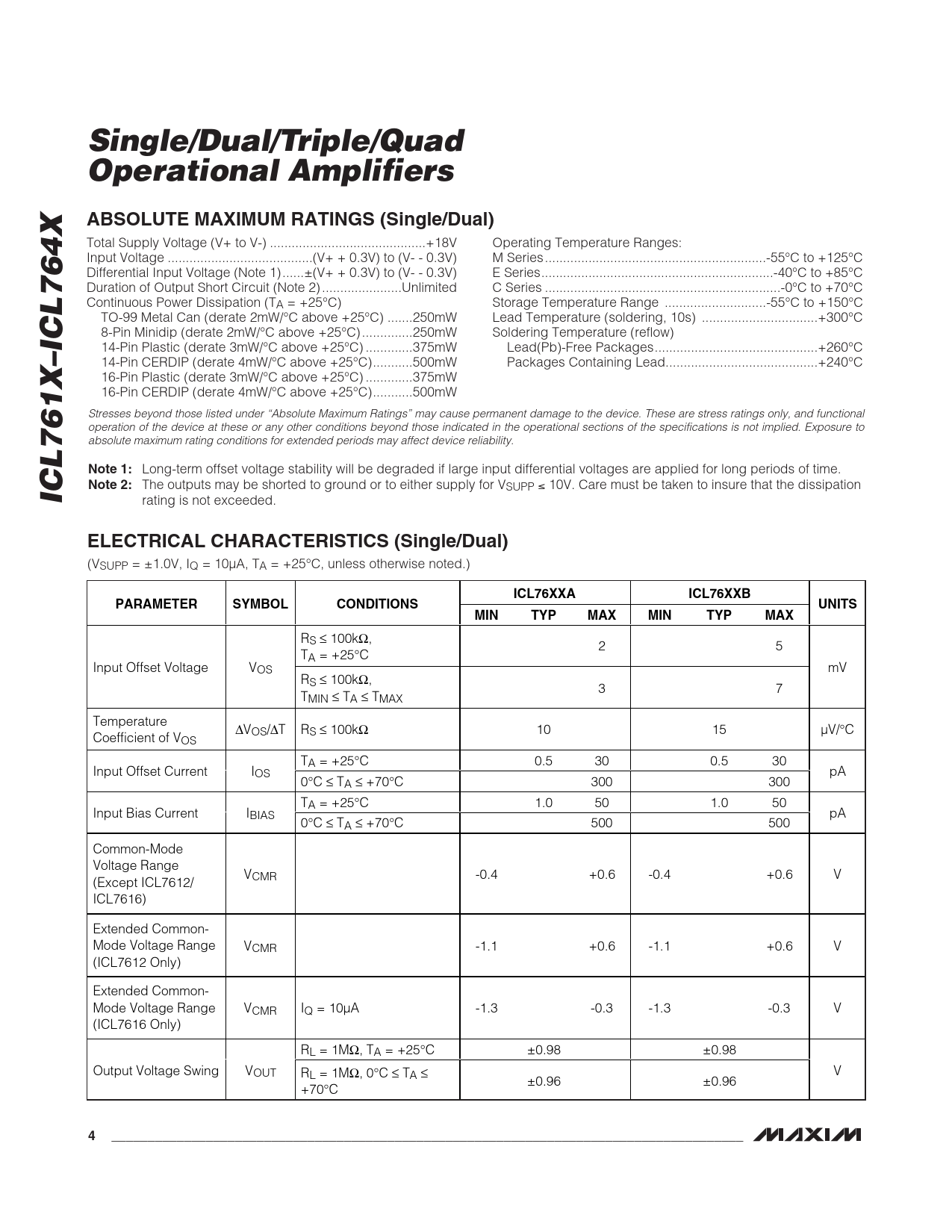

Single/Dual/Triple/Quad Operational Amplifiers ABSOLUTE MAXIMUM RATINGS (Single/Dual)
Total Supply Voltage (V+ to V-) ...+18V Operating Temperature Ranges: Input Voltage ..(V+ + 0.3V) to (V- - 0.3V) M Series ...-55°C to +125°C Differential Input Voltage (Note 1) ..±(V+ + 0.3V) to (V- - 0.3V) E Series..-40°C to +85°C Duration of Output Short Circuit (Note 2) ..Unlimited C Series ...-0°C to +70°C Continuous Power Dissipation (TA = +25°C) Storage Temperature Range ..-55°C to +150°C TO-99 Metal Can (derate 2mW/°C above +25°C) ...250mW Lead Temperature (soldering, 10s) ..+300°C 8-Pin Minidip (derate 2mW/°C above +25°C) ..250mW Soldering Temperature (reflow) 14-Pin Plastic (derate 3mW/°C above +25°C) ...375mW Lead(Pb)-Free Packages...+260°C 14-Pin CERDIP (derate 4mW/°C above +25°C)...500mW Packages Containing Lead..+240°C 16-Pin Plastic (derate 3mW/°C above +25°C) ...375mW 16-Pin CERDIP (derate 4mW/°C above +25°C)...500mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 1:
Long-term offset voltage stability will be degraded if large input differential voltages are applied for long periods of time.
ICL761X–ICL764X Note 2:
The outputs may be shorted to ground or to either supply for VSUPP ≤ 10V. Care must be taken to insure that the dissipation rating is not exceeded.
ELECTRICAL CHARACTERISTICS (Single/Dual)
(VSUPP = ±1.0V, IQ = 10µA, TA = +25°C, unless otherwise noted.)
ICL76XXA ICL76XXB PARAMETER SYMBOL CONDITIONS UNITS MIN TYP MAX MIN TYP MAX
RS ≤ 100kΩ, 2 5 TA = +25°C Input Offset Voltage VOS mV RS ≤ 100kΩ, 3 7 TMIN ≤ TA ≤ TMAX Temperature ΔVOS/ΔT RS ≤ 100kΩ 10 15 µV/°C Coefficient of VOS TA = +25°C 0.5 30 0.5 30 Input Offset Current IOS pA 0°C ≤ TA ≤ +70°C 300 300 TA = +25°C 1.0 50 1.0 50 Input Bias Current IBIAS pA 0°C ≤ TA ≤ +70°C 500 500 Common-Mode Voltage Range VCMR -0.4 +0.6 -0.4 +0.6 V (Except ICL7612/ ICL7616) Extended Common- Mode Voltage Range VCMR -1.1 +0.6 -1.1 +0.6 V (ICL7612 Only) Extended Common- Mode Voltage Range VCMR IQ = 10µA -1.3 -0.3 -1.3 -0.3 V (ICL7616 Only) RL = 1MΩ, TA = +25°C ±0.98 ±0.98 Output Voltage Swing VOUT RL = 1MΩ, 0°C ≤ TA ≤ V ±0.96 ±0.96 +70°C
4 _______________________________________________________________________________________
