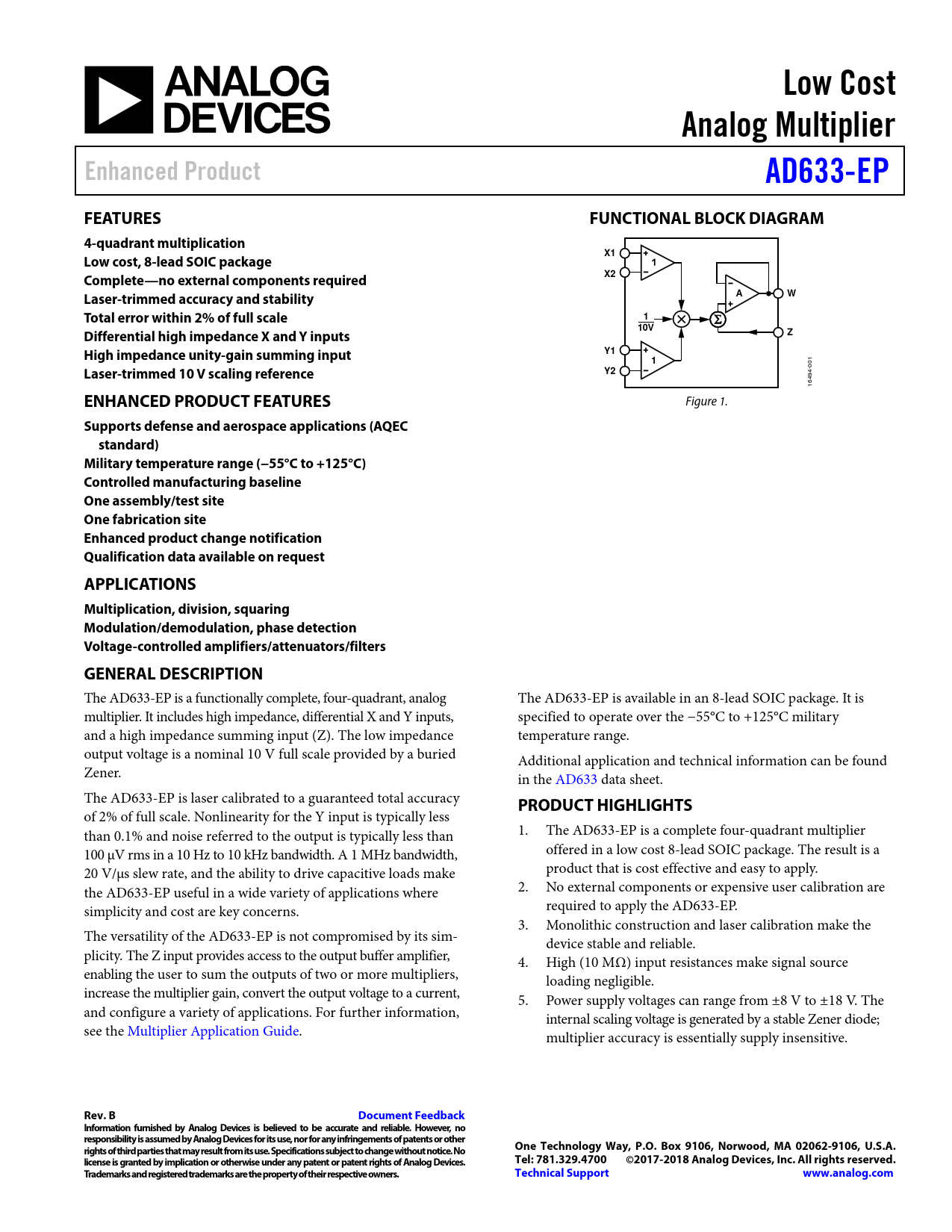

Low Cost. Analog Multiplier. Enhanced Product. AD633-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 4-quadrant multiplication

Datasheet AD633-EP Analog Devices, 修订版: B

该数据表的模型线

文件文字版本

Low Cost Analog Multiplier Enhanced Product AD633-EP FEATURES FUNCTIONAL BLOCK DIAGRAM 4-quadrant multiplication X1 Low cost, 8-lead SOIC package Complete—no external components required X2 Laser-trimmed accuracy and stability A W Total error within 2% of full scale 1 10V Differential high impedance X and Y inputs Z High impedance unity-gain summing input Y1 1
001
Laser-trimmed 10 V scaling reference Y2
16494-
ENHANCED PRODUCT FEATURES
Figure 1.
Supports defense and aerospace applications (AQEC standard) Military temperature range (−55°C to +125°C) Controlled manufacturing baseline One assembly/test site One fabrication site Enhanced product change notification Qualification data available on request APPLICATIONS Multiplication, division, squaring Modulation/demodulation, phase detection Voltage-controlled amplifiers/attenuators/filters GENERAL DESCRIPTION
The AD633-EP is a functional y complete, four-quadrant, analog The AD633-EP is available in an 8-lead SOIC package. It is multiplier. It includes high impedance, differential X and Y inputs, specified to operate over the −55°C to +125°C military and a high impedance summing input (Z). The low impedance temperature range. output voltage is a nominal 10 V full scale provided by a buried Additional application and technical information can be found Zener. in the AD633 data sheet. The AD633-EP is laser calibrated to a guaranteed total accuracy
PRODUCT HIGHLIGHTS
of 2% of full scale. Nonlinearity for the Y input is typically less than 0.1% and noise referred to the output is typically less than 1. The AD633-EP is a complete four-quadrant multiplier 100 µV rms in a 10 Hz to 10 kHz bandwidth. A 1 MHz bandwidth, offered in a low cost 8-lead SOIC package. The result is a 20 V/µs slew rate, and the ability to drive capacitive loads make product that is cost effective and easy to apply. the AD633-EP useful in a wide variety of applications where 2. No external components or expensive user calibration are simplicity and cost are key concerns. required to apply the AD633-EP. 3. Monolithic construction and laser calibration make the The versatility of the AD633-EP is not compromised by its sim- device stable and reliable. plicity. The Z input provides access to the output buffer amplifier, 4. High (10 MΩ) input resistances make signal source enabling the user to sum the outputs of two or more multipliers, loading negligible. increase the multiplier gain, convert the output voltage to a current, 5. Power supply voltages can range from ±8 V to ±18 V. The and configure a variety of applications. For further information, internal scaling voltage is generated by a stable Zener diode; see the Multiplier Application Guide. multiplier accuracy is essentially supply insensitive.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017-2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings Thermal Resistance Power Derating Curve ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
