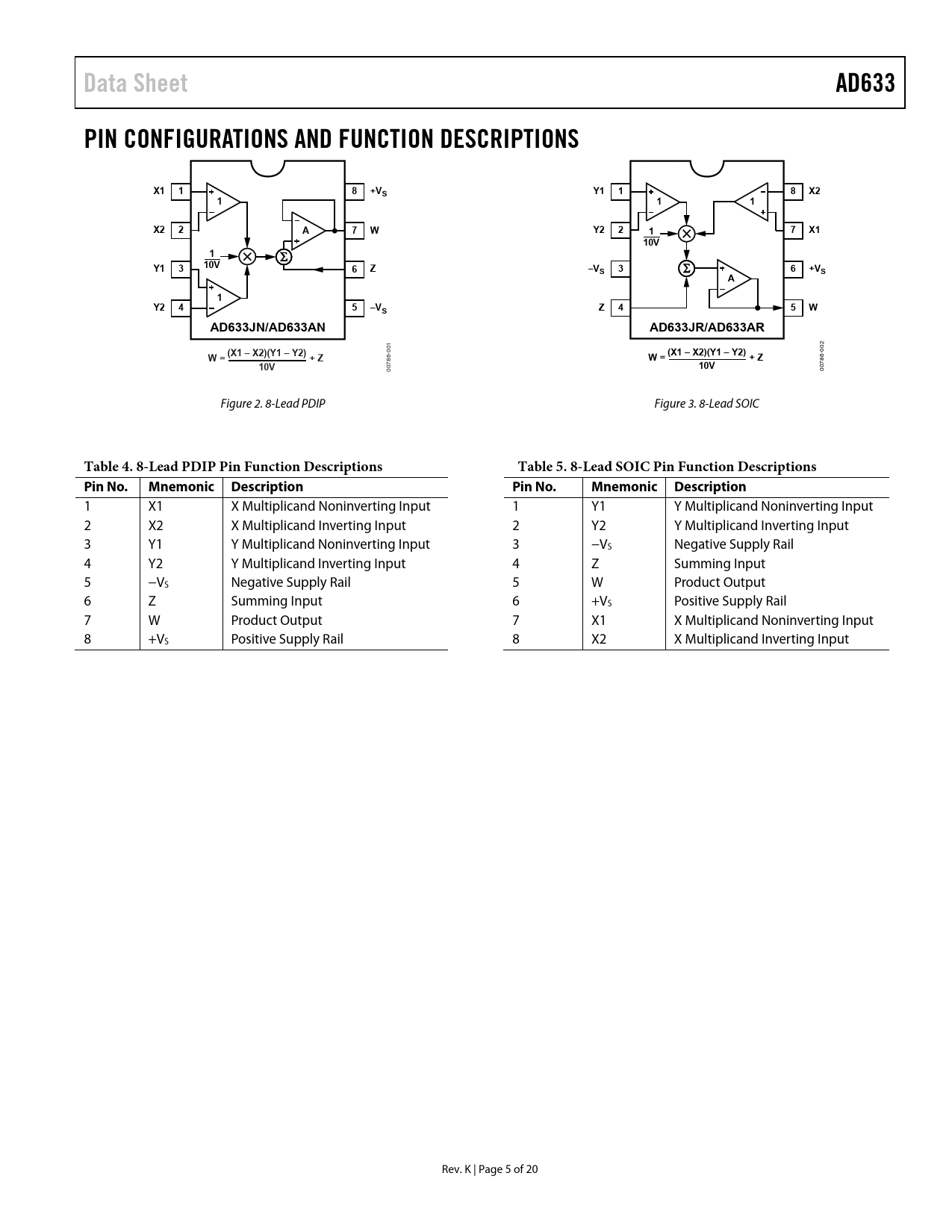

Data Sheet AD633 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS X1 1 8 +VS Y1 1 8 X2 1 1 1 X2 2 A 7 W Y2 2 1 7 X1 10V 1 10V Y1 3 6 Z –V 3 S 6 +VS A 1 Y2 4 5 –VS Z 4 5 W AD633JN/AD633AN AD633JR/AD633AR
1 2 -00
(X1 – X2)(Y1 – Y2)
-00
(X1 – X2)(Y1 – Y2) W = + Z W = + Z
86 786
10V 10V
00 007 Figure 2. 8-Lead PDIP Figure 3. 8-Lead SOIC
Table 4. 8-Lead PDIP Pin Function Descriptions Table 5. 8-Lead SOIC Pin Function Descriptions Pin No. Mnemonic Description Pin No. Mnemonic Description
1 X1 X Multiplicand Noninverting Input 1 Y1 Y Multiplicand Noninverting Input 2 X2 X Multiplicand Inverting Input 2 Y2 Y Multiplicand Inverting Input 3 Y1 Y Multiplicand Noninverting Input 3 −VS Negative Supply Rail 4 Y2 Y Multiplicand Inverting Input 4 Z Summing Input 5 −VS Negative Supply Rail 5 W Product Output 6 Z Summing Input 6 +VS Positive Supply Rail 7 W Product Output 7 X1 X Multiplicand Noninverting Input 8 +VS Positive Supply Rail 8 X2 X Multiplicand Inverting Input Rev. K | Page 5 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL DESCRIPTION ERROR SOURCES APPLICATIONS INFORMATION MULTIPLIER CONNECTIONS SQUARING AND FREQUENCY DOUBLING GENERATING INVERSE FUNCTIONS VARIABLE SCALE FACTOR CURRENT OUTPUT LINEAR AMPLITUDE MODULATOR VOLTAGE-CONTROLLED, LOW-PASS AND HIGH-PASS FILTERS VOLTAGE-CONTROLLED QUADRATURE OSCILLATOR AUTOMATIC GAIN CONTROL (AGC) AMPLIFIERS MODEL RESULTS EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS USING MULTISIM EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS USING PSPICE EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS USING SIMETRIX EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
