Datasheet EFM8LB1 (Silicon Labs) - 63
| 制造商 | Silicon Labs |
| 描述 | EFM8 Laser Bee Family |
| 页数 / 页 | 77 / 63 — 8. QFP32 Package Specifications. 8.1 Package Dimensions. Figure 8.1. … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |
8. QFP32 Package Specifications. 8.1 Package Dimensions. Figure 8.1. Package Drawing. Table 8.1. Package Dimensions. Dimension
该数据表的模型线
- EFM8LB10F16E-C-QFN24 EFM8LB10F16E-C-QFN32 EFM8LB10F16E-C-QFP32 EFM8LB10F16E-C-QSOP24 EFM8LB10F16ES0-C-QFN24 EFM8LB10F16ES0-C-QFN32 EFM8LB10F16ES1-C-QFN24 EFM8LB10F16ES1-C-QFN32 EFM8LB11F16E-C-QFN24 EFM8LB11F16E-C-QFN32 EFM8LB11F16E-C-QFP32 EFM8LB11F16E-C-QSOP24 EFM8LB11F16ES0-C-QFN24 EFM8LB11F16ES0-C-QFN32 EFM8LB11F16ES1-C-QFN24 EFM8LB11F16ES1-C-QFN32 EFM8LB11F32E-C-QFN24 EFM8LB11F32E-C-QFN32 EFM8LB11F32E-C-QFP32 EFM8LB11F32E-C-QSOP24 EFM8LB11F32ES0-C-QFN24 EFM8LB11F32ES0-C-QFN32 EFM8LB11F32ES1-C-QFN24 EFM8LB11F32ES1-C-QFN32 EFM8LB12F32E-C-QFN24 EFM8LB12F32E-C-QFN32 EFM8LB12F32E-C-QFP32 EFM8LB12F32E-C-QSOP24 EFM8LB12F32ES0-C-QFN24 EFM8LB12F32ES0-C-QFN32 EFM8LB12F32ES1-C-QFN24 EFM8LB12F32ES1-C-QFN32 EFM8LB12F64E-C-QFN24 EFM8LB12F64E-C-QFN32 EFM8LB12F64E-C-QFP32 EFM8LB12F64E-C-QSOP24 EFM8LB12F64ES0-C-QFN24 EFM8LB12F64ES0-C-QFN32 EFM8LB12F64ES1-C-QFN24 EFM8LB12F64ES1-C-QFN32
文件文字版本
EFM8LB1 Data Sheet QFP32 Package Specifications

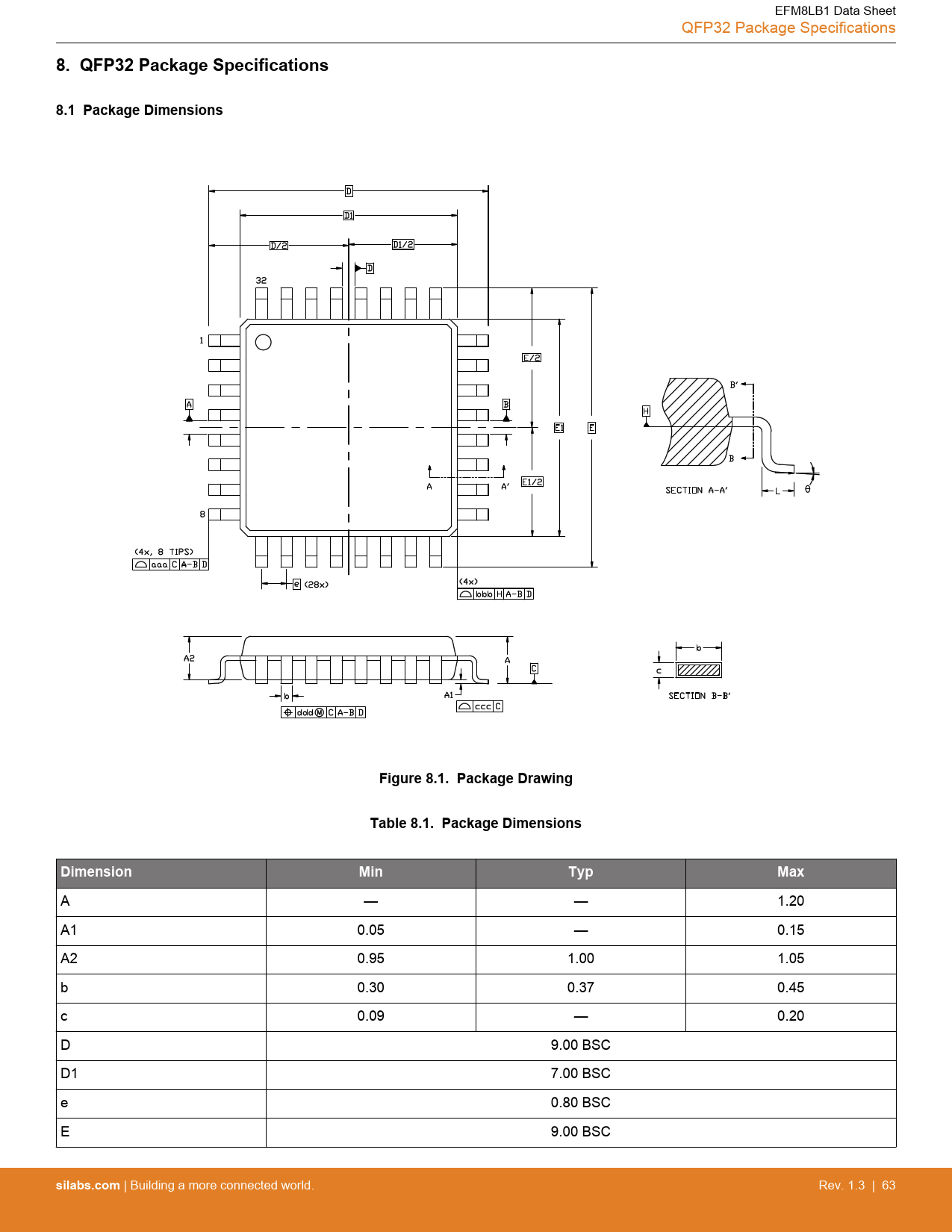

8. QFP32 Package Specifications 8.1 Package Dimensions Figure 8.1. Package Drawing Table 8.1. Package Dimensions Dimension Min Typ Max
A — — 1.20 A1 0.05 — 0.15 A2 0.95 1.00 1.05 b 0.30 0.37 0.45 c 0.09 — 0.20 D 9.00 BSC D1 7.00 BSC e 0.80 BSC E 9.00 BSC
silabs.com
| Building a more connected world. Rev. 1.3 | 63 Document Outline 1. Feature List 2. Ordering Information 3. System Overview 3.1 Introduction 3.2 Power 3.3 I/O 3.4 Clocking 3.5 Counters/Timers and PWM 3.6 Communications and Other Digital Peripherals 3.7 Analog 3.8 Reset Sources 3.9 Debugging 3.10 Bootloader 4. Electrical Specifications 4.1 Electrical Characteristics 4.1.1 Recommended Operating Conditions 4.1.2 Power Consumption 4.1.3 Reset and Supply Monitor 4.1.4 Flash Memory 4.1.5 Power Management Timing 4.1.6 Internal Oscillators 4.1.7 External Clock Input 4.1.8 External Oscillator 4.1.9 ADC 4.1.10 Voltage Reference 4.1.11 Temperature Sensor 4.1.12 1.8 V Internal LDO Voltage Regulator 4.1.13 DACs 4.1.14 Comparators 4.1.15 Configurable Logic 4.1.16 Port I/O 4.1.17 SMBus 4.2 Thermal Conditions 4.3 Absolute Maximum Ratings 5. Typical Connection Diagrams 5.1 Power 5.2 Debug 5.3 Other Connections 6. Pin Definitions 6.1 EFM8LB1x-QFN32 Pin Definitions 6.2 EFM8LB1x-QFP32 Pin Definitions 6.3 EFM8LB1x-QFN24 Pin Definitions 6.4 EFM8LB1x-QSOP24 Pin Definitions 7. QFN32 Package Specifications 7.1 Package Dimensions 7.2 PCB Land Pattern 7.3 Package Marking 8. QFP32 Package Specifications 8.1 Package Dimensions 8.2 PCB Land Pattern 8.3 Package Marking 9. QFN24 Package Specifications 9.1 Package Dimensions 9.2 PCB Land Pattern 9.3 Package Marking 10. QSOP24 Package Specifications 10.1 Package Dimensions 10.2 PCB Land Pattern 10.3 Package Marking 11. Revision History
8. QFP32 Package Specifications 8.1 Package Dimensions Figure 8.1. Package Drawing Table 8.1. Package Dimensions Dimension Min Typ Max
A — — 1.20 A1 0.05 — 0.15 A2 0.95 1.00 1.05 b 0.30 0.37 0.45 c 0.09 — 0.20 D 9.00 BSC D1 7.00 BSC e 0.80 BSC E 9.00 BSC
