Datasheet LT3065 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | 45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Power Good |
| 页数 / 页 | 28 / 4 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| 修订版 | D |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |
ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
该数据表的模型线
- LT3065EDD#PBF LT3065EDD#TRPBF LT3065EDD-1.2#PBF LT3065EDD-1.2#TRPBF LT3065EDD-1.5#PBF LT3065EDD-1.5#TRPBF LT3065EDD-1.8#PBF LT3065EDD-1.8#TRPBF LT3065EDD-2.5#PBF LT3065EDD-2.5#TRPBF LT3065EDD-3.3#PBF LT3065EDD-3.3#TRPBF LT3065EDD-5#PBF LT3065EDD-5#TRPBF LT3065EMSE#PBF LT3065EMSE#TRPBF LT3065EMSE-1.2#PBF LT3065EMSE-1.2#TRPBF LT3065EMSE-1.5#PBF LT3065EMSE-1.5#TRPBF LT3065EMSE-1.8#PBF LT3065EMSE-1.8#TRPBF LT3065EMSE-2.5#PBF LT3065EMSE-2.5#TRPBF LT3065EMSE-3.3#PBF LT3065EMSE-3.3#TRPBF LT3065EMSE-5#PBF LT3065EMSE-5#TRPBF LT3065HDD#PBF LT3065HDD#TRPBF LT3065HDD-1.2#PBF LT3065HDD-1.2#TRPBF LT3065HDD-1.5#PBF LT3065HDD-1.5#TRPBF LT3065HDD-1.8#PBF LT3065HDD-1.8#TRPBF LT3065HDD-2.5#PBF LT3065HDD-2.5#TRPBF LT3065HDD-3.3#PBF LT3065HDD-3.3#TRPBF LT3065HDD-5#PBF LT3065HDD-5#TRPBF LT3065HMSE#PBF LT3065HMSE#TRPBF LT3065HMSE-1.2#PBF LT3065HMSE-1.2#TRPBF LT3065HMSE-1.5#PBF LT3065HMSE-1.5#TRPBF LT3065HMSE-1.8#PBF LT3065HMSE-1.8#TRPBF LT3065HMSE-2.5#PBF LT3065HMSE-2.5#TRPBF LT3065HMSE-3.3#PBF LT3065HMSE-3.3#TRPBF LT3065HMSE-5#PBF LT3065HMSE-5#TRPBF LT3065IDD#PBF LT3065IDD#TRPBF LT3065IDD-1.2#PBF LT3065IDD-1.2#TRPBF LT3065IDD-1.5#PBF LT3065IDD-1.5#TRPBF LT3065IDD-1.8#PBF LT3065IDD-1.8#TRPBF LT3065IDD-2.5#PBF LT3065IDD-2.5#TRPBF LT3065IDD-3.3#PBF LT3065IDD-3.3#TRPBF LT3065IDD-5#PBF LT3065IDD-5#TRPBF LT3065IMSE#PBF LT3065IMSE#TRPBF LT3065IMSE-1.2#PBF LT3065IMSE-1.2#TRPBF LT3065IMSE-1.5#PBF LT3065IMSE-1.5#TRPBF LT3065IMSE-1.8#PBF LT3065IMSE-1.8#TRPBF LT3065IMSE-2.5#PBF LT3065IMSE-2.5#TRPBF LT3065IMSE-3.3#PBF LT3065IMSE-3.3#TRPBF LT3065IMSE-5#PBF LT3065IMSE-5#TRPBF LT3065MPDD#PBF LT3065MPDD#TRPBF LT3065MPDD-1.2#PBF LT3065MPDD-1.2#TRPBF LT3065MPDD-1.5#PBF LT3065MPDD-1.5#TRPBF LT3065MPDD-1.8#PBF LT3065MPDD-1.8#TRPBF LT3065MPDD-2.5#PBF LT3065MPDD-2.5#TRPBF LT3065MPDD-3.3#PBF LT3065MPDD-3.3#TRPBF LT3065MPDD-5#PBF LT3065MPDD-5#TRPBF LT3065MPMSE#PBF LT3065MPMSE#TRPBF LT3065MPMSE-1.2#PBF LT3065MPMSE-1.2#TRPBF LT3065MPMSE-1.5#PBF LT3065MPMSE-1.5#TRPBF LT3065MPMSE-1.8#PBF LT3065MPMSE-1.8#TRPBF LT3065MPMSE-2.5#PBF LT3065MPMSE-2.5#TRPBF LT3065MPMSE-3.3#PBF LT3065MPMSE-3.3#TRPBF LT3065MPMSE-5#PBF LT3065MPMSE-5#TRPBF
文件文字版本
LT3065 Series

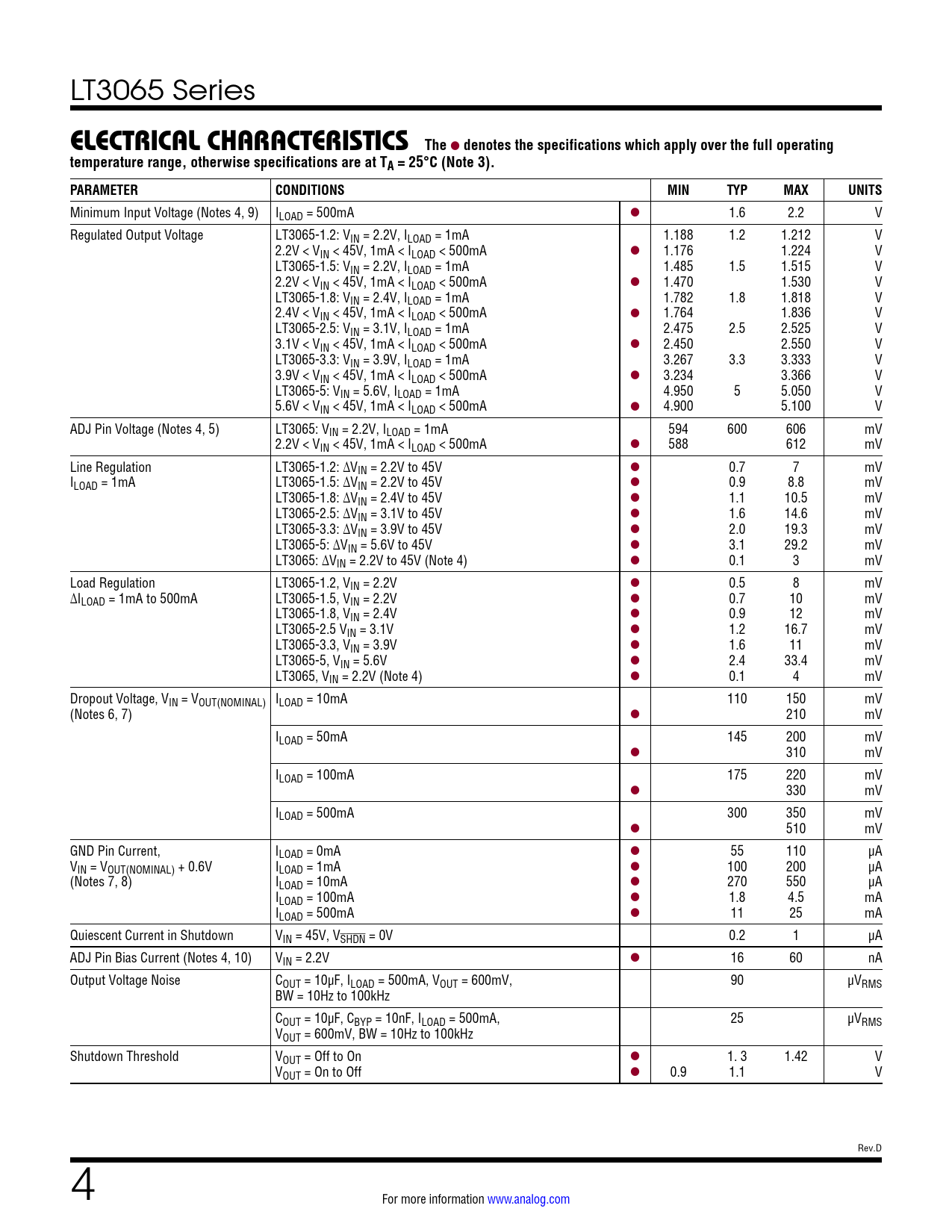

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C (Note 3). PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage (Notes 4, 9) ILOAD = 500mA l 1.6 2.2 V Regulated Output Voltage LT3065-1.2: VIN = 2.2V, ILOAD = 1mA 1.188 1.2 1.212 V 2.2V < VIN < 45V, 1mA < ILOAD < 500mA l 1.176 1.224 V LT3065-1.5: VIN = 2.2V, ILOAD = 1mA 1.485 1.5 1.515 V 2.2V < VIN < 45V, 1mA < ILOAD < 500mA l 1.470 1.530 V LT3065-1.8: VIN = 2.4V, ILOAD = 1mA 1.782 1.8 1.818 V 2.4V < VIN < 45V, 1mA < ILOAD < 500mA l 1.764 1.836 V LT3065-2.5: VIN = 3.1V, ILOAD = 1mA 2.475 2.5 2.525 V 3.1V < VIN < 45V, 1mA < ILOAD < 500mA l 2.450 2.550 V LT3065-3.3: VIN = 3.9V, ILOAD = 1mA 3.267 3.3 3.333 V 3.9V < VIN < 45V, 1mA < ILOAD < 500mA l 3.234 3.366 V LT3065-5: VIN = 5.6V, ILOAD = 1mA 4.950 5 5.050 V 5.6V < VIN < 45V, 1mA < ILOAD < 500mA l 4.900 5.100 V ADJ Pin Voltage (Notes 4, 5) LT3065: VIN = 2.2V, ILOAD = 1mA 594 600 606 mV 2.2V < VIN < 45V, 1mA < ILOAD < 500mA l 588 612 mV Line Regulation LT3065-1.2: ΔVIN = 2.2V to 45V l 0.7 7 mV ILOAD = 1mA LT3065-1.5: ΔVIN = 2.2V to 45V l 0.9 8.8 mV LT3065-1.8: ΔVIN = 2.4V to 45V l 1.1 10.5 mV LT3065-2.5: ΔVIN = 3.1V to 45V l 1.6 14.6 mV LT3065-3.3: ΔVIN = 3.9V to 45V l 2.0 19.3 mV LT3065-5: ΔVIN = 5.6V to 45V l 3.1 29.2 mV LT3065: ΔVIN = 2.2V to 45V (Note 4) l 0.1 3 mV Load Regulation LT3065-1.2, VIN = 2.2V l 0.5 8 mV ΔILOAD = 1mA to 500mA LT3065-1.5, VIN = 2.2V l 0.7 10 mV LT3065-1.8, VIN = 2.4V l 0.9 12 mV LT3065-2.5 VIN = 3.1V l 1.2 16.7 mV LT3065-3.3, VIN = 3.9V l 1.6 11 mV LT3065-5, VIN = 5.6V l 2.4 33.4 mV LT3065, VIN = 2.2V (Note 4) l 0.1 4 mV Dropout Voltage, VIN = VOUT(NOMINAL) ILOAD = 10mA 110 150 mV (Notes 6, 7) l 210 mV ILOAD = 50mA 145 200 mV l 310 mV ILOAD = 100mA 175 220 mV l 330 mV ILOAD = 500mA 300 350 mV l 510 mV GND Pin Current, ILOAD = 0mA l 55 110 µA VIN = VOUT(NOMINAL) + 0.6V ILOAD = 1mA l 100 200 µA (Notes 7, 8) ILOAD = 10mA l 270 550 µA ILOAD = 100mA l 1.8 4.5 mA ILOAD = 500mA l 11 25 mA Quiescent Current in Shutdown VIN = 45V, VSHDN = 0V 0.2 1 µA ADJ Pin Bias Current (Notes 4, 10) VIN = 2.2V l 16 60 nA Output Voltage Noise COUT = 10µF, ILOAD = 500mA, VOUT = 600mV, 90 µVRMS BW = 10Hz to 100kHz COUT = 10µF, CBYP = 10nF, ILOAD = 500mA, 25 µVRMS VOUT = 600mV, BW = 10Hz to 100kHz Shutdown Threshold VOUT = Off to On l 1. 3 1.42 V VOUT = On to Off l 0.9 1.1 V Rev.D 4 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
