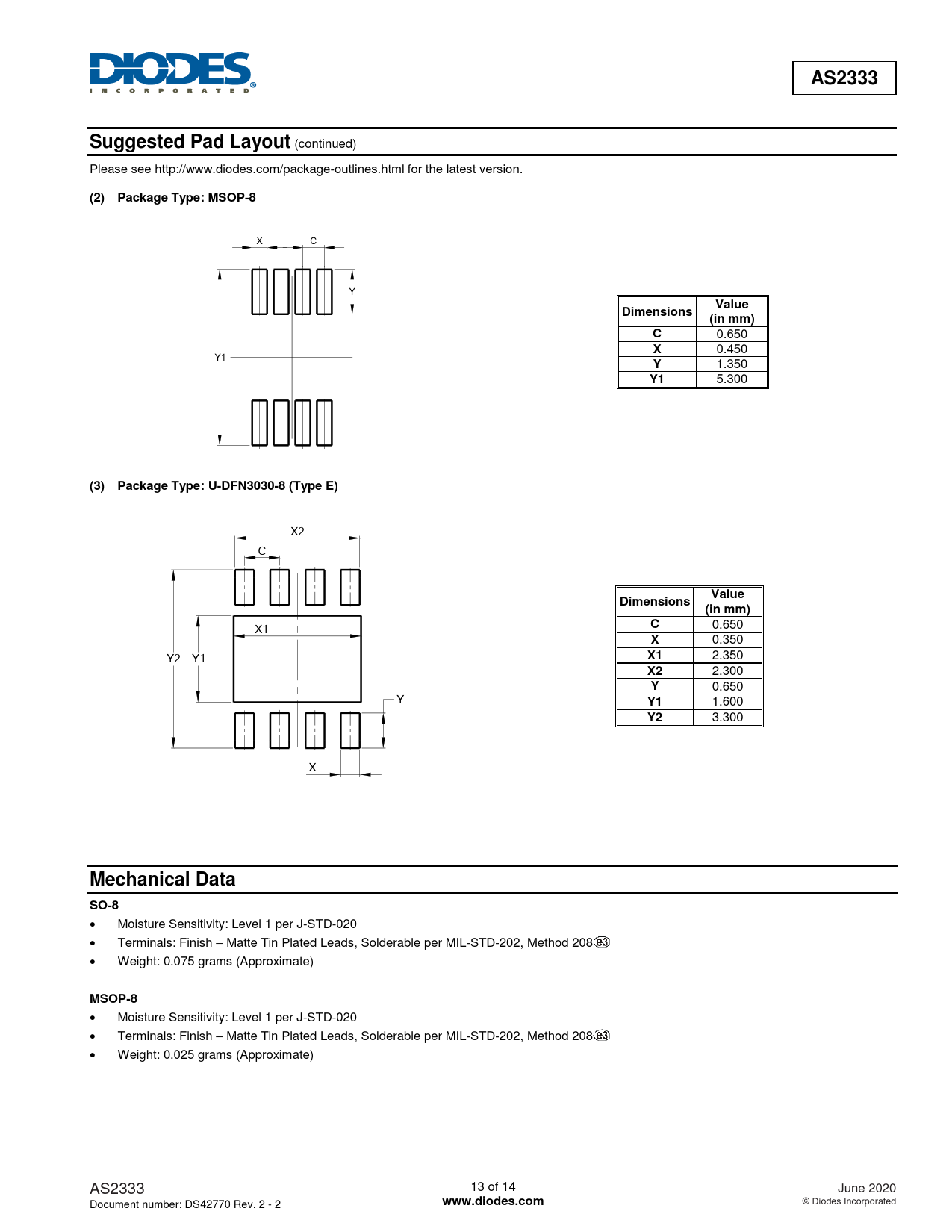

AS2333 Suggested Pad Layout
(continued) Please see http://www.diodes.com/package-outlines.html for the latest version.
(2) Package Type: MSOP-8
X C Y
Value Dimensions (in mm) C
0.650
X
0.450 Y1
Y
1.350
Y1
5.300
(3) Package Type: U-DFN3030-8 (Type E)
X2 C
Value Dimensions (in mm)
X1
C
0.650
X
0.350 Y2 Y1
X1
2.350
X2
2.300
Y
0.650 Y
Y1
1.600
Y2
3.300 X
Mechanical Data SO-8
Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: 0.075 grams (Approximate)
MSOP-8
Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: 0.025 grams (Approximate) AS2333 13 of 14 June 2020 Document number: DS42770 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
