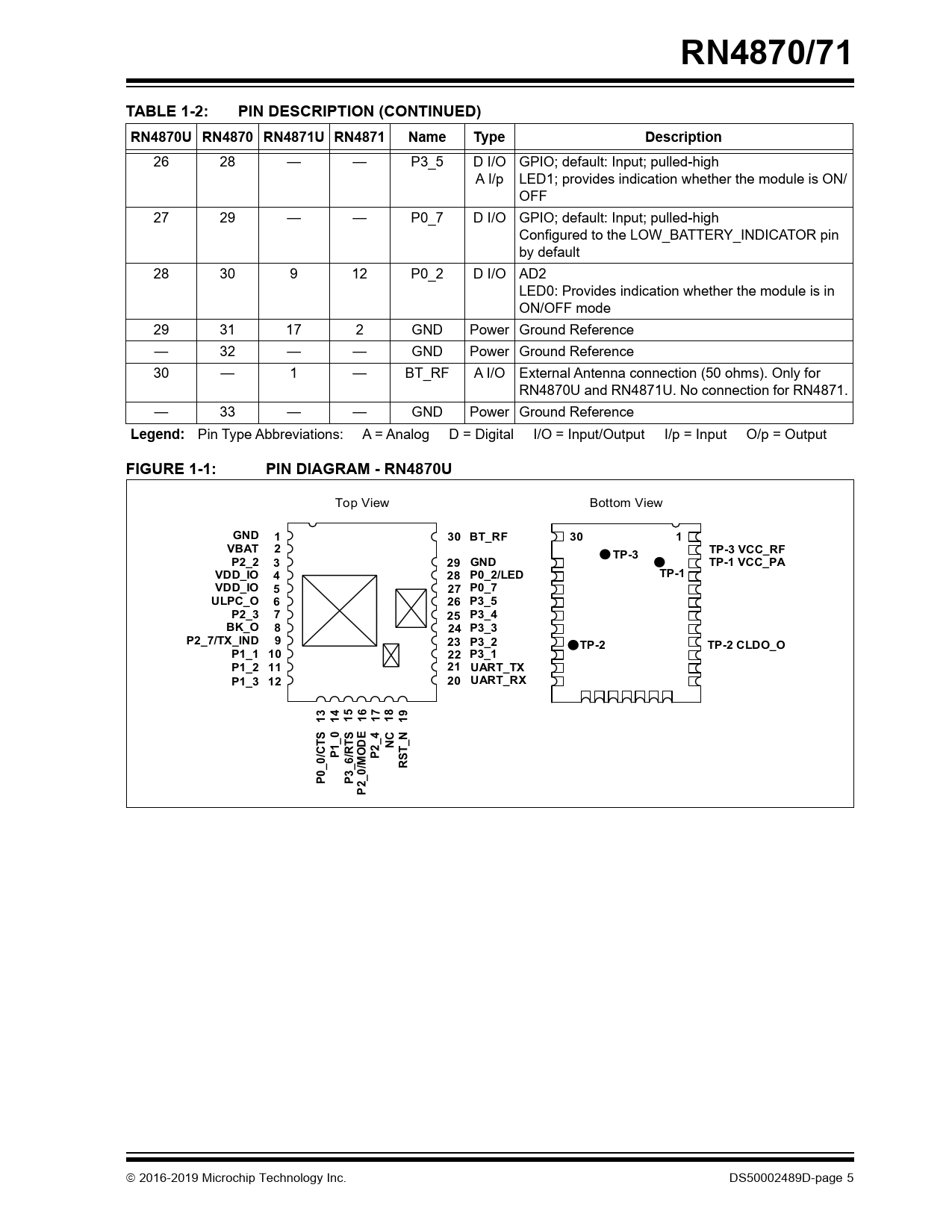

RN4870/71. TABLE 1-2:. PIN DESCRIPTION (CONTINUED). RN4870U RN4870 RN4871U RN4871. Name. Type. Description. Legend:. FIGURE 1-1:

RN4870/71 TABLE 1-2: PIN DESCRIPTION (CONTINUED) RN4870U RN4870 RN4871U RN4871 Name Type Description Legend: FIGURE 1-1:

该数据表的模型线

文件文字版本

RN4870/71 TABLE 1-2: PIN DESCRIPTION (CONTINUED) RN4870U RN4870 RN4871U RN4871 Name Type Description
26 28 — — P3_5 D I/O GPIO; default: Input; pulled-high A I/p LED1; provides indication whether the module is ON/ OFF 27 29 — — P0_7 D I/O GPIO; default: Input; pulled-high Configured to the LOW_BATTERY_INDICATOR pin by default 28 30 9 12 P0_2 D I/O AD2 LED0: Provides indication whether the module is in ON/OFF mode 29 31 17 2 GND Power Ground Reference — 32 — — GND Power Ground Reference 30 — 1 — BT_RF A I/O External Antenna connection (50 ohms). Only for RN4870U and RN4871U. No connection for RN4871. — 33 — — GND Power Ground Reference
Legend:
Pin Type Abbreviations: A = Analog D = Digital I/O = Input/Output I/p = Input O/p = Output
FIGURE 1-1: PIN DIAGRAM - RN4870U
Top View Bottom View
GND 1 30 BT_RF 30 1 VBAT 2 TP-3 VCC_RF TP-3 P2_2 3 29 GND TP-1 VCC_PA VDD_IO 4 28 P0_2/LED TP-1 VDD_IO 5 27 P0_7 ULPC_O 6 26 P3_5 P2_3 7 25 P3_4 BK_O 8 24 P3_3 P2_7/TX_IND 9 23 P3_2 TP-2 TP-2 CLDO_O P1_1 10 22 P3_1 P1_2 11 21 UART_TX P1_3 12 20 UART_RX 13 14 15 16 17 18 19 TS TS ED NC P1_0 P2_4 T_N RS P0_0/C P3_6/R P2_0/MO
