Preliminary Datasheet MB85RS4MTY (Fujitsu) - 32
| 制造商 | Fujitsu |
| 描述 | Memory FRAM 4M (512 K х 8) Bit SPI |
| 页数 / 页 | 39 / 32 — MB85RS4MTY. Emboss Tape. 2.1 Tape Dimensions |
| 文件格式/大小 | PDF / 2.6 Mb |
| 文件语言 | 英语 |
MB85RS4MTY. Emboss Tape. 2.1 Tape Dimensions
该数据表的模型线
文件文字版本

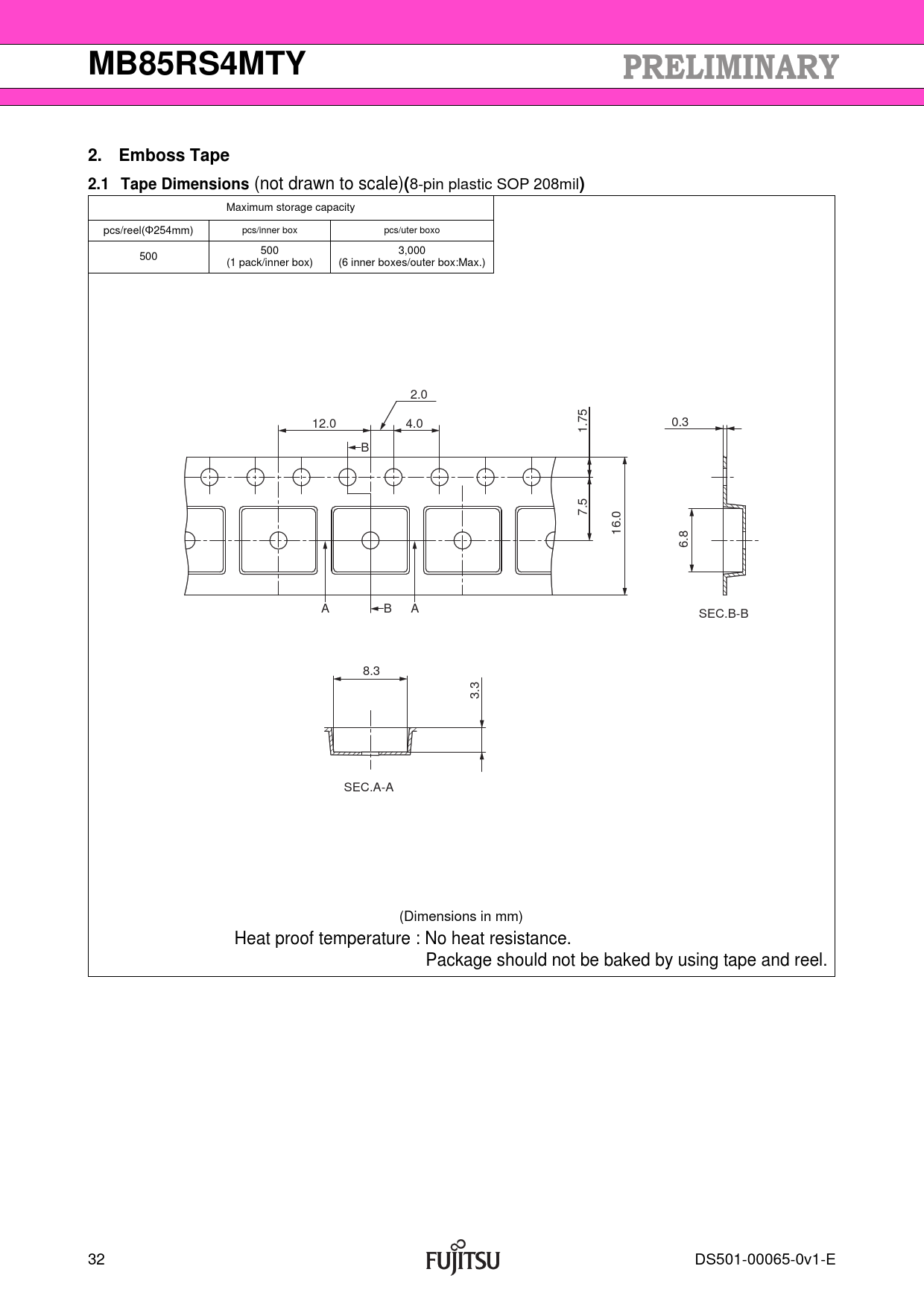

MB85RS4MTY 2. Emboss Tape 2.1 Tape Dimensions
(not drawn to scale)
(
8-pin plastic SOP 208mil
)
Maximum storage capacity pcs/reel(Φ254mm) pcs/inner box pcs/uter boxo 500 3,000 500 (1 pack/inner box) (6 inner boxes/outer box:Max.) 2.0 12.0 4.0 0.3 1.75 B 7.5 16.0 6.8 A B A SEC.B-B 8.3 3.3 SEC.A-A (Dimensions in mm) Heat proof temperature : No heat resistance. Package should not be baked by using tape and reel. 32 DS501-00065-0v1-E Document Outline DESCRIPTION FEATURES PIN ASSIGNMENT PIN FUNCTIONAL DESCRIPTIONS BLOCK DIAGRAM SPI MODE SERIAL PERIPHERAL INTERFACE (SPI) STATUS REGISTER OP-CODE COMMAND BLOCK PROTECT WRITING PROTECT ABSOLUTE MAXIMUM RATINGS RECOMMENDED OPERATING CONDITIONS ELECTRICAL CHARACTERISTICS 1. DC Characteristics 2. AC Characteristics 3. Pin Capacitance TIMING DIAGRAM POWER ON/OFF SEQUENCE FRAM CHARACTERISTICS NOTE ON USE ESD AND LATCH-UP REFLOW CONDITIONS AND FLOOR LIFE Current status on Contained Restricted Substances ORDERING INFORMATION PACKAGE DIMENSION MARKING (Example) PACKING INFORMATION 1. Tube 2. Emboss Tape
