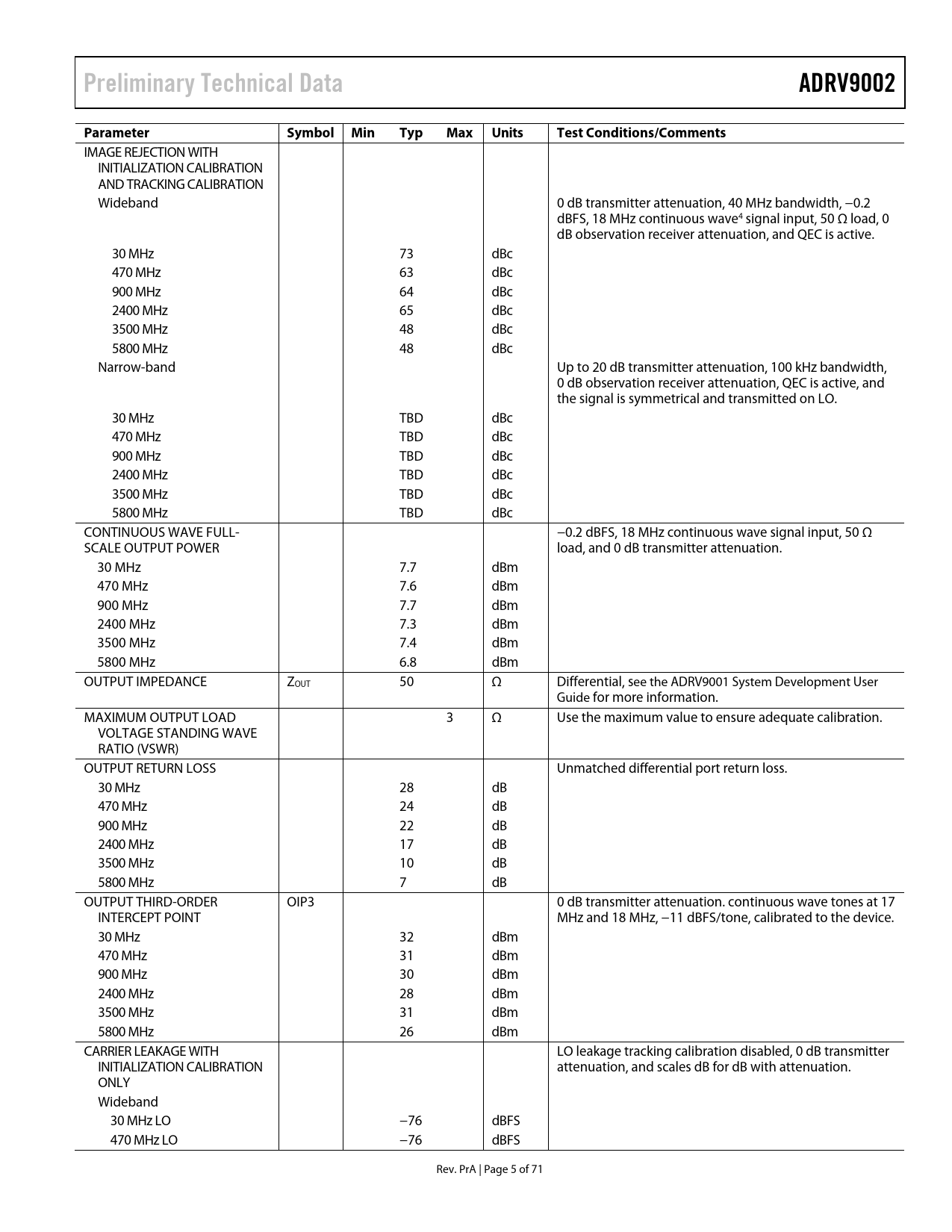

Preliminary Technical Data. ADRV9002. Parameter Symbol. Min. Typ. Max. Units Test. Conditions/Comments

Preliminary Technical Data ADRV9002 Parameter Symbol Min Typ Max Units Test Conditions/Comments

该数据表的模型线

文件文字版本

link to page 6
Preliminary Technical Data ADRV9002 Parameter Symbol Min Typ Max Units Test Conditions/Comments
IMAGE REJECTION WITH INITIALIZATION CALIBRATION AND TRACKING CALIBRATION Wideband 0 dB transmitter attenuation, 40 MHz bandwidth, −0.2 dBFS, 18 MHz continuous wave4 signal input, 50 Ω load, 0 dB observation receiver attenuation, and QEC is active. 30 MHz 73 dBc 470 MHz 63 dBc 900 MHz 64 dBc 2400 MHz 65 dBc 3500 MHz 48 dBc 5800 MHz 48 dBc Narrow-band Up to 20 dB transmitter attenuation, 100 kHz bandwidth, 0 dB observation receiver attenuation, QEC is active, and the signal is symmetrical and transmitted on LO. 30 MHz TBD dBc 470 MHz TBD dBc 900 MHz TBD dBc 2400 MHz TBD dBc 3500 MHz TBD dBc 5800 MHz TBD dBc CONTINUOUS WAVE FULL- −0.2 dBFS, 18 MHz continuous wave signal input, 50 Ω SCALE OUTPUT POWER load, and 0 dB transmitter attenuation. 30 MHz 7.7 dBm 470 MHz 7.6 dBm 900 MHz 7.7 dBm 2400 MHz 7.3 dBm 3500 MHz 7.4 dBm 5800 MHz 6.8 dBm OUTPUT IMPEDANCE ZOUT 50 Ω Differential, see the ADRV9001 System Development User Guide for more information. MAXIMUM OUTPUT LOAD 3 Ω Use the maximum value to ensure adequate calibration. VOLTAGE STANDING WAVE RATIO (VSWR) OUTPUT RETURN LOSS Unmatched differential port return loss. 30 MHz 28 dB 470 MHz 24 dB 900 MHz 22 dB 2400 MHz 17 dB 3500 MHz 10 dB 5800 MHz 7 dB OUTPUT THIRD-ORDER OIP3 0 dB transmitter attenuation. continuous wave tones at 17 INTERCEPT POINT MHz and 18 MHz, −11 dBFS/tone, calibrated to the device. 30 MHz 32 dBm 470 MHz 31 dBm 900 MHz 30 dBm 2400 MHz 28 dBm 3500 MHz 31 dBm 5800 MHz 26 dBm CARRIER LEAKAGE WITH LO leakage tracking calibration disabled, 0 dB transmitter INITIALIZATION CALIBRATION attenuation, and scales dB for dB with attenuation. ONLY Wideband 30 MHz LO −76 dBFS 470 MHz LO −76 dBFS Rev. PrA | Page 5 of 71 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS TRANSMITTER SPECIFICATIONS RECEIVER SPECIFICATIONS INTERNAL LO, EXTERNAL LO, AND DEVICE CLOCK DIGITAL INTERFACES AND AUXILIARY CONVERTERS POWER SUPPLY SPECIFICATIONS CURRENT CONSUMPTION ESTIMATES (TYPICAL VALUES) Sleep Mode (Typical Values) TDD Operation (Typical Values) FDD Operation (Typical Values) TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS REFLOW PROFILE THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADRV2009 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 30 MHZ BAND 470 MHZ BAND 900 MHZ BAND 2400 MHZ BAND 3500 MHZ BAND 5800 MHZ BAND PHASE NOISE THEORY OF OPERATION TRANSMITTER RECEIVER Monitor Mode DPD Receiver as an Observation Receiver CLOCK INPUT SYNTHESIZERS RF PLL Baseband PLL (PLL) SPI INTERFACE GPIO PINS Digital GPIO Inputs/Outputs (DGPIO) Analog GPIO Inputs/Outputs (AGPIO) AUXILLARY CONVERTERS Auxiliary ADC Inputs (AUXADC_x) Auxiliary DACs Outputs (AUXDAC_x) JTAG BOUNDARY SCAN APPLICATIONS INFORMATION POWER SUPPLY SEQUENCE DIGITAL DATA INTERFACE CSSI CSSI Receive CSSI Transmit LSSI OUTLINE DIMENSIONS
