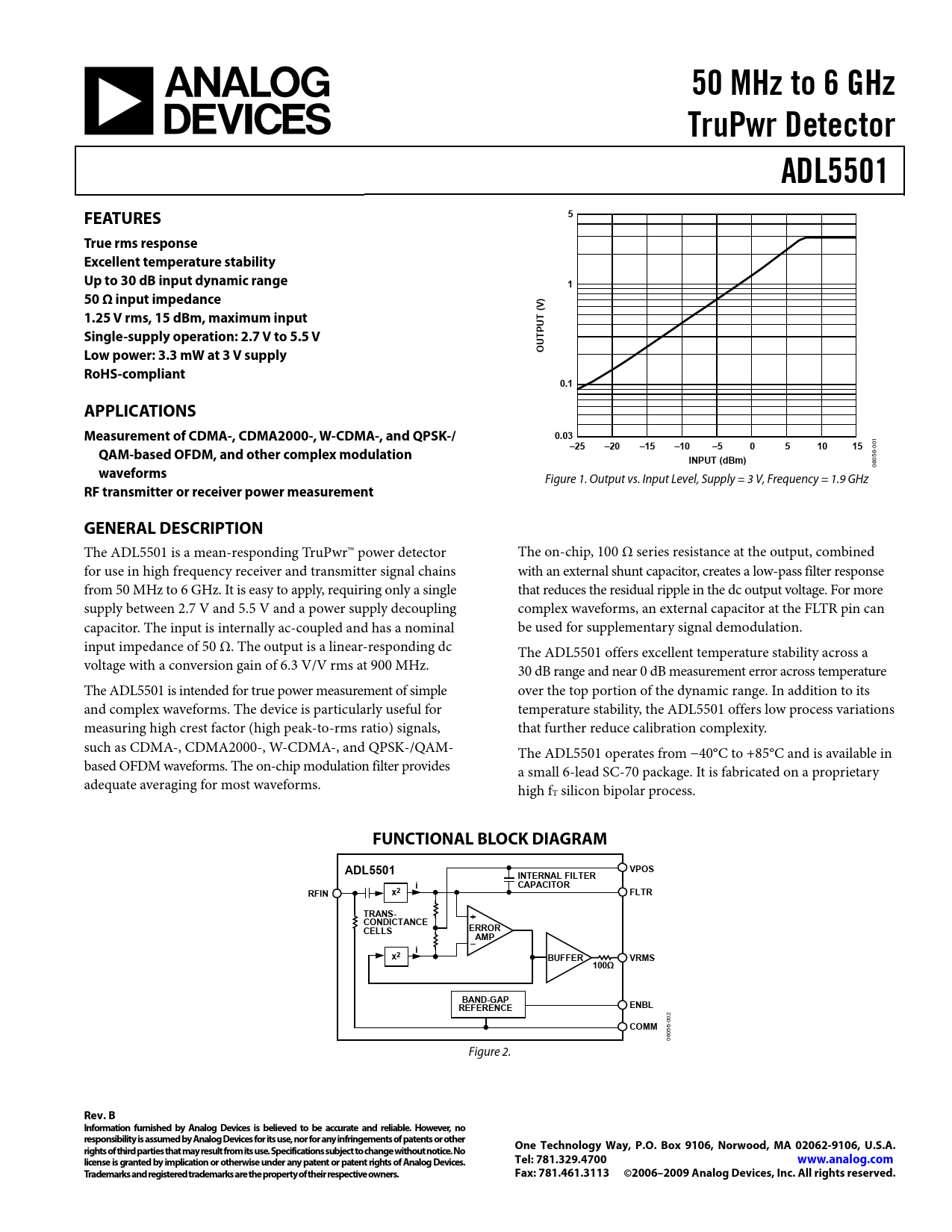

50 MHz to 6 GHz TruPwr Detector ADL5501 FEATURES 5 True rms response Excellent temperature stability Up to 30 dB input dynamic range 1 50 Ω input impedance ) V ( 1.25 V rms, 15 dBm, maximum input T U Single-supply operation: 2.7 V to 5.5 V TP OU Low power: 3.3 mW at 3 V supply RoHS-compliant 0.1 APPLICATIONS Measurement of CDMA-, CDMA2000-, W-CDMA-, and QPSK-/ 0.03
1
–25 –20 –15 –10 –5 0 5 10 15
00
QAM-based OFDM, and other complex modulation
6-
INPUT (dBm)
05 06
waveforms
Figure 1. Output vs. Input Level, Supply = 3 V, Frequency = 1.9 GHz
RF transmitter or receiver power measurement GENERAL DESCRIPTION
The ADL5501 is a mean-responding TruPwr™ power detector The on-chip, 100 Ω series resistance at the output, combined for use in high frequency receiver and transmitter signal chains with an external shunt capacitor, creates a low-pass filter response from 50 MHz to 6 GHz. It is easy to apply, requiring only a single that reduces the residual ripple in the dc output voltage. For more supply between 2.7 V and 5.5 V and a power supply decoupling complex waveforms, an external capacitor at the FLTR pin can capacitor. The input is internally ac-coupled and has a nominal be used for supplementary signal demodulation. input impedance of 50 Ω. The output is a linear-responding dc The ADL5501 offers excellent temperature stability across a voltage with a conversion gain of 6.3 V/V rms at 900 MHz. 30 dB range and near 0 dB measurement error across temperature The ADL5501 is intended for true power measurement of simple over the top portion of the dynamic range. In addition to its and complex waveforms. The device is particularly useful for temperature stability, the ADL5501 offers low process variations measuring high crest factor (high peak-to-rms ratio) signals, that further reduce calibration complexity. such as CDMA-, CDMA2000-, W-CDMA-, and QPSK-/QAM- The ADL5501 operates from −40°C to +85°C and is available in based OFDM waveforms. The on-chip modulation filter provides a small 6-lead SC-70 package. It is fabricated on a proprietary adequate averaging for most waveforms. high fT silicon bipolar process.
FUNCTIONAL BLOCK DIAGRAM VPOS ADL5501 INTERNAL FILTER i CAPACITOR RFIN x2 FLTR TRANS- CONDICTANCE ERROR CELLS AMP i x2 BUFFER VRMS 100Ω BAND-GAP REFERENCE ENBL
