Datasheet TLP2372 (Toshiba) - 2
| 制造商 | Toshiba |
| 描述 | Photocouplers Infrared LED & Photo IC |
| 页数 / 页 | 17 / 2 — TLP2372. 4. Packaging. and. Pin. Assignment. 1:. Anode. 3:. Cathode. 4:. … |
| 文件格式/大小 | PDF / 645 Kb |
| 文件语言 | 英语 |
TLP2372. 4. Packaging. and. Pin. Assignment. 1:. Anode. 3:. Cathode. 4:. GND. 5:. VO. (Output). 6:. VDD. 11-4L1S. 5. Internal. Circuit. (Note). Note:. A. 0.1-µF. bypass
该数据表的模型线
文件文字版本

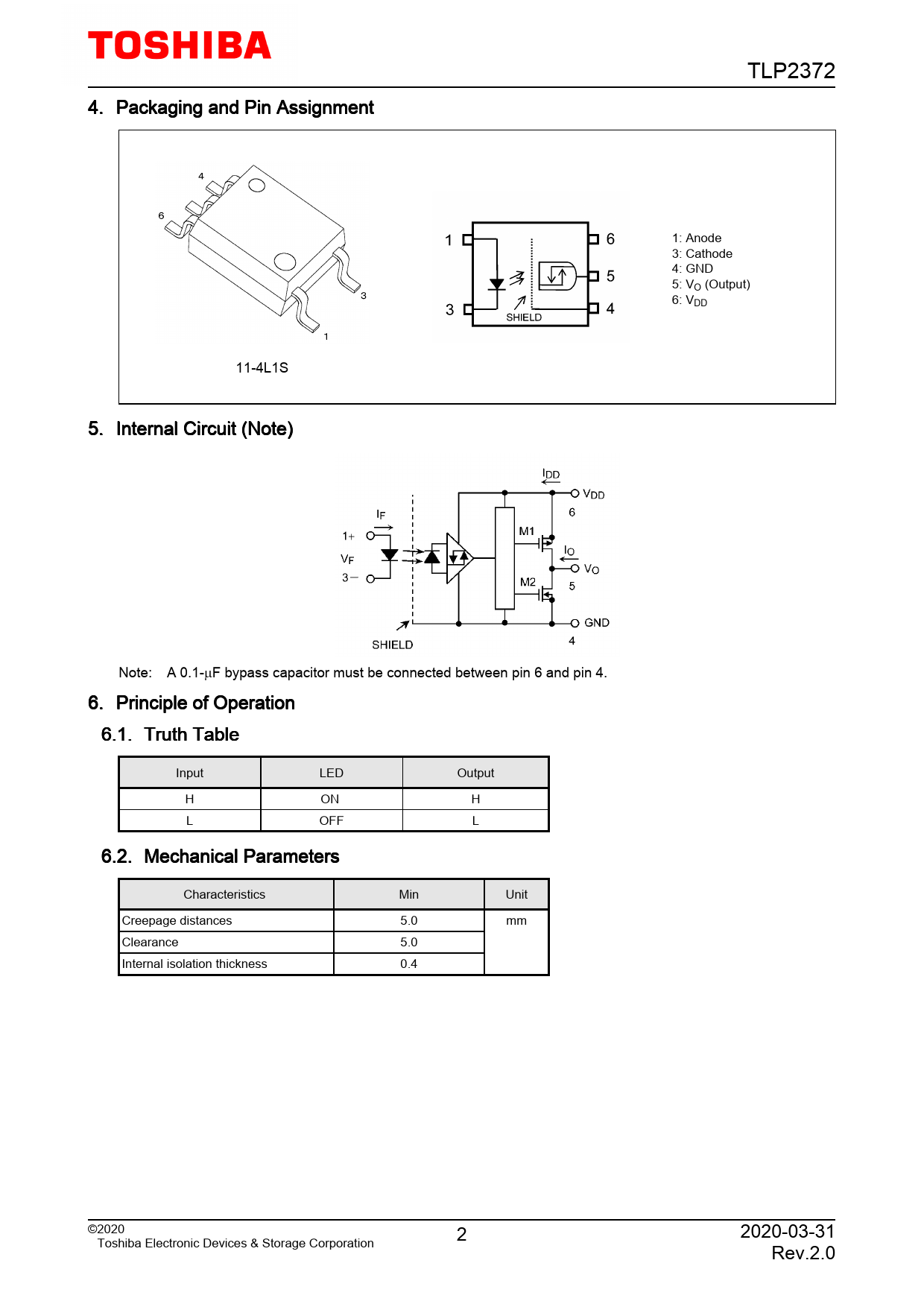

TLP2372 4. Packaging and Pin Assignment 1: Anode 3: Cathode 4: GND 5: VO (Output) 6: VDD 11-4L1S 5. Internal Circuit (Note) Note: A 0.1-µF bypass capacitor must be connected between pin 6 and pin 4. 6. Principle of Operation 6.1. Truth Table Input LED Output H ON H L OFF L 6.2. Mechanical Parameters Characteristics Min Unit Creepage distances 5.0 mm Clearance 5.0 Internal isolation thickness 0.4 ©2020 2 2020-03-31 Toshiba Electronic Devices & Storage Corporation Rev.2.0
