Datasheet CV94D-FCC (Cree) - 4

制造商Cree
描述PLCC6 3 in 1 SMD LED
页数 / 页11 / 4 — Cree PLCC6 3 in 1 SMD LED. CV94D-FCC. ORDER CODE TABLE*. Luminous …
文件格式/大小PDF / 1.2 Mb
文件语言英语

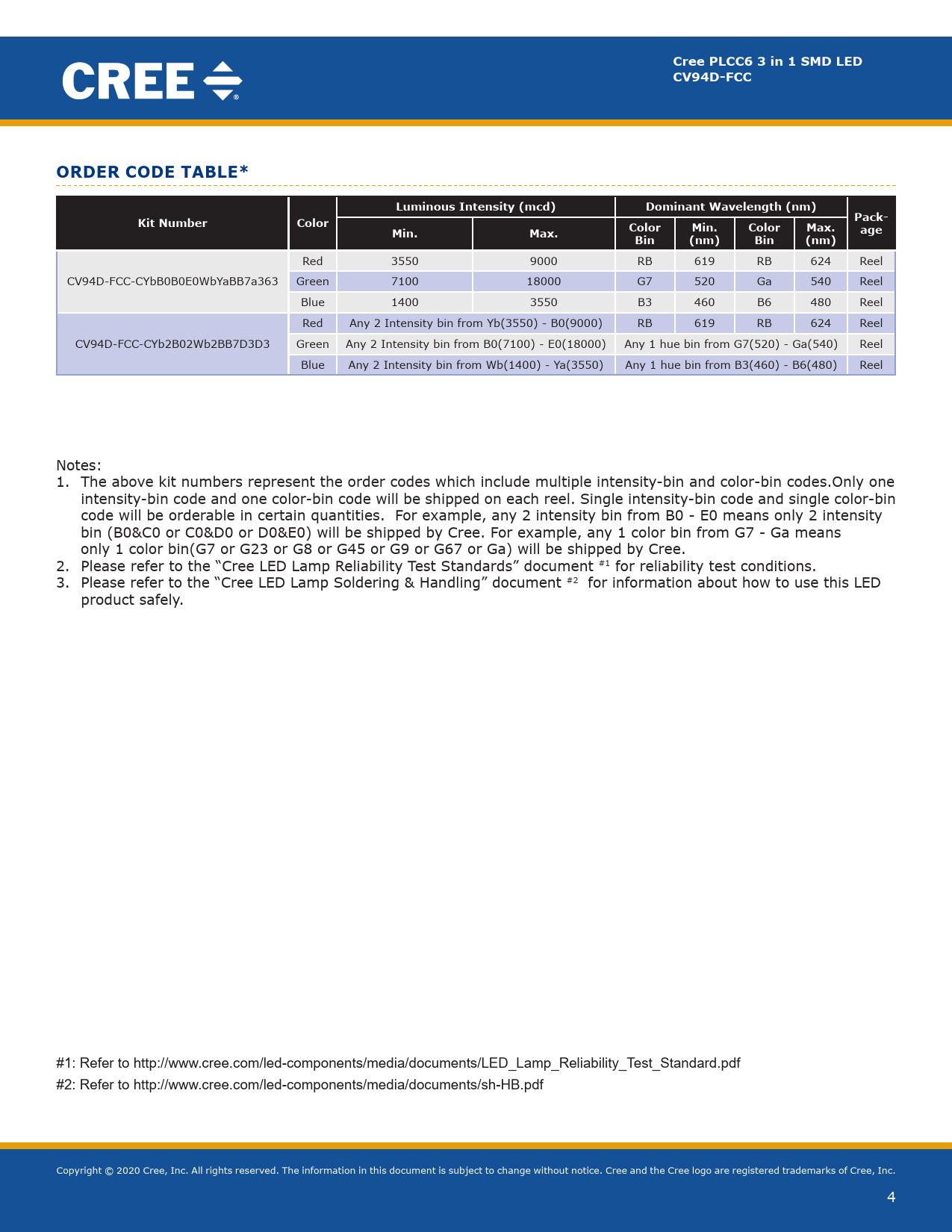

Cree PLCC6 3 in 1 SMD LED. CV94D-FCC. ORDER CODE TABLE*. Luminous Intensity (mcd). Dominant Wavelength (nm). Kit Number. Color. Pack-

Cree PLCC6 3 in 1 SMD LED CV94D-FCC ORDER CODE TABLE* Luminous Intensity (mcd) Dominant Wavelength (nm) Kit Number Color Pack-

该数据表的模型线

文件文字版本

Cree PLCC6 3 in 1 SMD LED CV94D-FCC ORDER CODE TABLE* Luminous Intensity (mcd) Dominant Wavelength (nm) Kit Number Color Pack- Min. Color Max. age Min. Max. Color Bin (nm) Bin (nm)
Red 3550 9000 RB 619 RB 624 Reel CV94D-FCC-CYbB0B0E0WbYaBB7a363 Green 7100 18000 G7 520 Ga 540 Reel Blue 1400 3550 B3 460 B6 480 Reel Red Any 2 Intensity bin from Yb(3550) - B0(9000) RB 619 RB 624 Reel CV94D-FCC-CYb2B02Wb2BB7D3D3 Green Any 2 Intensity bin from B0(7100) - E0(18000) Any 1 hue bin from G7(520) - Ga(540) Reel Blue Any 2 Intensity bin from Wb(1400) - Ya(3550) Any 1 hue bin from B3(460) - B6(480) Reel Notes: 1. The above kit numbers represent the order codes which include multiple intensity-bin and color-bin codes.Only one intensity-bin code and one color-bin code will be shipped on each reel. Single intensity-bin code and single color-bin code will be orderable in certain quantities. For example, any 2 intensity bin from B0 - E0 means only 2 intensity bin (B0&C0 or C0&D0 or D0&E0) will be shipped by Cree. For example, any 1 color bin from G7 - Ga means only 1 color bin(G7 or G23 or G8 or G45 or G9 or G67 or Ga) will be shipped by Cree. 2. Please refer to the “Cree LED Lamp Reliability Test Standards” document #1 for reliability test conditions. 3. Please refer to the “Cree LED Lamp Soldering & Handling” document #2 for information about how to use this LED product safely. #1: Refer to http://www.cree.com/led-components/media/documents/LED_Lamp_Reliability_Test_Standard.pdf #2: Refer to http://www.cree.com/led-components/media/documents/sh-HB.pdf Copyright © 2010 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree, the Cree logo and XLamp are registered trademarks of Cree, Inc. Copyright © 2020 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the Cree logo are registered trademarks of Cree, Inc. 4
