| 制造商 | Analog Devices |
| 描述 | Quad DC/DC µModule Regulator with Configurable 4A Output Array |
| 页数 / 页 | 36 / 33 — PACKAGE DESCRIPTION. PACKAGE ROW AND COLUMN LABELING MAY VARY. AMONG … |
| 修订版 | G |
| 文件格式/大小 | PDF / 2.7 Mb |
| 文件语言 | 英语 |
PACKAGE DESCRIPTION. PACKAGE ROW AND COLUMN LABELING MAY VARY. AMONG µModule PRODUCTS. REVIEW EACH PACKAGE. LAYOUT CAREFULLY
该数据表的模型线
文件文字版本
LTM4644/LTM4644-1

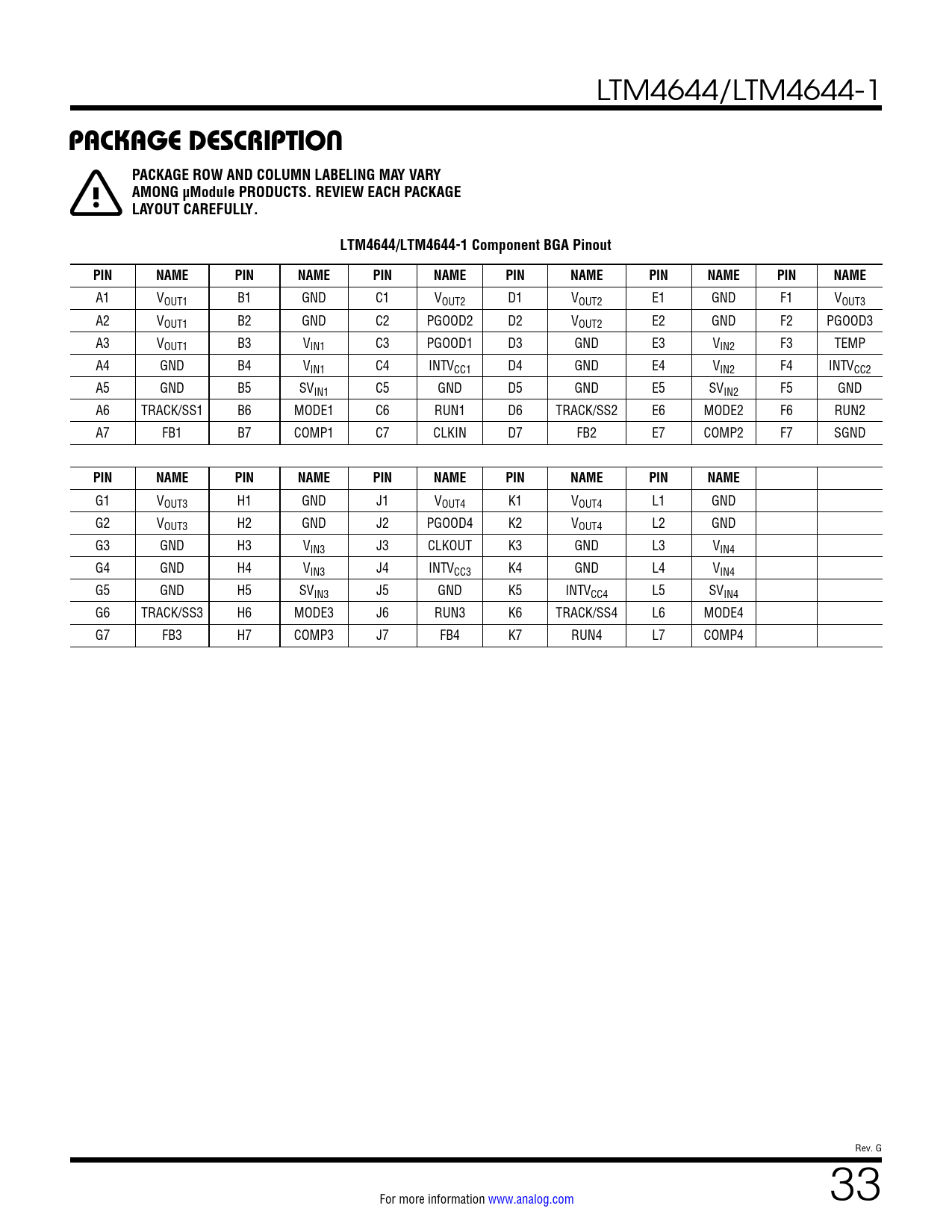

PACKAGE DESCRIPTION PACKAGE ROW AND COLUMN LABELING MAY VARY AMONG µModule PRODUCTS. REVIEW EACH PACKAGE LAYOUT CAREFULLY. LTM4644/LTM4644-1 Component BGA Pinout PIN NAME PIN NAME PIN NAME PIN NAME PIN NAME PIN NAME
A1 VOUT1 B1 GND C1 VOUT2 D1 VOUT2 E1 GND F1 VOUT3 A2 VOUT1 B2 GND C2 PGOOD2 D2 VOUT2 E2 GND F2 PGOOD3 A3 VOUT1 B3 VIN1 C3 PGOOD1 D3 GND E3 VIN2 F3 TEMP A4 GND B4 VIN1 C4 INTVCC1 D4 GND E4 VIN2 F4 INTVCC2 A5 GND B5 SVIN1 C5 GND D5 GND E5 SVIN2 F5 GND A6 TRACK/SS1 B6 MODE1 C6 RUN1 D6 TRACK/SS2 E6 MODE2 F6 RUN2 A7 FB1 B7 COMP1 C7 CLKIN D7 FB2 E7 COMP2 F7 SGND
PIN NAME PIN NAME PIN NAME PIN NAME PIN NAME
G1 VOUT3 H1 GND J1 VOUT4 K1 VOUT4 L1 GND G2 VOUT3 H2 GND J2 PGOOD4 K2 VOUT4 L2 GND G3 GND H3 VIN3 J3 CLKOUT K3 GND L3 VIN4 G4 GND H4 VIN3 J4 INTVCC3 K4 GND L4 VIN4 G5 GND H5 SVIN3 J5 GND K5 INTVCC4 L5 SVIN4 G6 TRACK/SS3 H6 MODE3 J6 RUN3 K6 TRACK/SS4 L6 MODE4 G7 FB3 H7 COMP3 J7 FB4 K7 RUN4 L7 COMP4 Rev. G For more information www.analog.com 33 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Package Photo Design Resources Related Parts
