Datasheet AP7353 (Diodes) - 2
| 制造商 | Diodes |
| 描述 | 250mA High PSRR Low Noise LDO With Enable |
| 页数 / 页 | 17 / 2 — AP7353. Typical Applications Circuit. T C U D O R. Pin Descriptions. Pin … |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |

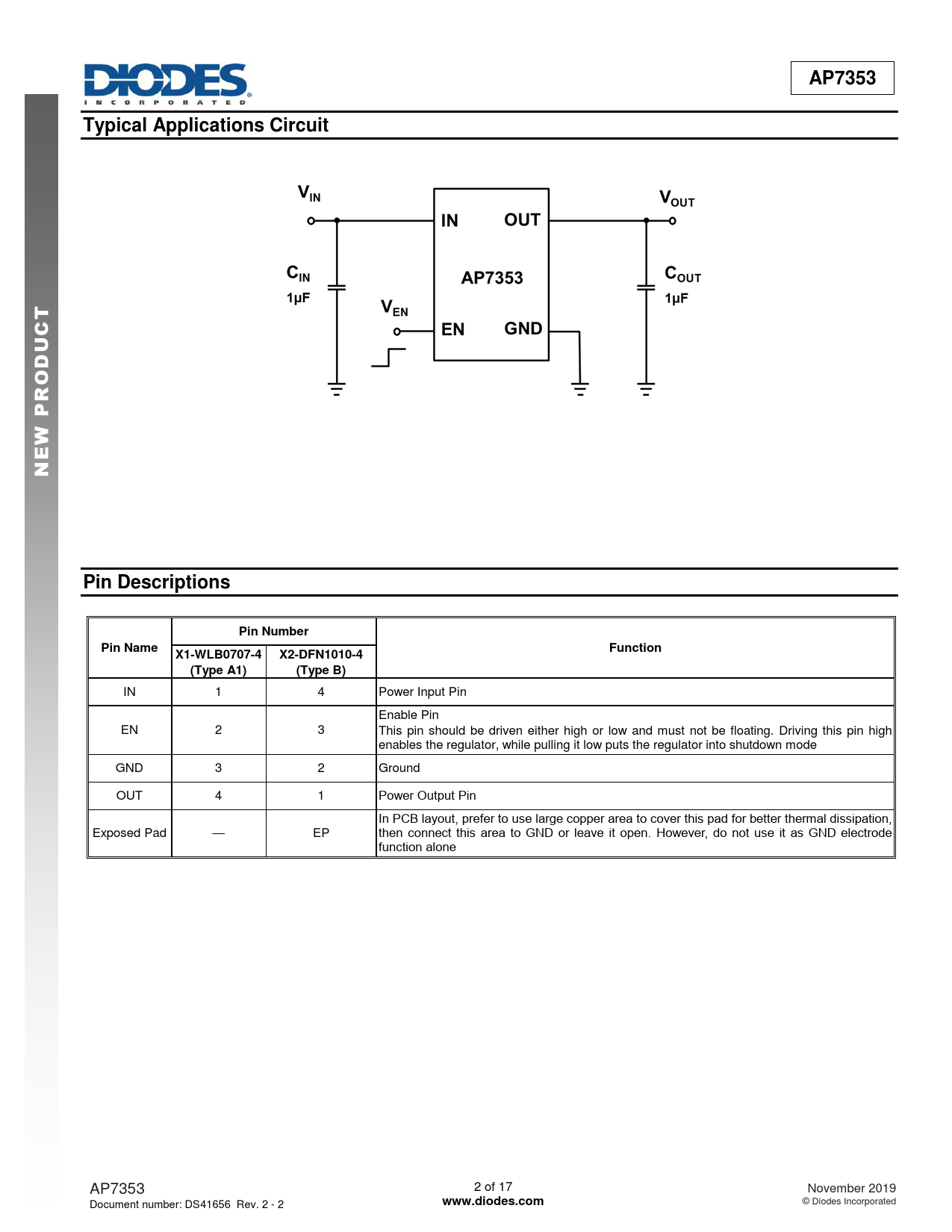

AP7353. Typical Applications Circuit. T C U D O R. Pin Descriptions. Pin Number. Pin Name. Function. X1-WLB0707-4. X2-DFN1010-4
该数据表的模型线
文件文字版本
AP7353 Typical Applications Circuit T C U D O R P W E N Pin Descriptions Pin Number Pin Name Function X1-WLB0707-4 X2-DFN1010-4 (Type A1) (Type B)
IN 1 4 Power Input Pin Enable Pin EN 2 3 This pin should be driven either high or low and must not be floating. Driving this pin high enables the regulator, while pulling it low puts the regulator into shutdown mode GND 3 2 Ground OUT 4 1 Power Output Pin In PCB layout, prefer to use large copper area to cover this pad for better thermal dissipation, Exposed Pad — EP then connect this area to GND or leave it open. However, do not use it as GND electrode function alone
AP7353 2 of 17 November 2019 Document number: DS41656 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
IN 1 4 Power Input Pin Enable Pin EN 2 3 This pin should be driven either high or low and must not be floating. Driving this pin high enables the regulator, while pulling it low puts the regulator into shutdown mode GND 3 2 Ground OUT 4 1 Power Output Pin In PCB layout, prefer to use large copper area to cover this pad for better thermal dissipation, Exposed Pad — EP then connect this area to GND or leave it open. However, do not use it as GND electrode function alone
