Datasheet LT8301 (Analog Devices) - 21
| 制造商 | Analog Devices |
| 描述 | 42VIN Micropower No-Opto Isolated Flyback Converter with 65V/1.2A Switch |
| 页数 / 页 | 24 / 21 — TYPICAL APPLICATIONS. VIN to (VIN + 10V)/(VIN – 10V) Micropower Converter |
| 修订版 | B |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
TYPICAL APPLICATIONS. VIN to (VIN + 10V)/(VIN – 10V) Micropower Converter
该数据表的模型线
- LT8301ES5#TRMPBF LT8301ES5#TRPBF LT8301ES5#WTRMPBF LT8301ES5#WTRPBF LT8301HS5#TRMPBF LT8301HS5#TRPBF LT8301HS5#WTRMPBF LT8301HS5#WTRPBF LT8301IS5#TRMPBF LT8301IS5#TRPBF LT8301IS5#WTRMPBF LT8301IS5#WTRPBF LT8301JS5#TRMPBF LT8301JS5#TRPBF LT8301JS5#WTRMPBF LT8301JS5#WTRPBF LT8301MPS5#TRMPBF LT8301MPS5#TRPBF
文件文字版本
LT8301

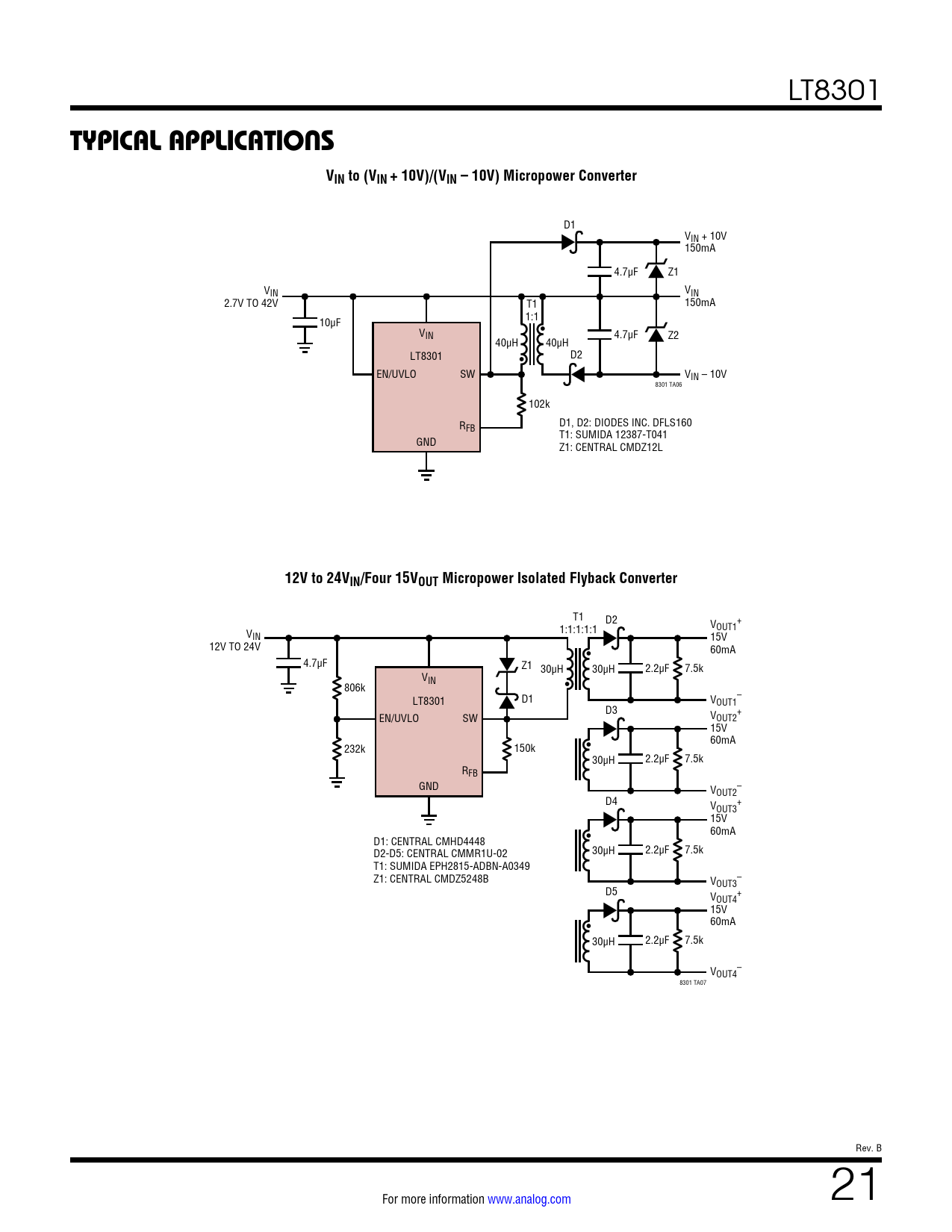

TYPICAL APPLICATIONS VIN to (VIN + 10V)/(VIN – 10V) Micropower Converter
D1 VIN + 10V 150mA 4.7µF Z1 VIN VIN 2.7V TO 42V T1 150mA 10µF 1:1 V • IN 4.7µF Z2 40µH 40µH LT8301 D2 • EN/UVLO SW VIN – 10V 8301 TA06 102k R D1, D2: DIODES INC. DFLS160 FB T1: SUMIDA 12387-T041 GND Z1: CENTRAL CMDZ12L
12V to 24VIN/Four 15VOUT Micropower Isolated Flyback Converter
T1 D2 + 1:1:1:1:1 V V OUT1 IN 15V 12V TO 24V 60mA • 4.7µF Z1 30µH 30µH 2.2µF 7.5k VIN 806k • LT8301 D1 V – OUT1 D3 + EN/UVLO SW VOUT2 15V 60mA 232k 150k •30µH 2.2µF 7.5k RFB GND V – OUT2 D4 V + OUT3 15V 60mA D1: CENTRAL CMHD4448 • D2-D5: CENTRAL CMMR1U-02 30µH 2.2µF 7.5k T1: SUMIDA EPH2815-ADBN-A0349 Z1: CENTRAL CMDZ5248B V – OUT3 D5 V + OUT4 15V 60mA •30µH 2.2µF 7.5k V – OUT4 8301 TA07 Rev. B For more information www.analog.com 21 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
