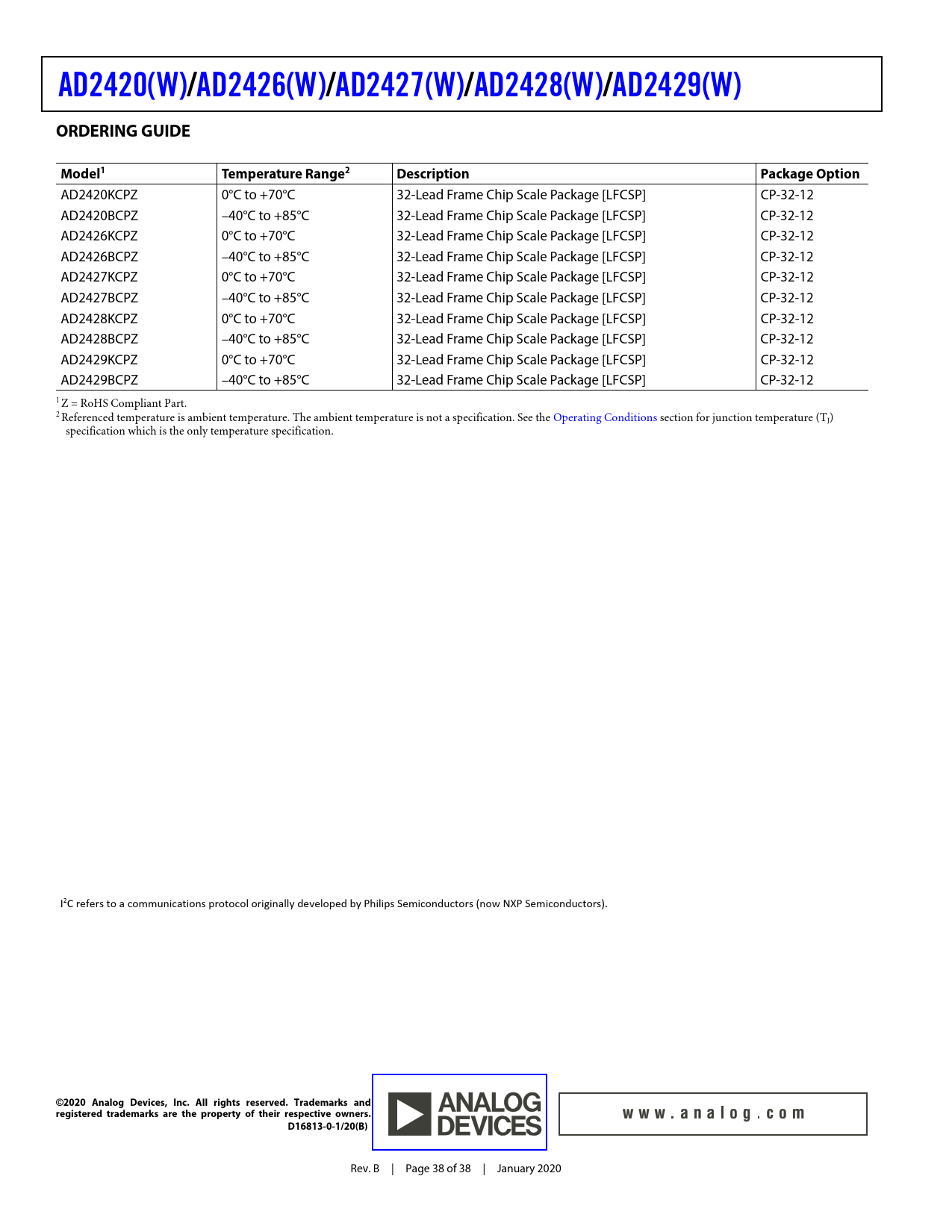

AD2420(W) /AD2426(W) /AD2427(W) /AD2428(W) / AD2429(W) ORDERING GUIDE Model1 Temperature Range2 Description Package Option
AD2420KCPZ 0°C to +70°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2420BCPZ –40°C to +85°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2426KCPZ 0°C to +70°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2426BCPZ –40°C to +85°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2427KCPZ 0°C to +70°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2427BCPZ –40°C to +85°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2428KCPZ 0°C to +70°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2428BCPZ –40°C to +85°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2429KCPZ 0°C to +70°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 AD2429BCPZ –40°C to +85°C 32-Lead Frame Chip Scale Package [LFCSP] CP-32-12 1 Z = RoHS Compliant Part. 2 Referenced temperature is ambient temperature. The ambient temperature is not a specification. See the Operating Conditions section for junction temperature (TJ) specification which is the only temperature specification.  I2C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors).
©2020 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D16813-0-1/20(B)
