Quad Low Offset, Low Power. Operational Amplifier. Data Sheet. OP400. FEATURES. FUNCTIONAL BLOCK DIAGRAMS

Datasheet OP400 Analog Devices, 修订版: I

该数据表的模型线

文件文字版本

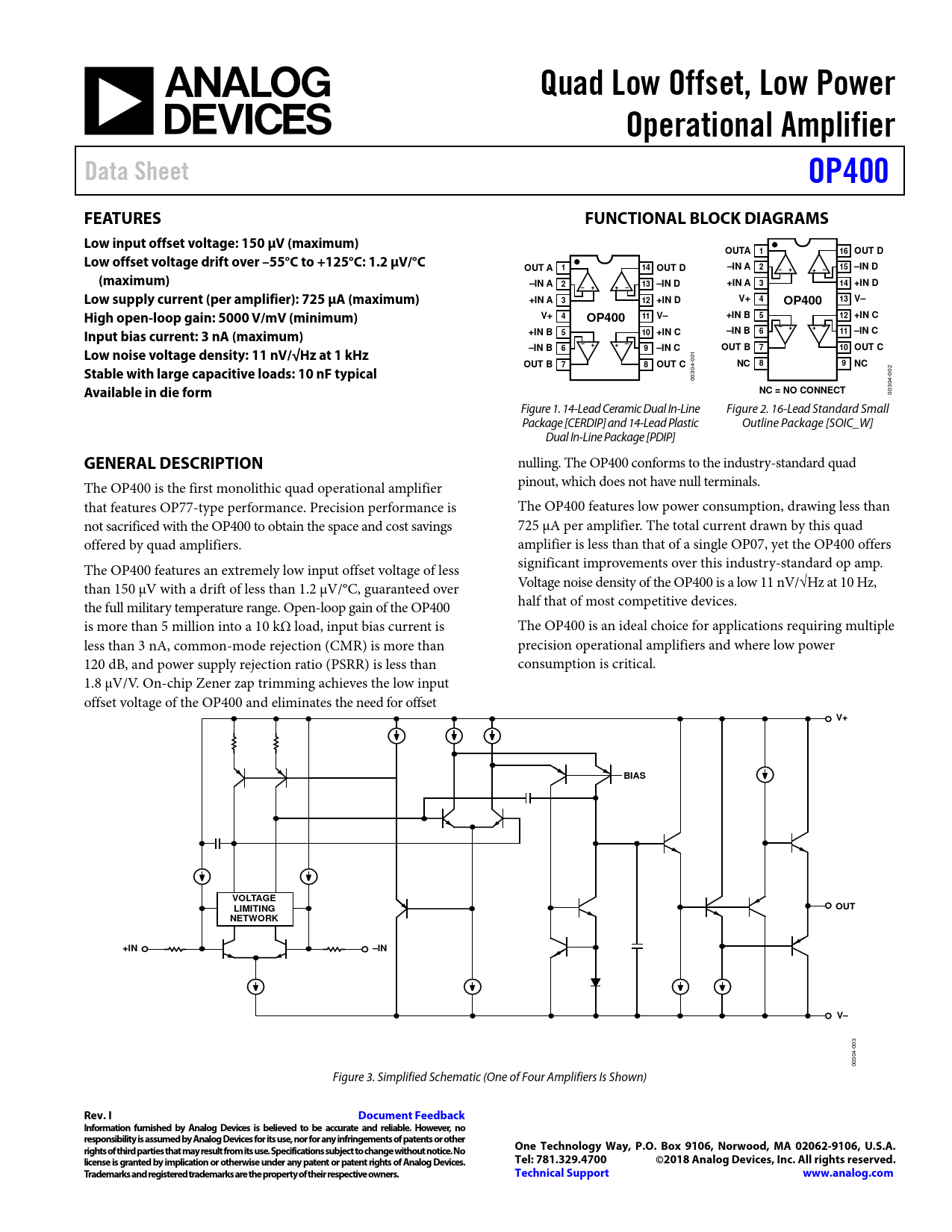

Quad Low Offset, Low Power Operational Amplifier Data Sheet OP400 FEATURES FUNCTIONAL BLOCK DIAGRAMS Low input offset voltage: 150 μV (maximum) OUTA 1 16 OUT D Low offset voltage drift over –55°C to +125°C: 1.2 μV/°C OUT A 1 14 OUT D –IN A 2 15 –IN D + + (maximum) –IN A 2 13 –IN D +IN A 3 14 +IN D + + Low supply current (per amplifier): 725 μA (maximum) +IN A 3 12 +IN D V+ 4 13 V– OP400 High open-loop gain: 5000 V/mV (minimum) V+ 4 11 V– OP400 +IN B 5 12 +IN C + + Input bias current: 3 nA (maximum) +IN B 5 10 +IN C –IN B 6 11 –IN C –IN B + + 6 9 –IN C OUT B 7 10 OUT C Low noise voltage density: 11 nV/√Hz at 1 kHz
01 0
OUT B 7 8 OUT C
4-
NC 8 9 NC
2
Stable with large capacitive loads: 10 nF typical
30 00 00 4- 30
Available in die form NC = NO CONNECT
00 Figure 1. 14-Lead Ceramic Dual In-Line Figure 2. 16-Lead Standard Small Package [CERDIP] and 14-Lead Plastic Outline Package [SOIC_W] Dual In-Line Package [PDIP]
GENERAL DESCRIPTION
nulling. The OP400 conforms to the industry-standard quad The OP400 is the first monolithic quad operational amplifier pinout, which does not have null terminals. that features OP77-type performance. Precision performance is The OP400 features low power consumption, drawing less than not sacrificed with the OP400 to obtain the space and cost savings 725 μA per amplifier. The total current drawn by this quad offered by quad amplifiers. amplifier is less than that of a single OP07, yet the OP400 offers The OP400 features an extremely low input offset voltage of less significant improvements over this industry-standard op amp. than 150 μV with a drift of less than 1.2 μV/°C, guaranteed over Voltage noise density of the OP400 is a low 11 nV/√Hz at 10 Hz, the full military temperature range. Open-loop gain of the OP400 half that of most competitive devices. is more than 5 million into a 10 kΩ load, input bias current is The OP400 is an ideal choice for applications requiring multiple less than 3 nA, common-mode rejection (CMR) is more than precision operational amplifiers and where low power 120 dB, and power supply rejection ratio (PSRR) is less than consumption is critical. 1.8 μV/V. On-chip Zener zap trimming achieves the low input offset voltage of the OP400 and eliminates the need for offset
V+ BIAS VOLTAGE LIMITING OUT NETWORK +IN –IN V–
003 0304- 0 Figure 3. Simplified Schematic (One of Four Amplifiers Is Shown)
Rev. I Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Functional Block Diagrams General Description Table of Contents Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Applications Information Dual Low Power Instrumentation Amplifier Bipolar Current Transmitter Differential Output Instrumentation Amplifier Multiple Output Tracking Voltage Reference Outline Dimensions Ordering Guide SMD Parts and Equivalents
