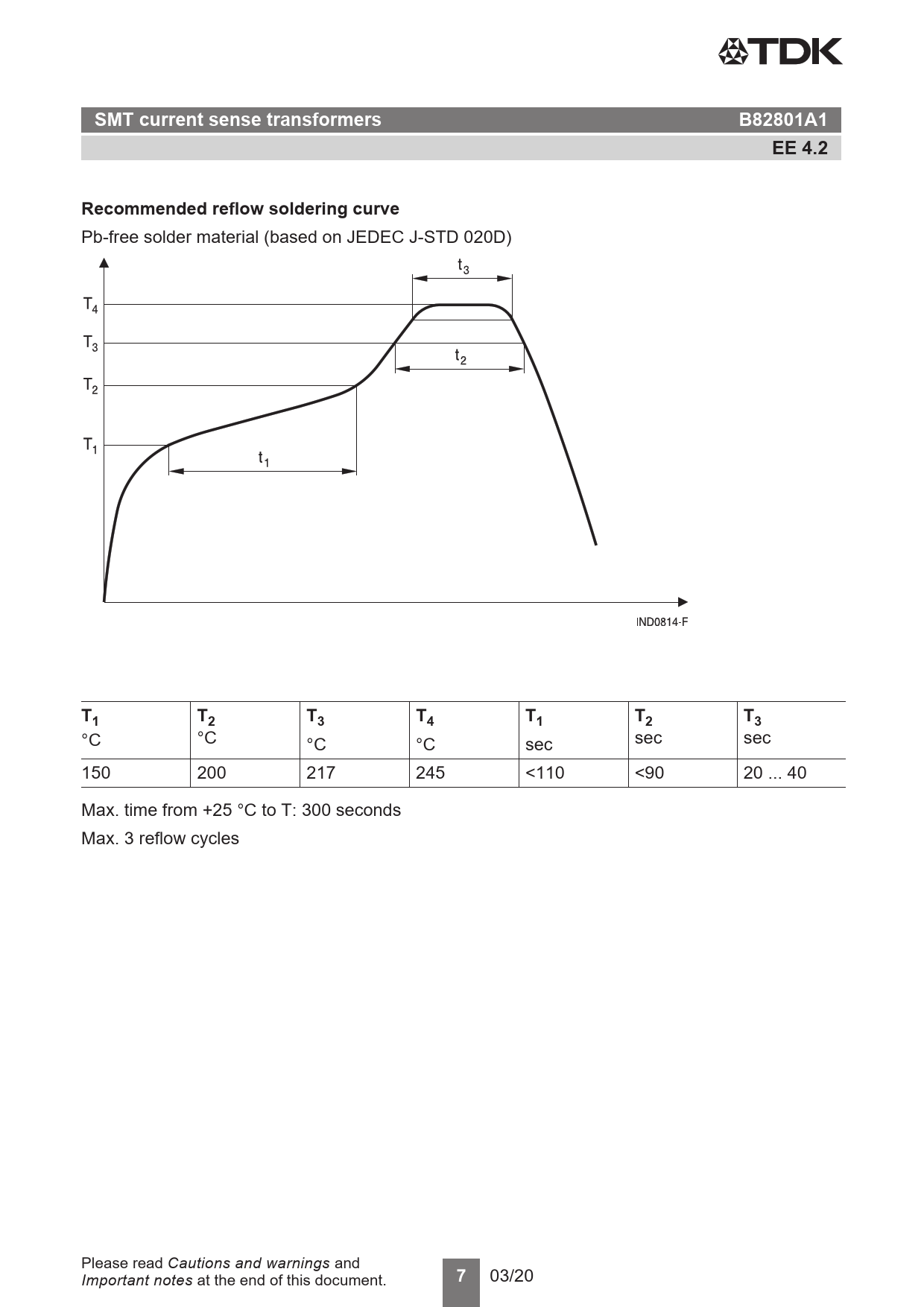

SMT current sense transformers. B82801A1. EE 4.2. Recommended reflow soldering curve
该数据表的模型线
文件文字版本
SMT current sense transformers B82801A1 EE 4.2 Recommended reflow soldering curve
Pb-free solder material (based on JEDEC J-STD 020D)
T1 T2 T3 T4 T1 T2 T3
°C °C sec sec °C °C sec 150 200 217 245 <110 <90 20 ... 40 Max. time from +25 °C to T: 300 seconds Max. 3 reflow cycles Please read Cautions and warnings and
7
03/20 Important notes at the end of this document.
