Datasheet LTC2050, LTC2050HV (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Zero-Drift Operational Amplifiers in SOT-23 |
| 页数 / 页 | 16 / 9 — TEST CIRCUITS. Electrical Characteristics Test Circuit. DC−10Hz Noise … |
| 修订版 | F |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |

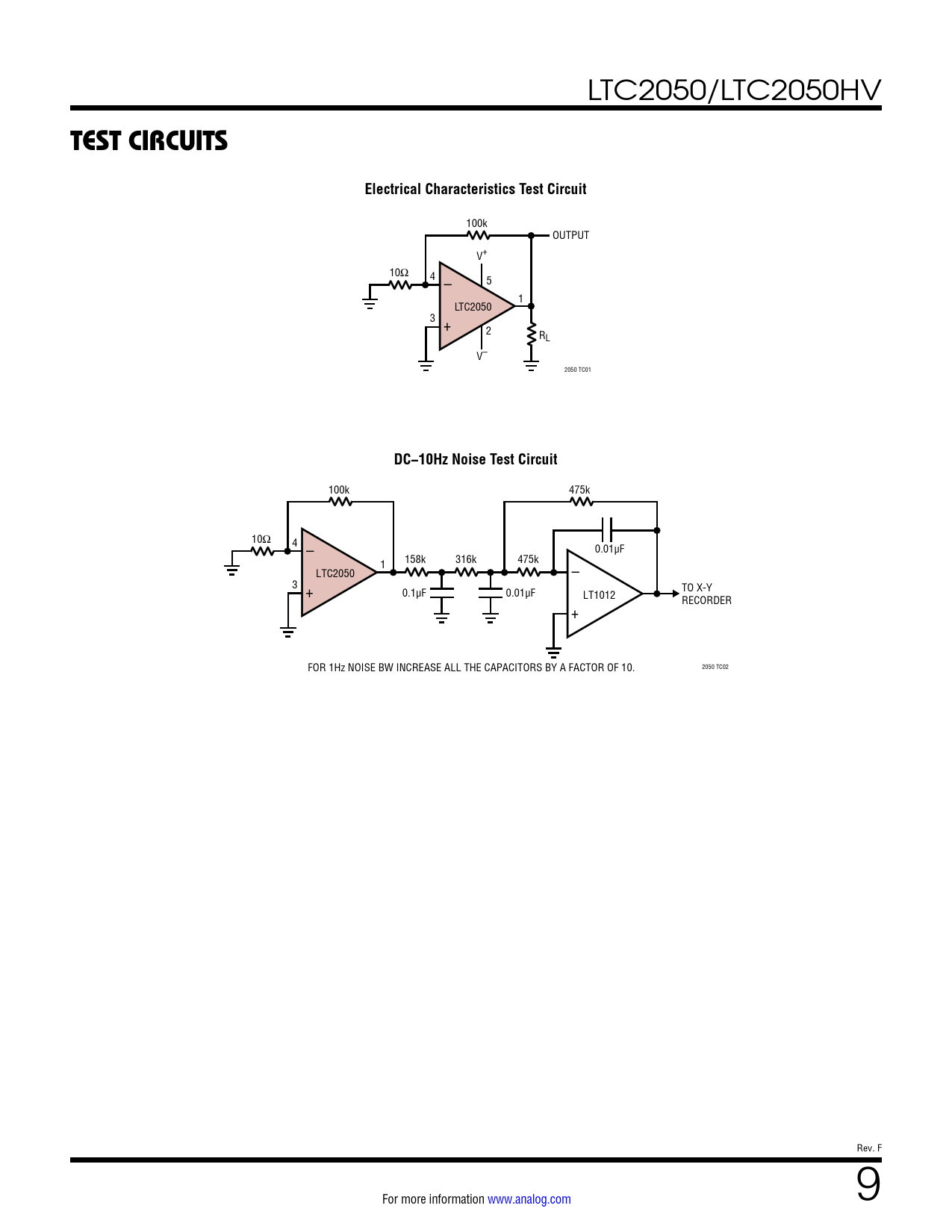

TEST CIRCUITS. Electrical Characteristics Test Circuit. DC−10Hz Noise Test Circuit
该数据表的模型线
- LTC2050CS5#TRMPBF LTC2050CS5#TRPBF LTC2050CS6#TRMPBF LTC2050CS6#TRPBF LTC2050CS8#PBF LTC2050CS8#TRPBF LTC2050HS5#TRMPBF LTC2050HS5#TRPBF LTC2050HS6#TRMPBF LTC2050HS6#TRPBF LTC2050IS5#TRMPBF LTC2050IS5#TRPBF LTC2050IS6#TRMPBF LTC2050IS6#TRPBF LTC2050IS8#PBF LTC2050IS8#TRPBF
- LTC2050HVCS5#TRMPBF LTC2050HVCS5#TRPBF LTC2050HVCS6#TRMPBF LTC2050HVCS6#TRPBF LTC2050HVCS8#PBF LTC2050HVCS8#TRPBF LTC2050HVHS5#TRMPBF LTC2050HVHS5#TRPBF LTC2050HVHS6#TRMPBF LTC2050HVHS6#TRPBF LTC2050HVIS5#TRMPBF LTC2050HVIS5#TRPBF LTC2050HVIS6#TRMPBF LTC2050HVIS6#TRPBF LTC2050HVIS8#PBF LTC2050HVIS8#TRPBF LTC2050HVMPS6#TRMPBF LTC2050HVMPS6#TRPBF LTC2050HVMPS6#WTRMPBF LTC2050HVMPS6#WTRPBF
文件文字版本
LTC2050/LTC2050HV
TEST CIRCUITS Electrical Characteristics Test Circuit
100k OUTPUT V+ 10Ω 4 – 5 1 LTC2050 3 + 2 RL V– 2050 TC01
DC−10Hz Noise Test Circuit
100k 475k 10Ω 4 – 0.01µF 1 158k 316k 475k LTC2050 – 3 + 0.1µF 0.01µF TO X-Y LT1012 RECORDER + 2050 TC02 FOR 1Hz NOISE BW INCREASE ALL THE CAPACITORS BY A FACTOR OF 10. Rev. F For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
