Datasheet LTC2050, LTC2050HV (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Zero-Drift Operational Amplifiers in SOT-23 |
| 页数 / 页 | 16 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| 修订版 | F |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |

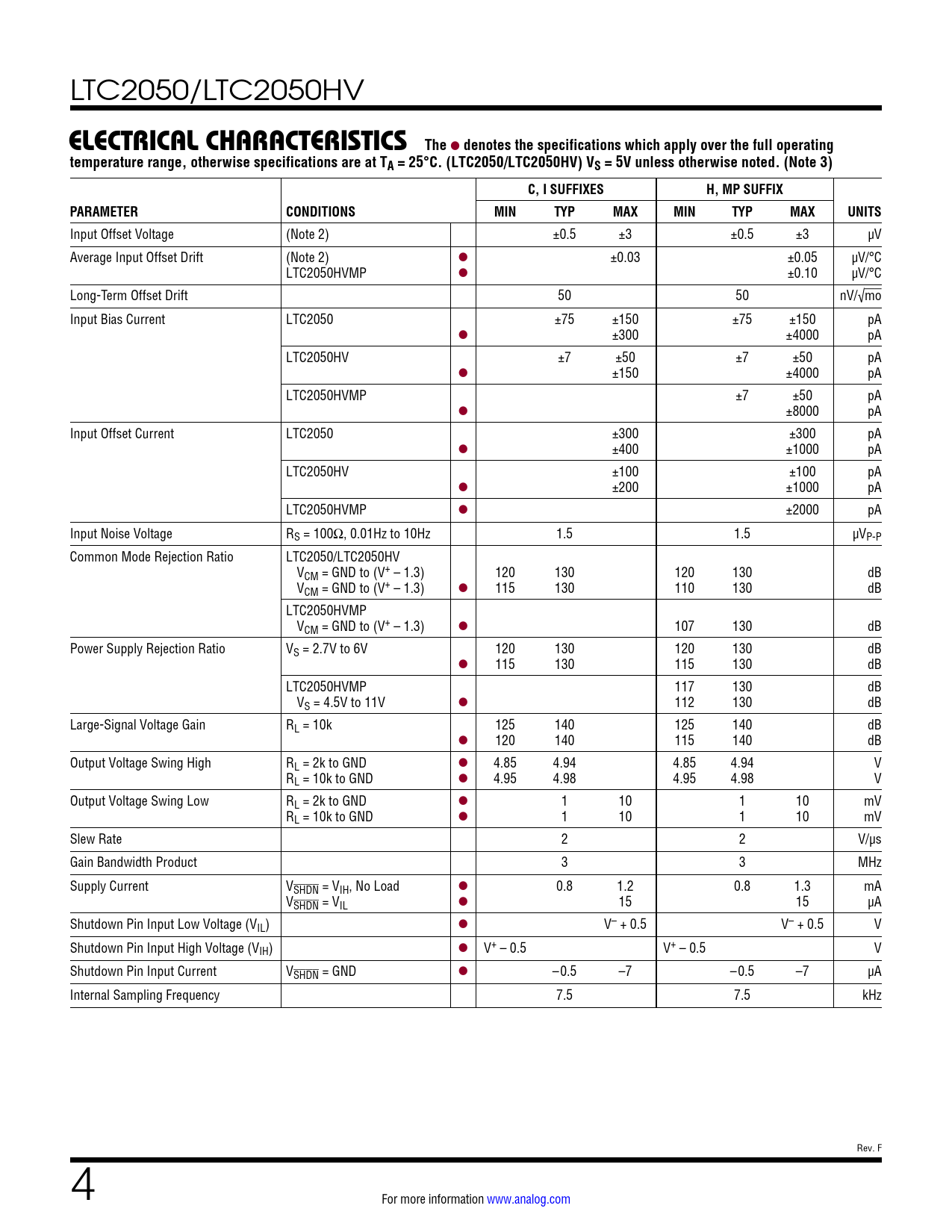

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
该数据表的模型线
- LTC2050CS5#TRMPBF LTC2050CS5#TRPBF LTC2050CS6#TRMPBF LTC2050CS6#TRPBF LTC2050CS8#PBF LTC2050CS8#TRPBF LTC2050HS5#TRMPBF LTC2050HS5#TRPBF LTC2050HS6#TRMPBF LTC2050HS6#TRPBF LTC2050IS5#TRMPBF LTC2050IS5#TRPBF LTC2050IS6#TRMPBF LTC2050IS6#TRPBF LTC2050IS8#PBF LTC2050IS8#TRPBF
- LTC2050HVCS5#TRMPBF LTC2050HVCS5#TRPBF LTC2050HVCS6#TRMPBF LTC2050HVCS6#TRPBF LTC2050HVCS8#PBF LTC2050HVCS8#TRPBF LTC2050HVHS5#TRMPBF LTC2050HVHS5#TRPBF LTC2050HVHS6#TRMPBF LTC2050HVHS6#TRPBF LTC2050HVIS5#TRMPBF LTC2050HVIS5#TRPBF LTC2050HVIS6#TRMPBF LTC2050HVIS6#TRPBF LTC2050HVIS8#PBF LTC2050HVIS8#TRPBF LTC2050HVMPS6#TRMPBF LTC2050HVMPS6#TRPBF LTC2050HVMPS6#WTRMPBF LTC2050HVMPS6#WTRPBF
文件文字版本
LTC2050/LTC2050HV
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (LTC2050/LTC2050HV) VS = 5V unless otherwise noted. (Note 3) C, I SUFFIXES H, MP SUFFIX PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage (Note 2) ±0.5 ±3 ±0.5 ±3 µV Average Input Offset Drift (Note 2) l ±0.03 ±0.05 µV/°C LTC2050HVMP l ±0.10 µV/°C Long-Term Offset Drift 50 50 nV/√mo Input Bias Current LTC2050 ±75 ±150 ±75 ±150 pA l ±300 ±4000 pA LTC2050HV ±7 ±50 ±7 ±50 pA l ±150 ±4000 pA LTC2050HVMP ±7 ±50 pA l ±8000 pA Input Offset Current LTC2050 ±300 ±300 pA l ±400 ±1000 pA LTC2050HV ±100 ±100 pA l ±200 ±1000 pA LTC2050HVMP l ±2000 pA Input Noise Voltage RS = 100Ω, 0.01Hz to 10Hz 1.5 1.5 µVP-P Common Mode Rejection Ratio LTC2050/LTC2050HV VCM = GND to (V+ – 1.3) 120 130 120 130 dB VCM = GND to (V+ – 1.3) l 115 130 110 130 dB LTC2050HVMP VCM = GND to (V+ – 1.3) l 107 130 dB Power Supply Rejection Ratio VS = 2.7V to 6V 120 130 120 130 dB l 115 130 115 130 dB LTC2050HVMP 117 130 dB VS = 4.5V to 11V l 112 130 dB Large-Signal Voltage Gain RL = 10k 125 140 125 140 dB l 120 140 115 140 dB Output Voltage Swing High RL = 2k to GND l 4.85 4.94 4.85 4.94 V RL = 10k to GND l 4.95 4.98 4.95 4.98 V Output Voltage Swing Low RL = 2k to GND l 1 10 1 10 mV RL = 10k to GND l 1 10 1 10 mV Slew Rate 2 2 V/µs Gain Bandwidth Product 3 3 MHz Supply Current VSHDN = VIH, No Load l 0.8 1.2 0.8 1.3 mA VSHDN = VIL l 15 15 µA Shutdown Pin Input Low Voltage (VIL) l V– + 0.5 V– + 0.5 V Shutdown Pin Input High Voltage (VIH) l V+ – 0.5 V+ – 0.5 V Shutdown Pin Input Current VSHDN = GND l –0.5 –7 –0.5 –7 µA Internal Sampling Frequency 7.5 7.5 kHz Rev. F 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
